P0715 A/T Input Speed Sensor Circuit - Open or Short(GND):_:General Information

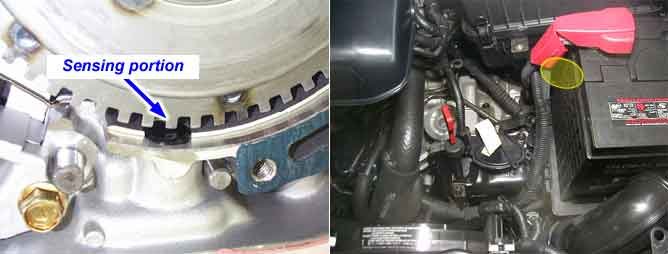

Component Location





General Description

The input(turbine) speed sensor outputs pulse-signals according to the revolutions of the input shaft of the transmission. The PCM/TCM determines the input shaft speed by counting the frequency of the pulses. This value is mainly used to control the optimum fluid pressure during shifting.

DTC Description

The PCM/TCM sets this code if an output pulse-signal is not detected, from the input speed sensor, when the vehicle is running faster than 30 km/h(18.64MPH). The Fail-Safe function will be set by the TCM if this code is detected.

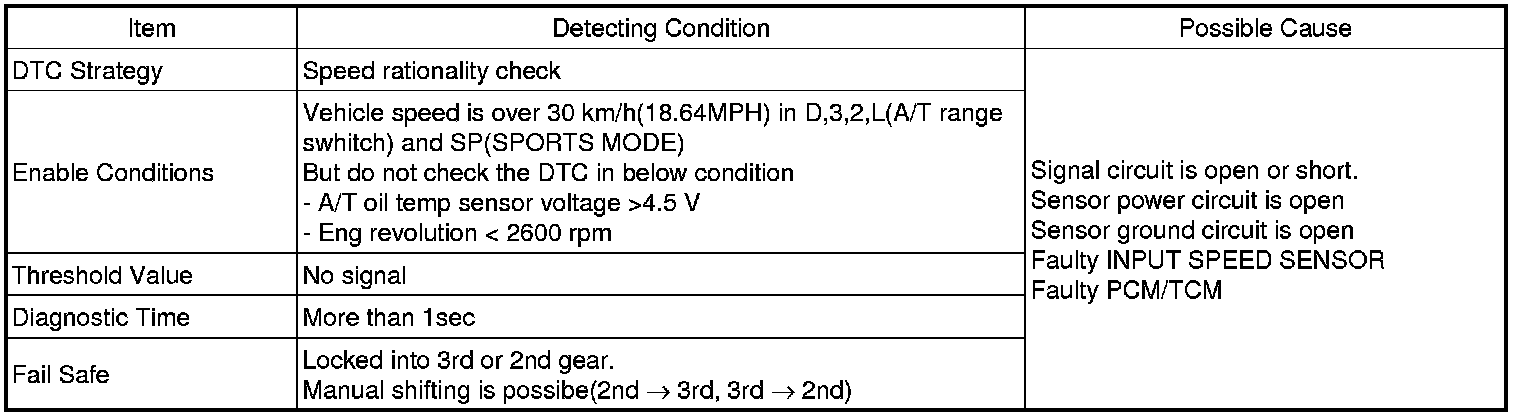

DTC Detecting Condition





Specification

Input shaft & Output shaft speed sensor
Type : Hall sensor
Current consumption : 22mA(MAX)
X sensor body and sensor connector have been unified as one.

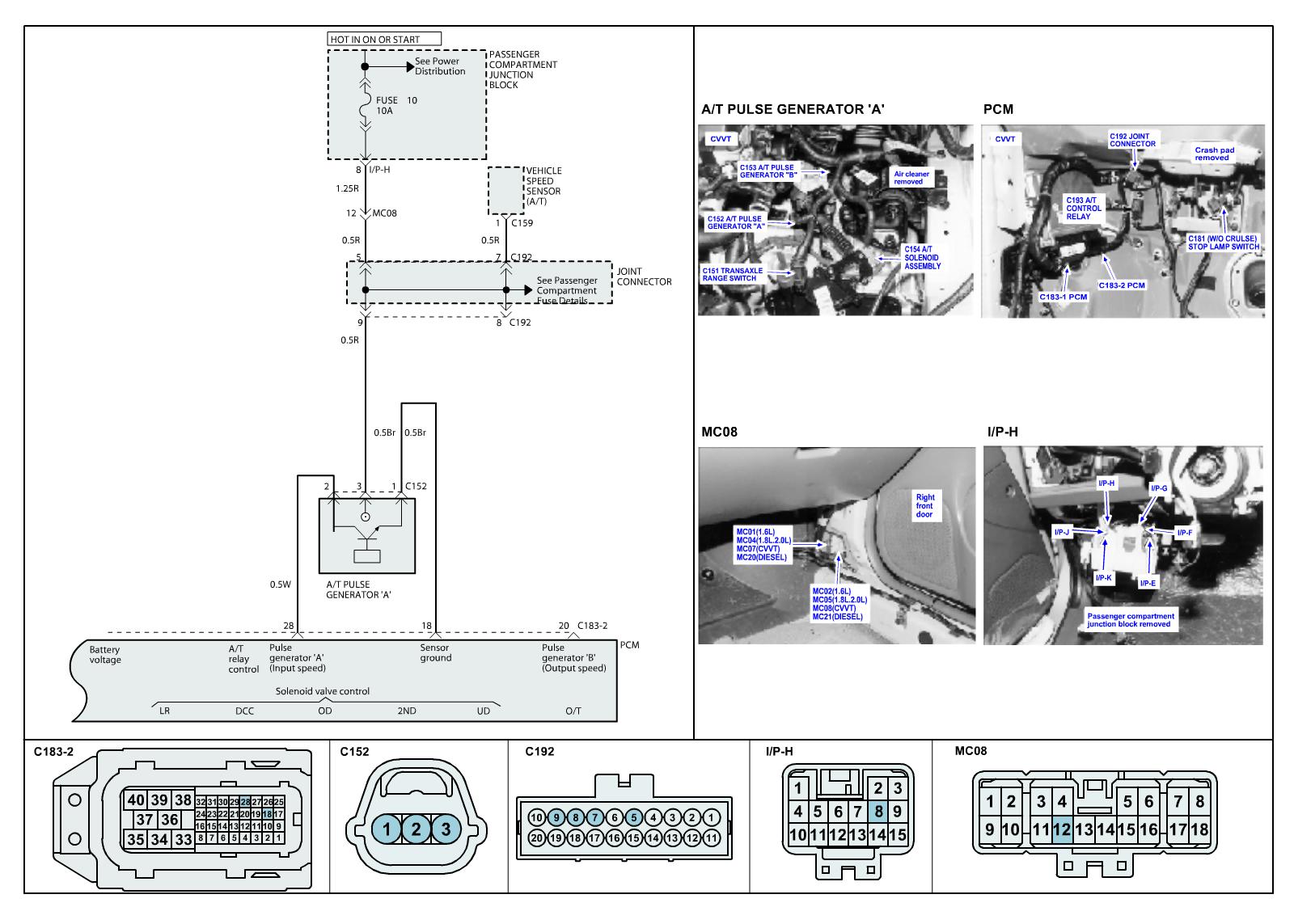

Schematic Diagram





Signal Waveform
