P1602 CAN Communication BUS with TCU (Timeout) - General Information

Component Location







General Description

A communication line exists between the Engine Control Module(ECM) and the Transaxle Control Module(TCM). The communication is through a Control Area Network(CAN). Without CAN communication, an independent pin and wiring is needed to receive a sensor information from a ECM. The more information to be communicated, the more wiring is required. In case of CAN communication type, all the information need to be communicated among control modules such as ECM and TCM use CAN lines.

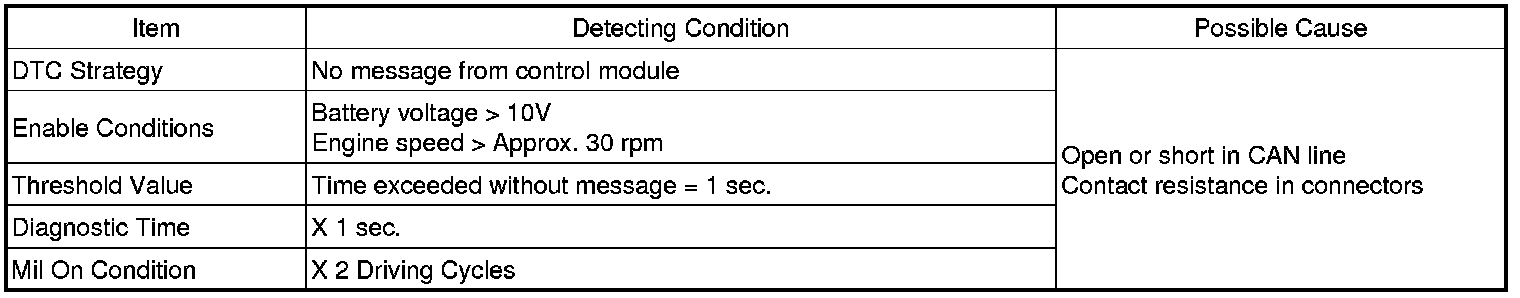

DTC Detecting Condition
