P2626 HO2S Pumping Current Trim Circuit/Open (Bank 1 / Sensor 1) - General Information

Component Location





General Description

The linear O2 sensor is mounted on the front side of the Catalytic Converter (warm-up catalytic converter) or in the front exhaust pipe. It detects a wide range of air/fuel ratios in the exhaust gas from the rich to lean regions. This linear O2 sensor produces a current that corresponds to a specific air/fuel ratio. The PCM monitors this signal and determines whether the air/fuel mixture is rich or lean. The PCM constantly monitors the linear O2 sensor and increases or decreases the fuel injection duration using this signal. This is called closed-loop fuel control operation.

DTC Description

The PCM monitors front HO2S tip temperature and signal at the same time to check open ciurit of Pumping Current Trim Circuit (PCM PIN No. 41). The PCM sets DTC P2626 if front O2 tip temerature is lower than the predetermined threshold and if front HO2S signal after oscillator off is lower than the predetermined threshold.
If the same error code is set in the next driving cycle, the PCM illuminates the MIL.

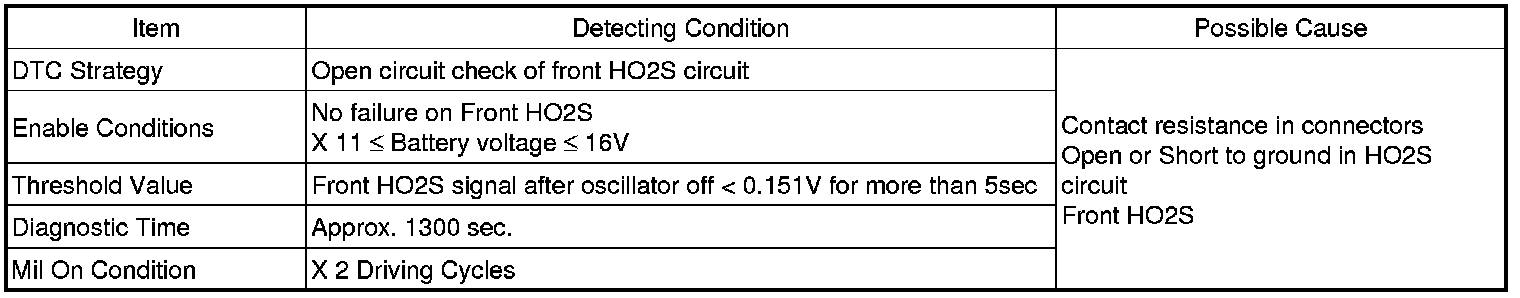

DTC Detecting Condition





Schematic Diagram





Signal Waveform
