ETACS (Electronic Time & Alarm Control System)

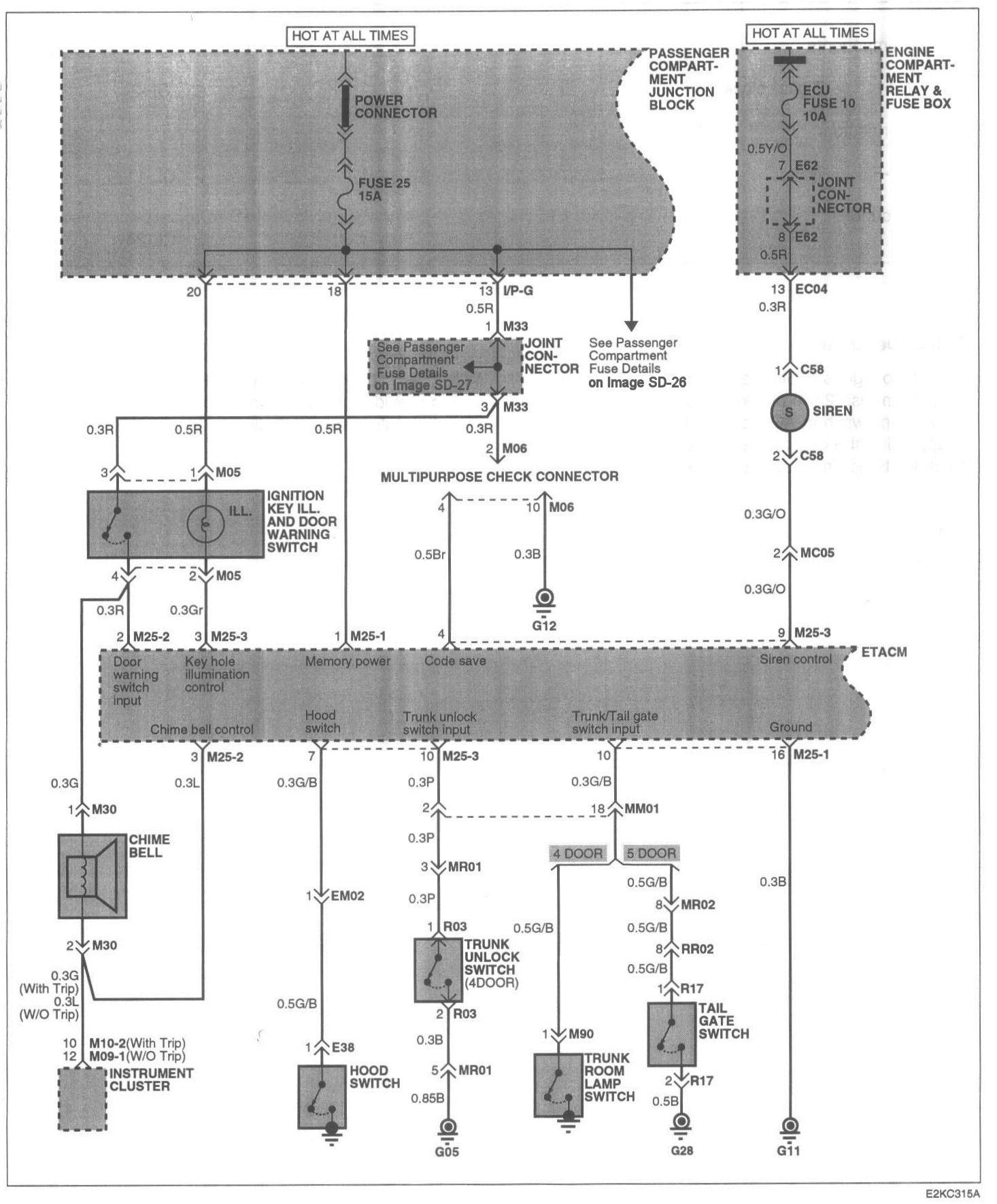

Image SD-82 ETACS (Electronic Time & Alarm Control System) (1):

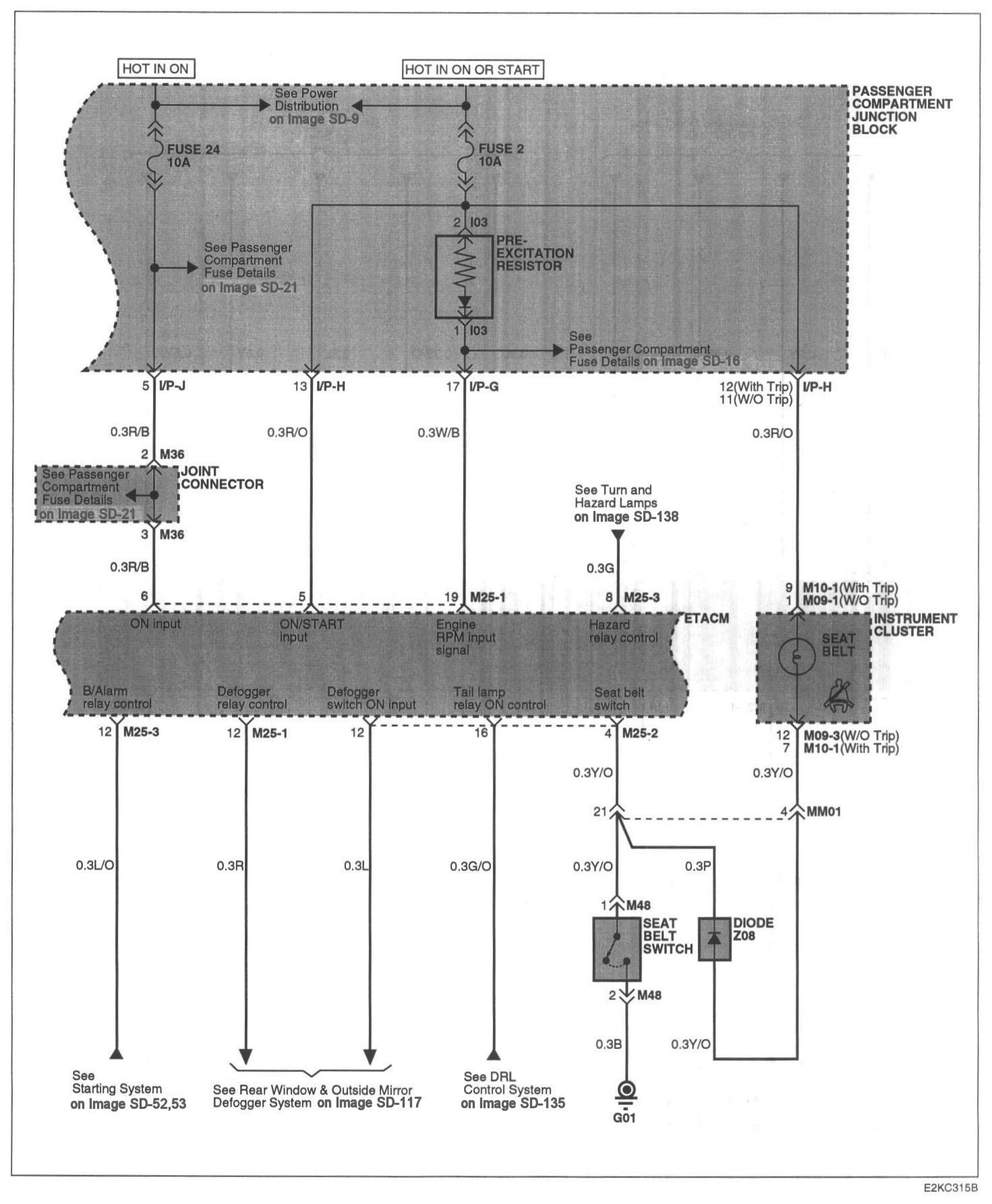

Image SD-83 ETACS (Electronic Time & Alarm Control System) (2):

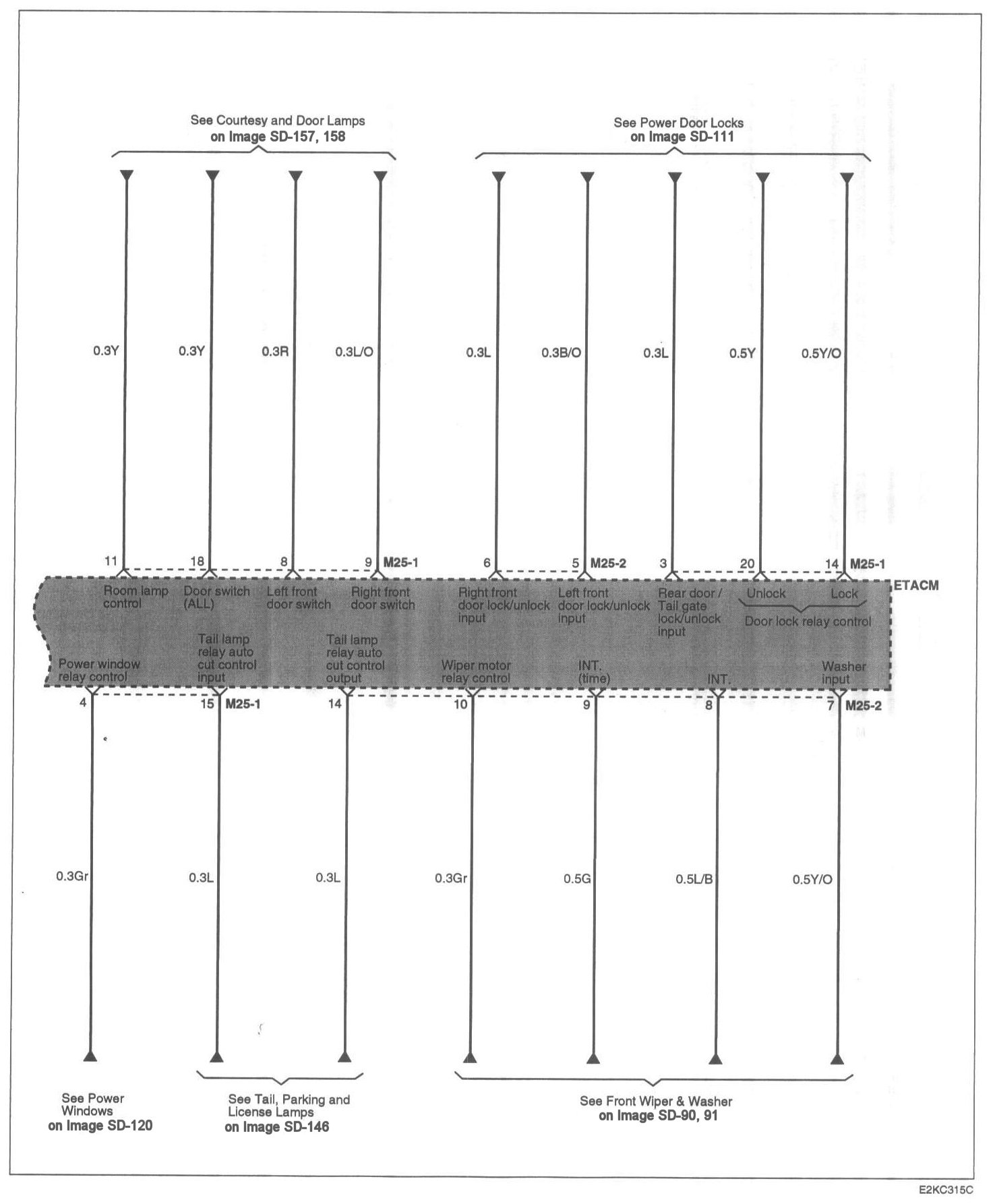

Image SD-84 ETACS (Electronic Time & Alarm Control System) (3):
