ETACS (Electronic Time and Alarm Control System)
ETACS (Electronic Time and Alarm Control System)

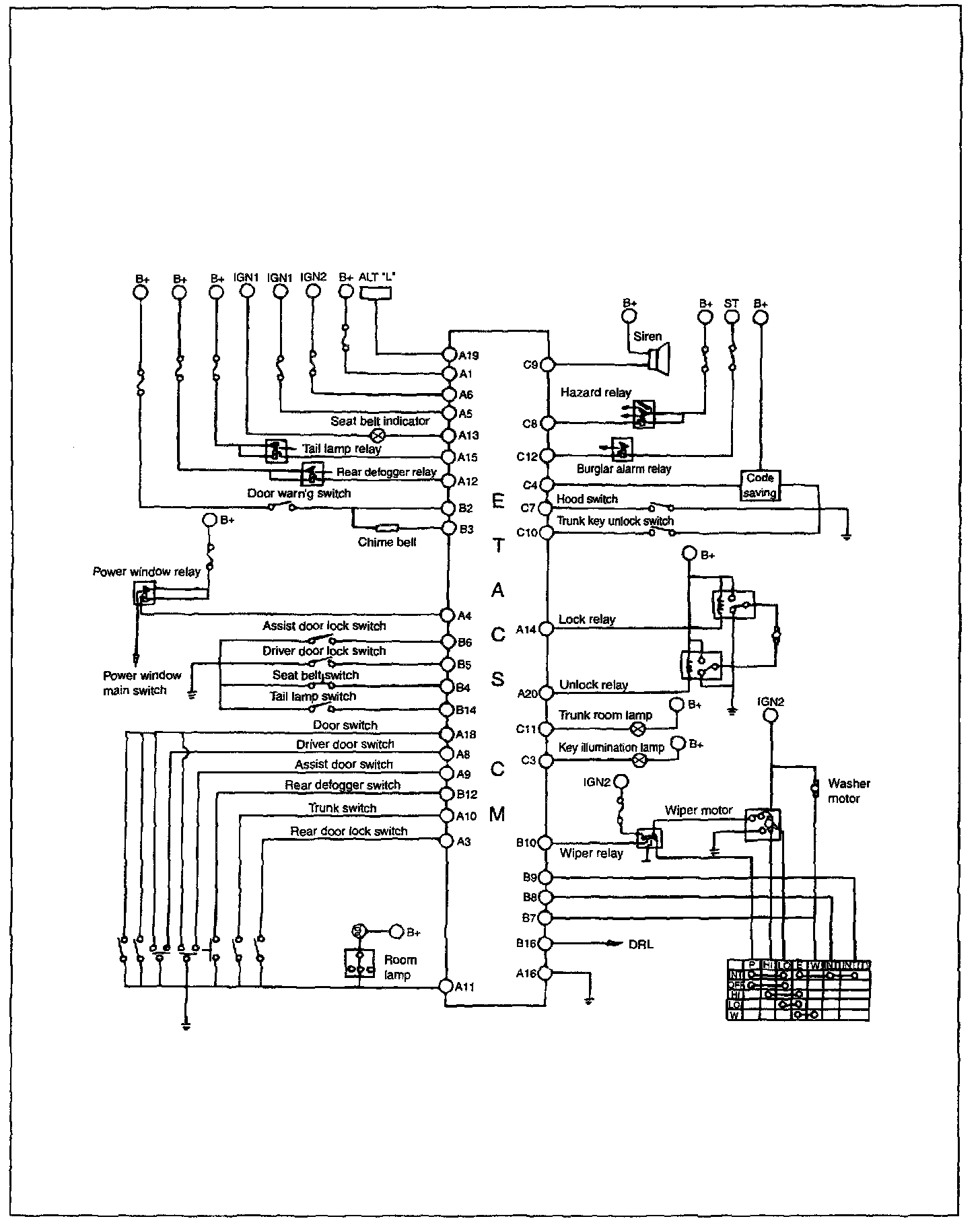

ETACS Circuit Diagram:
