Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

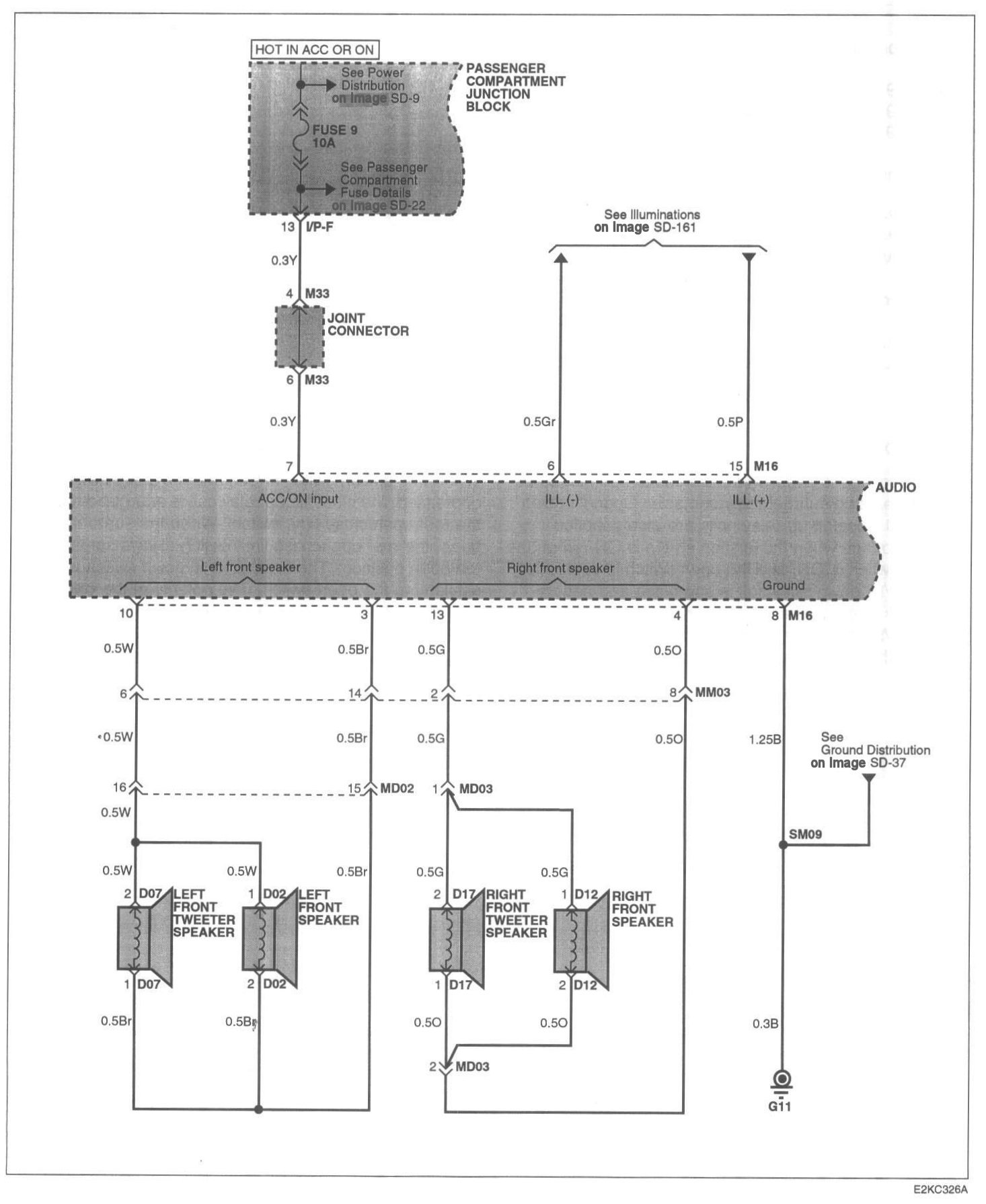

Image SD-126 Audio System (1):

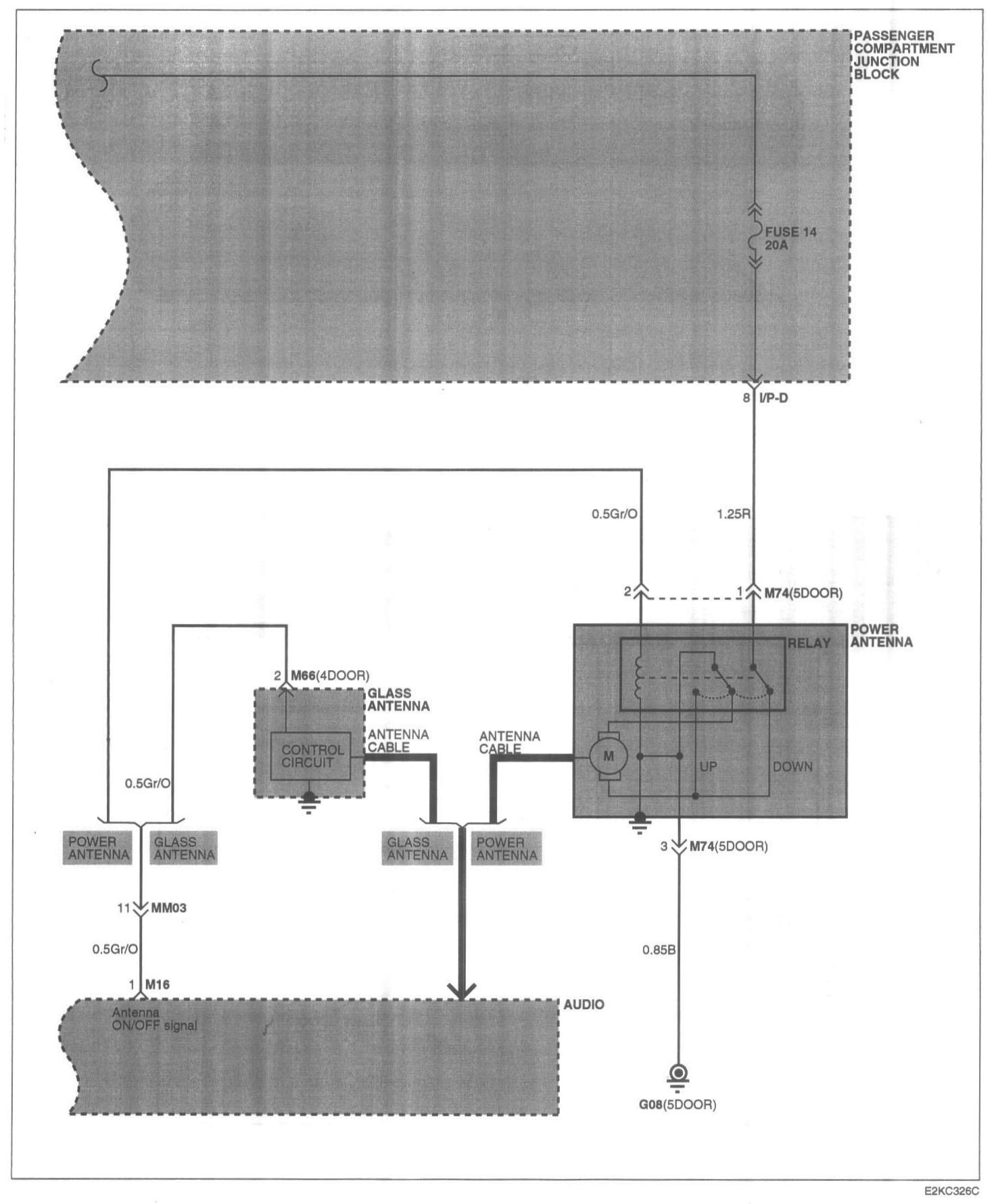

Image SD-127 Audio System (2):

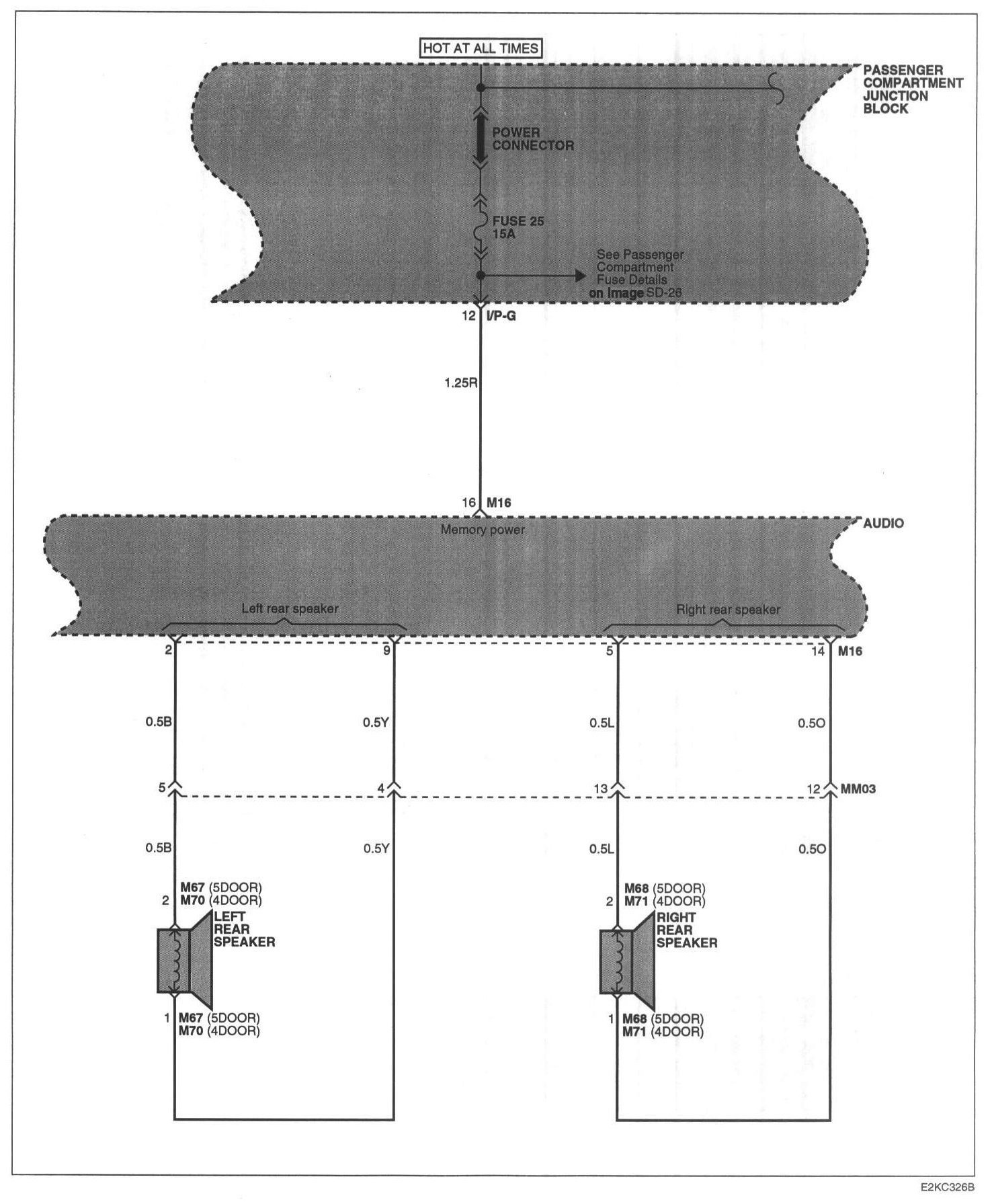

Image SD-128 Audio System (3):
