Speaker: Service and Repair

FRONT SPEAKER

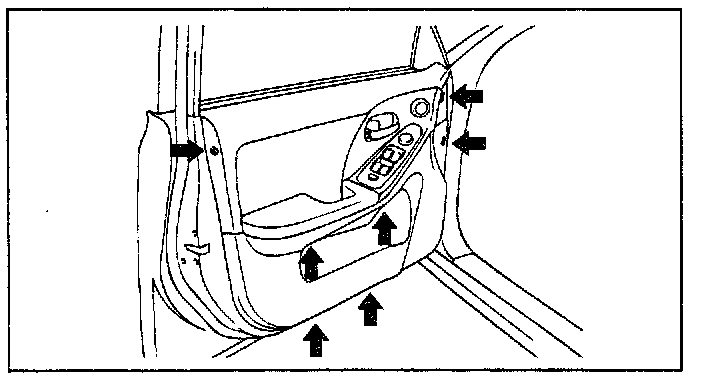

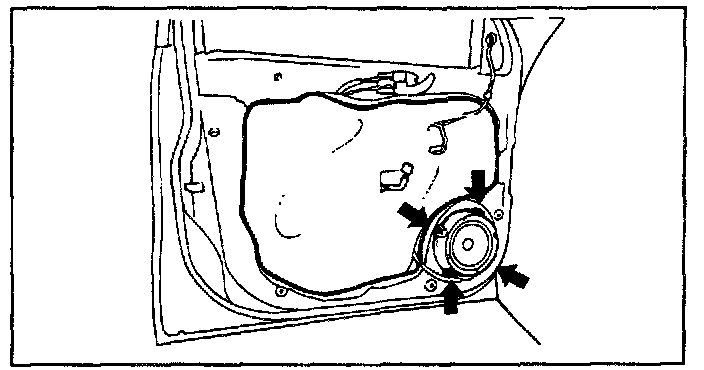

1. Remove the front door trim panel and remove the front speaker.
2. Installation is the reverse of removal.

REAR SPEAKER
1. Remove the rear seat.

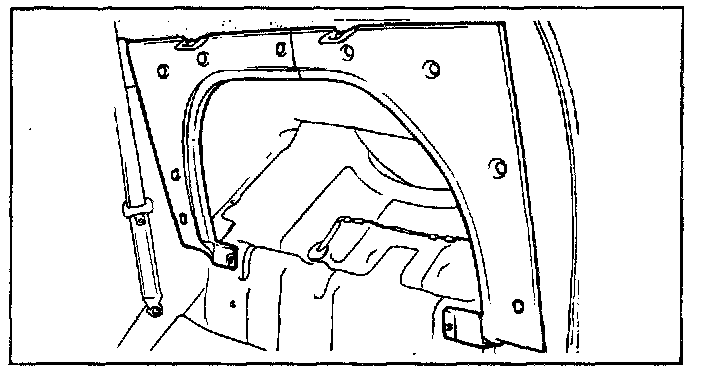

2. Remove the partition trim.

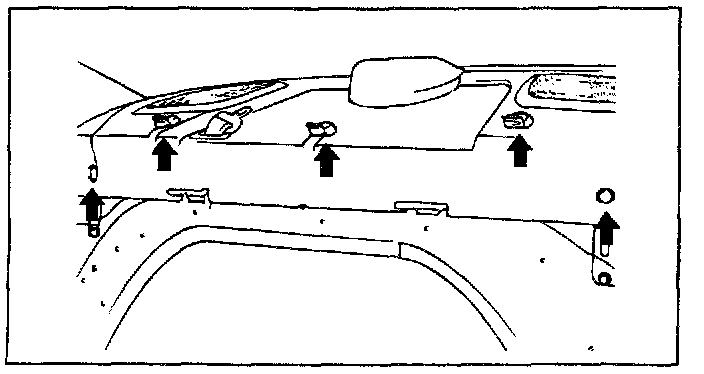

3. Remove the plugs and bolts holding the rear package tray trim.

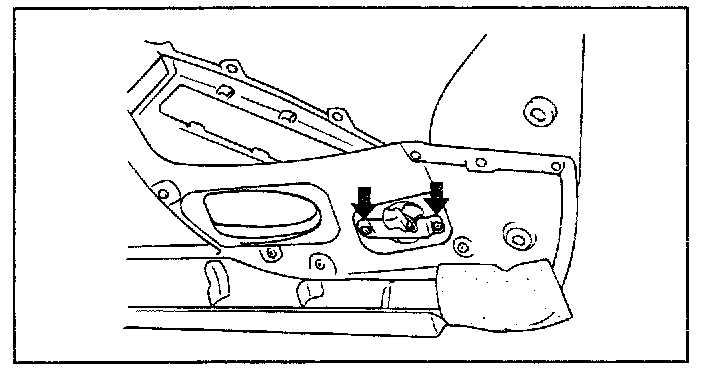

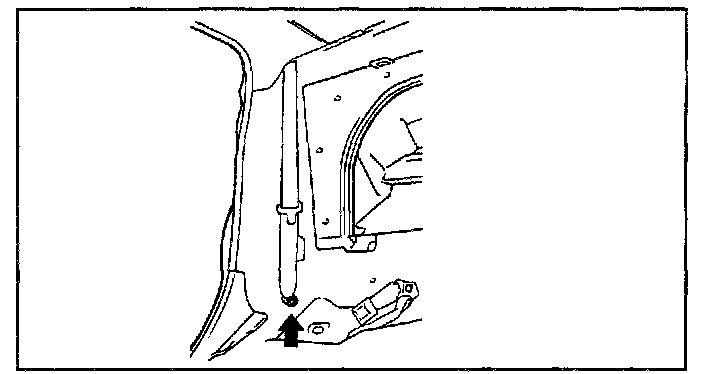

4. Remove the bolt holding the rear seat belt lower anchor.

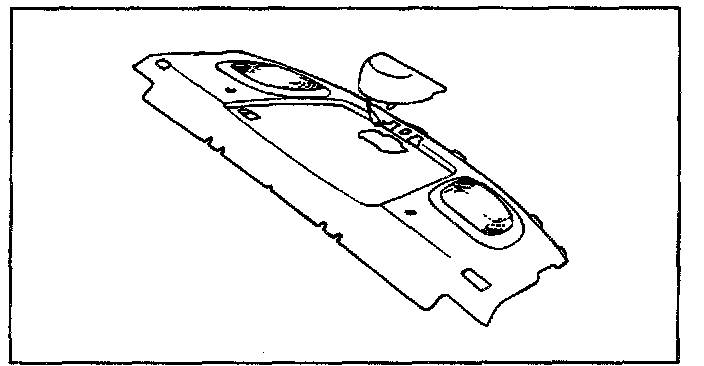

5. Remove the rear package tray trim and disconnect the connectors.

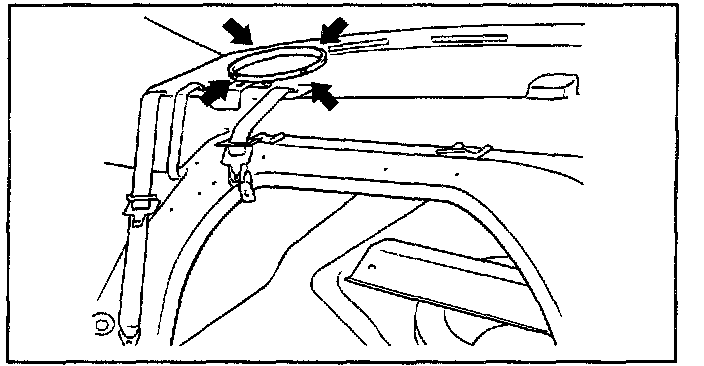

6. Remove the rear speaker.
7. Installation is the reverse of removal.

TWEETER SPEAKER




1. Remove the trim panel from the front door.




2. Disconnect the connectors and remove the tweeter speaker.
3. Installation is the reverse of removal.
