Rear Bumper: Service and Repair

REAR BUMPER

REMOVAL AND INSTALLATION

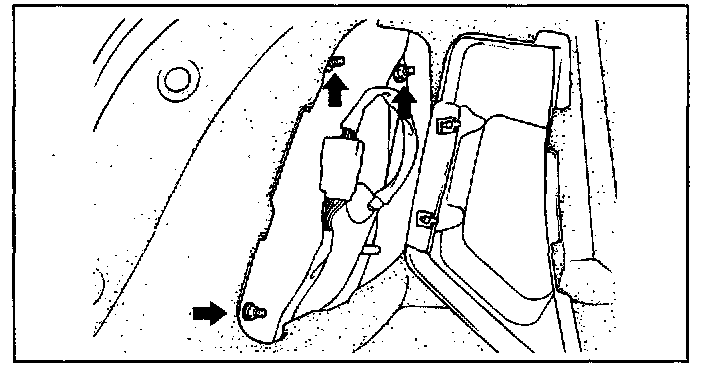

1. Remove the nuts holding the rear combination lamps and then remove the rear combination lamps.

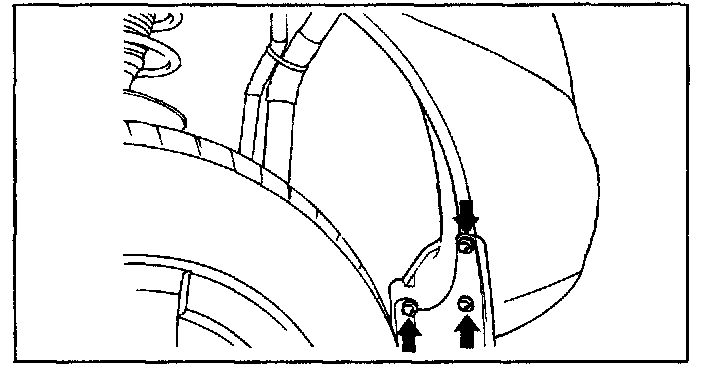

2. Remove the rear wheel guards.

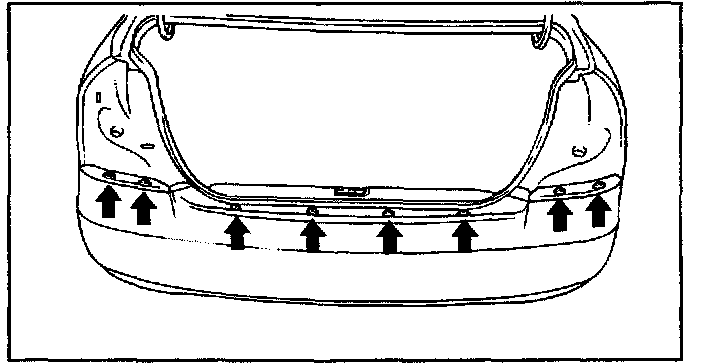

3. Remove the tapping screws and retainers holding the rear bumper cover.

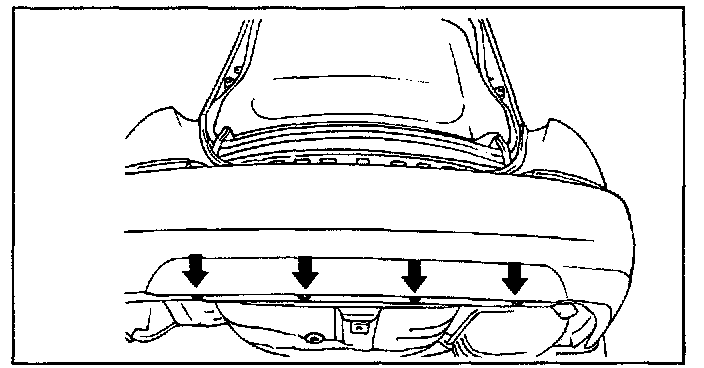

4. Raise the vehicle, then remove the screws holding the bumper cover.
Remove the rear bumper cover and the energy absorber.

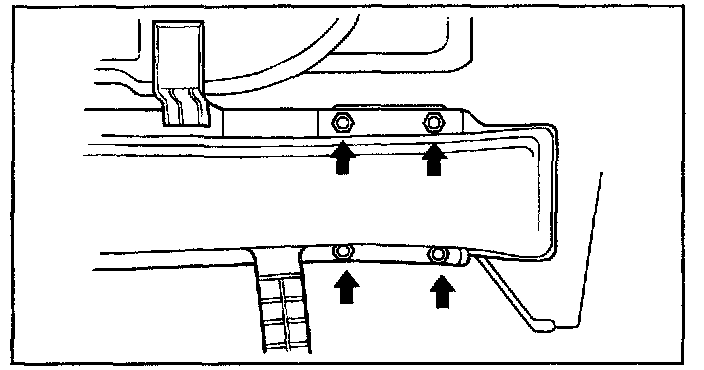

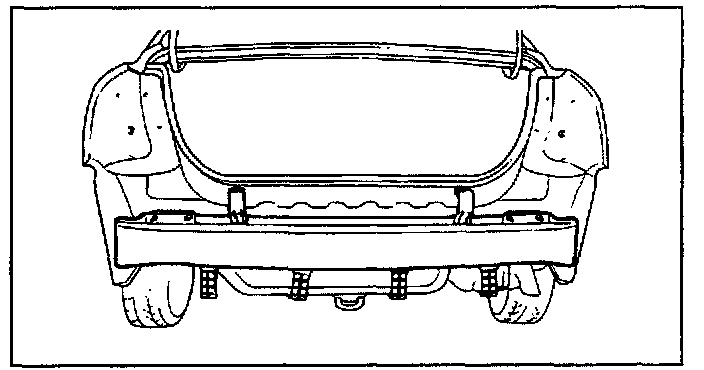

5. Remove the bumper rail.
6. Installation is the reverse of removal.
