Electrical Diagrams

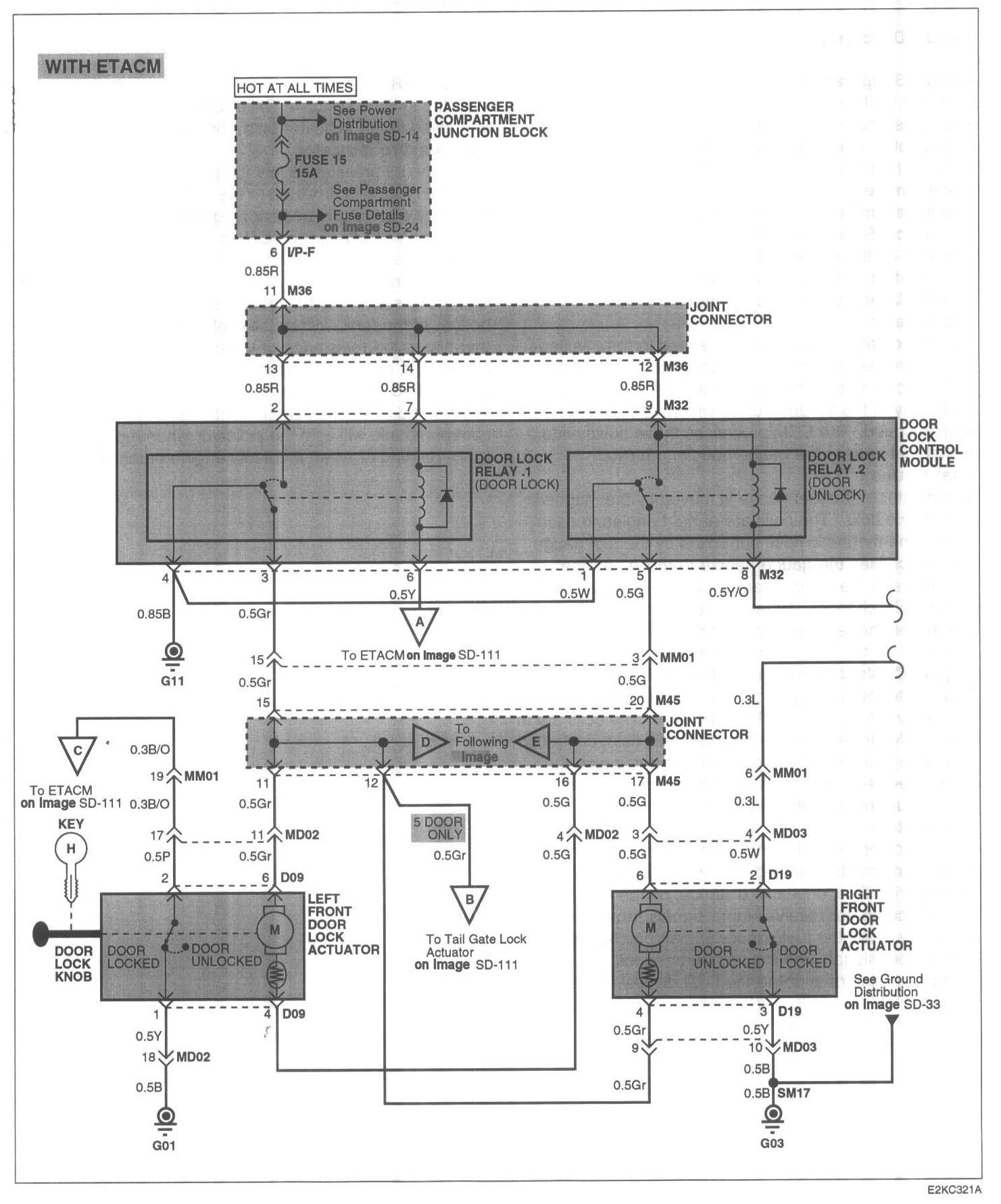

Image SD-110 Power Door Locks (1):

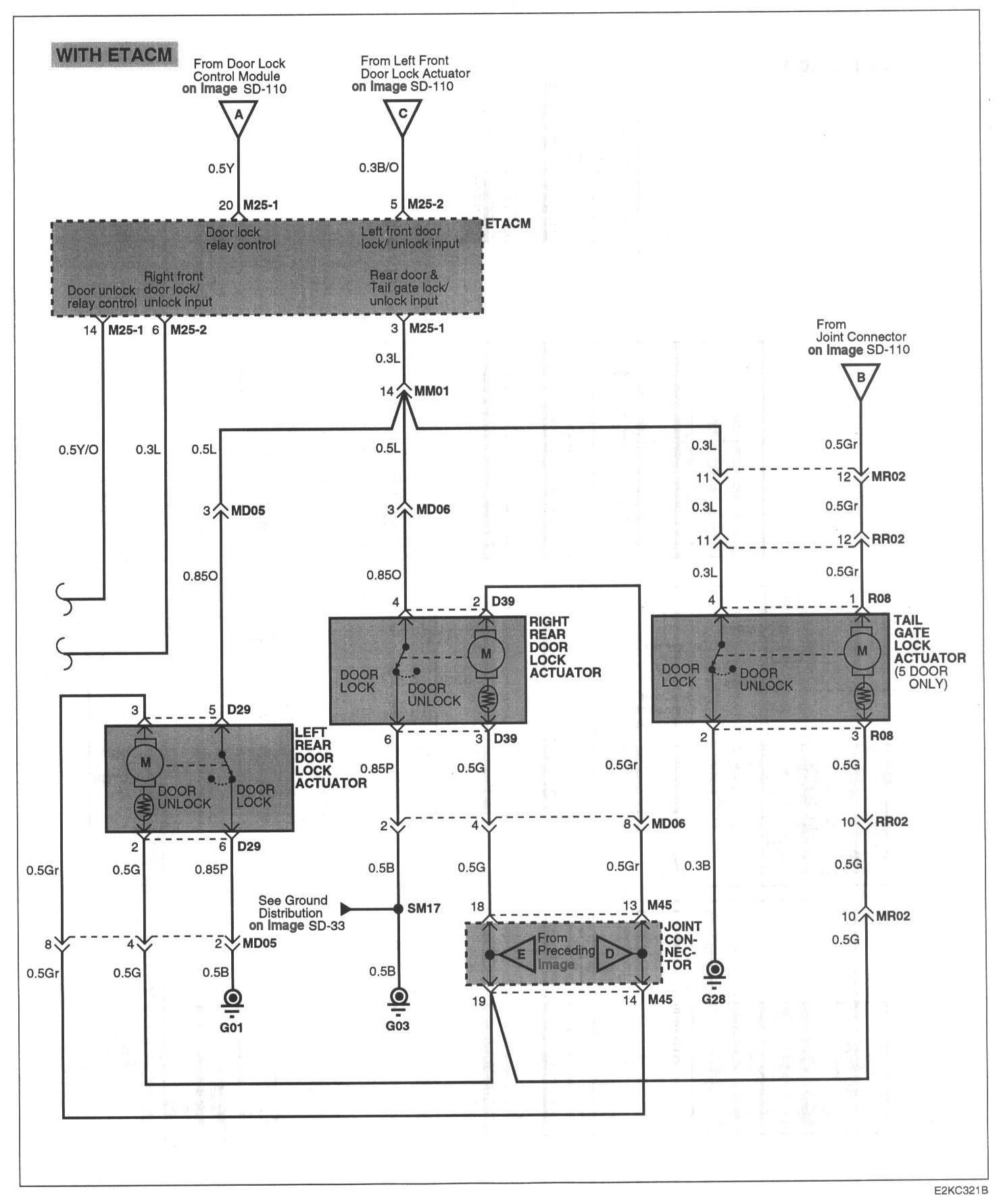

Image SD-111 Power Door Locks (2):

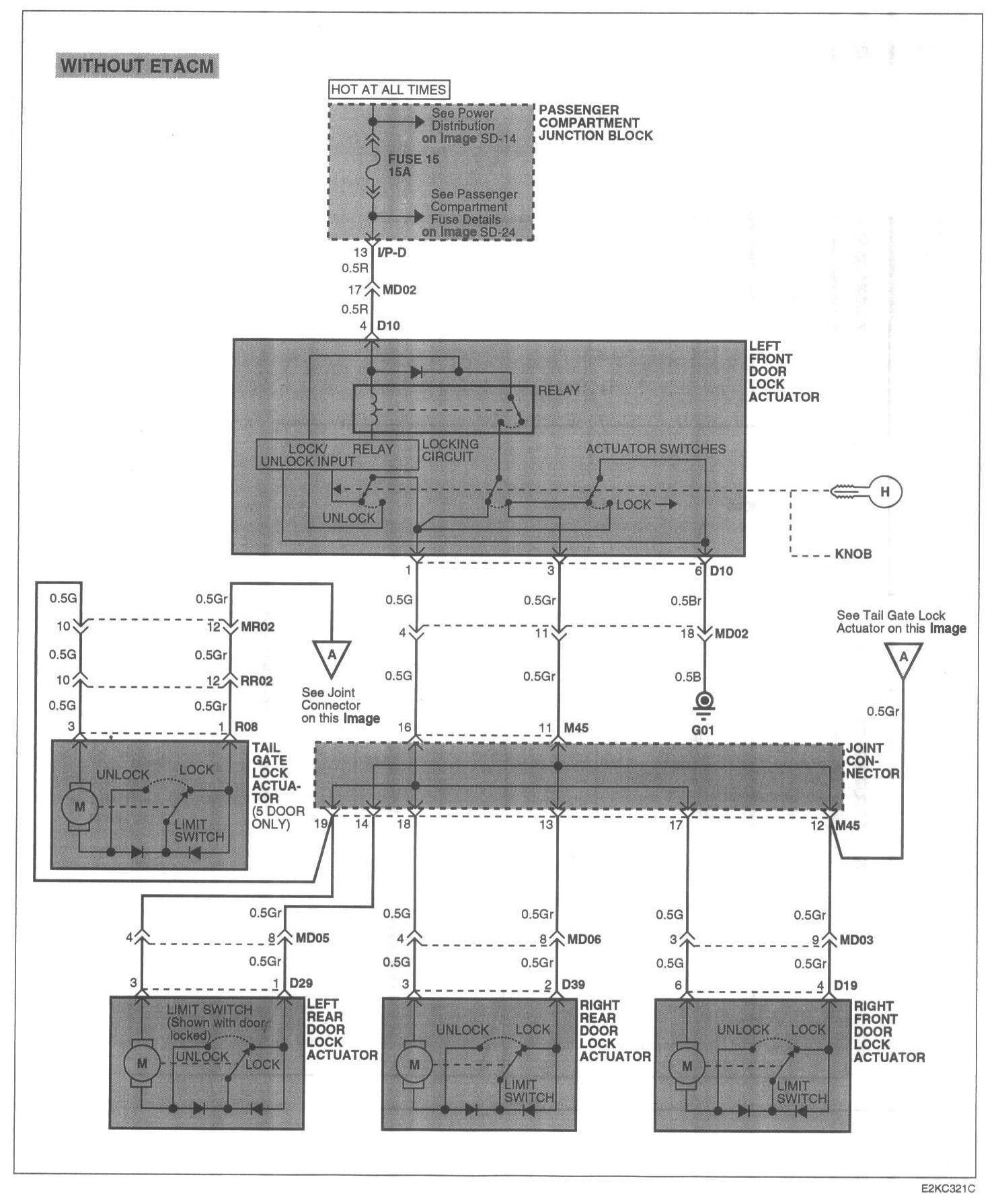

Image SD-112 Power Door Locks (3):
