Antilock Brake System Diagrams

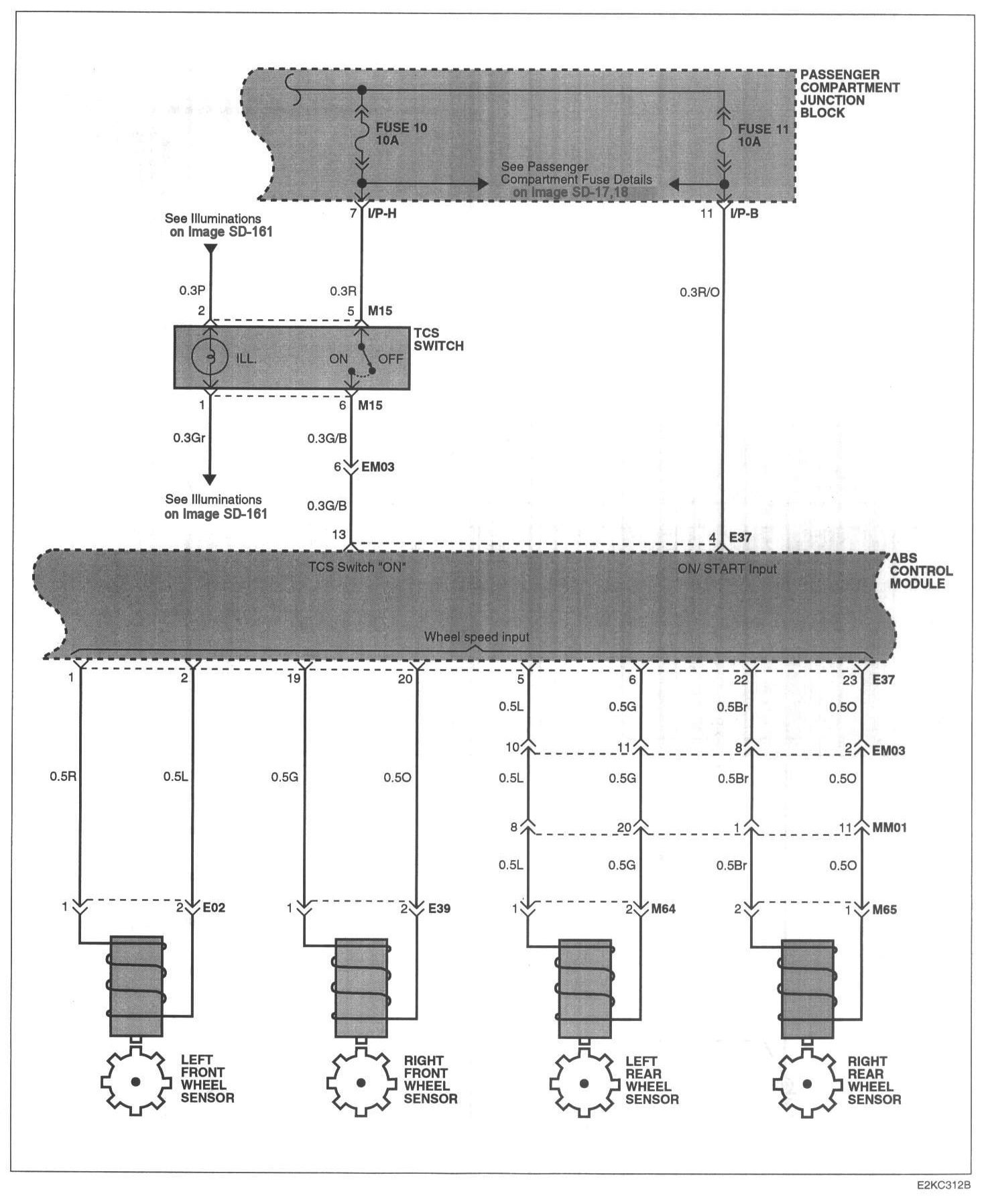

Image SD-72 Anti-Lock Brake System/Traction Control System (1):

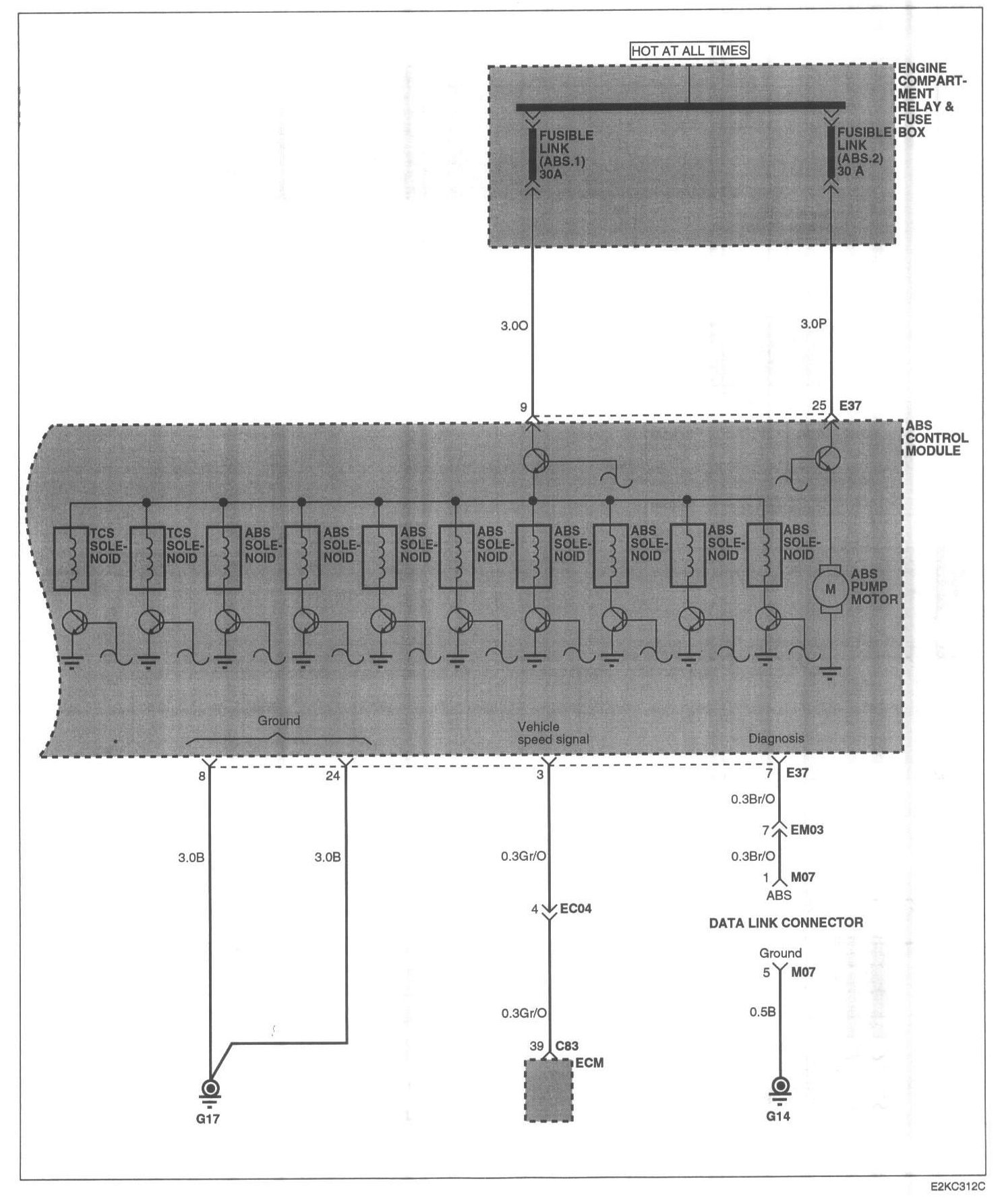

Image SD-73 Anti-Lock Brake System/Traction Control System (2):



Image SD-74 Anti-Lock Brake System/Traction Control System (3):
