Diagnostic Strategies

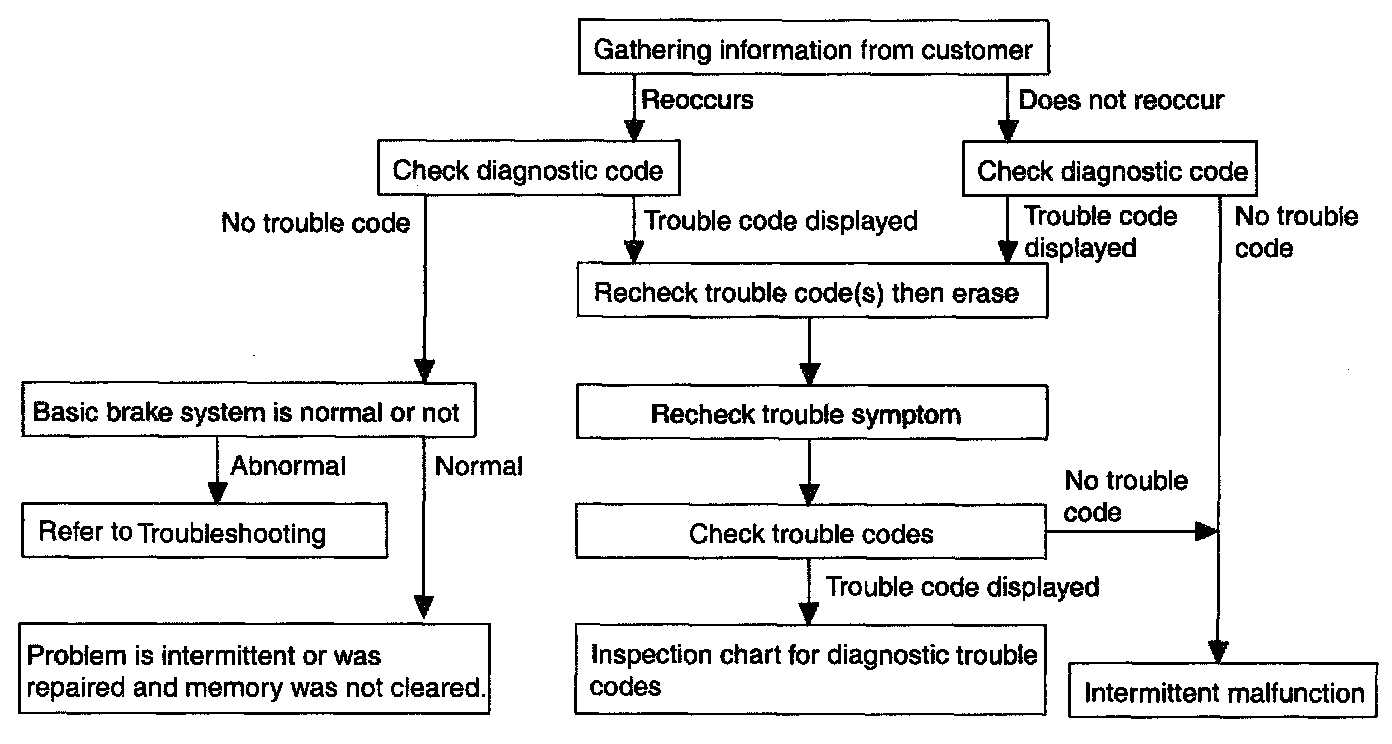

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING





Using the customer problem analysis check sheet for reference, ask the customer as much detail as possible about the problem.

NOTES WITH REGARD TO DIAGNOSIS

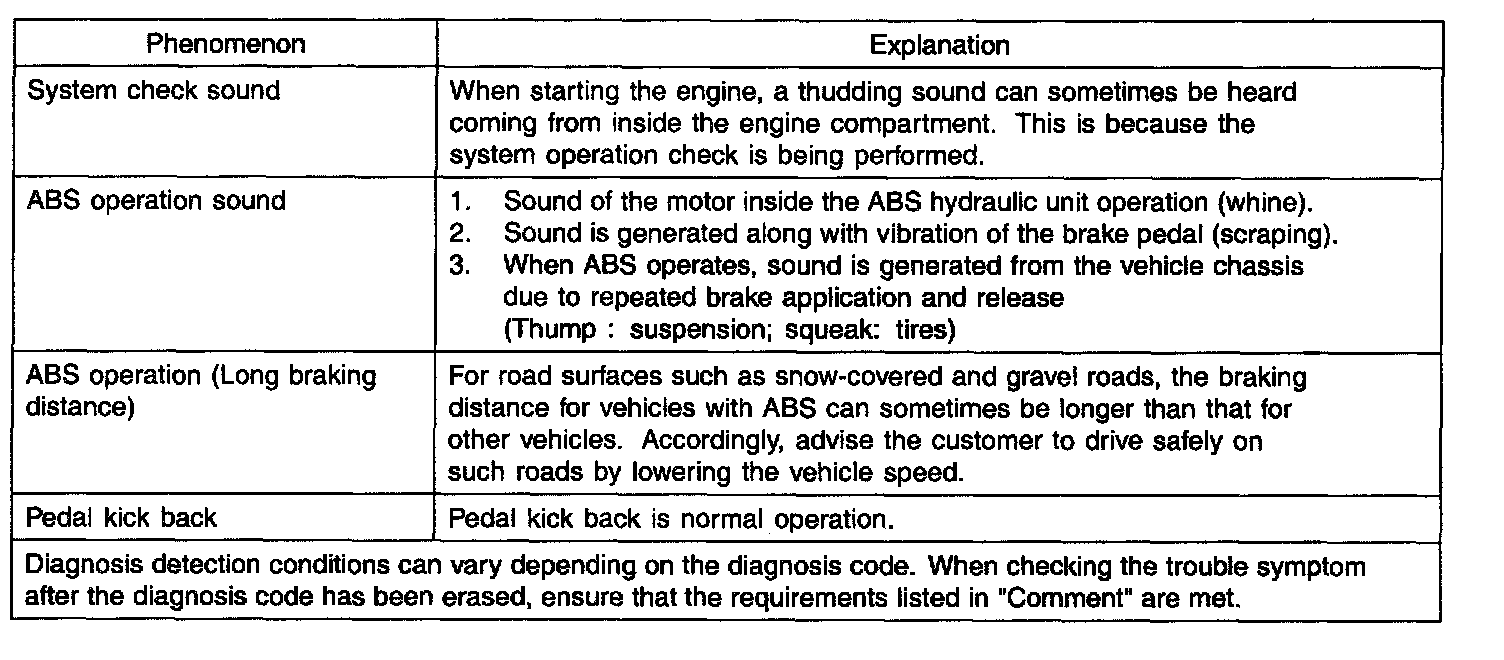

Read the phenomena listed in the table that are not abnormal.

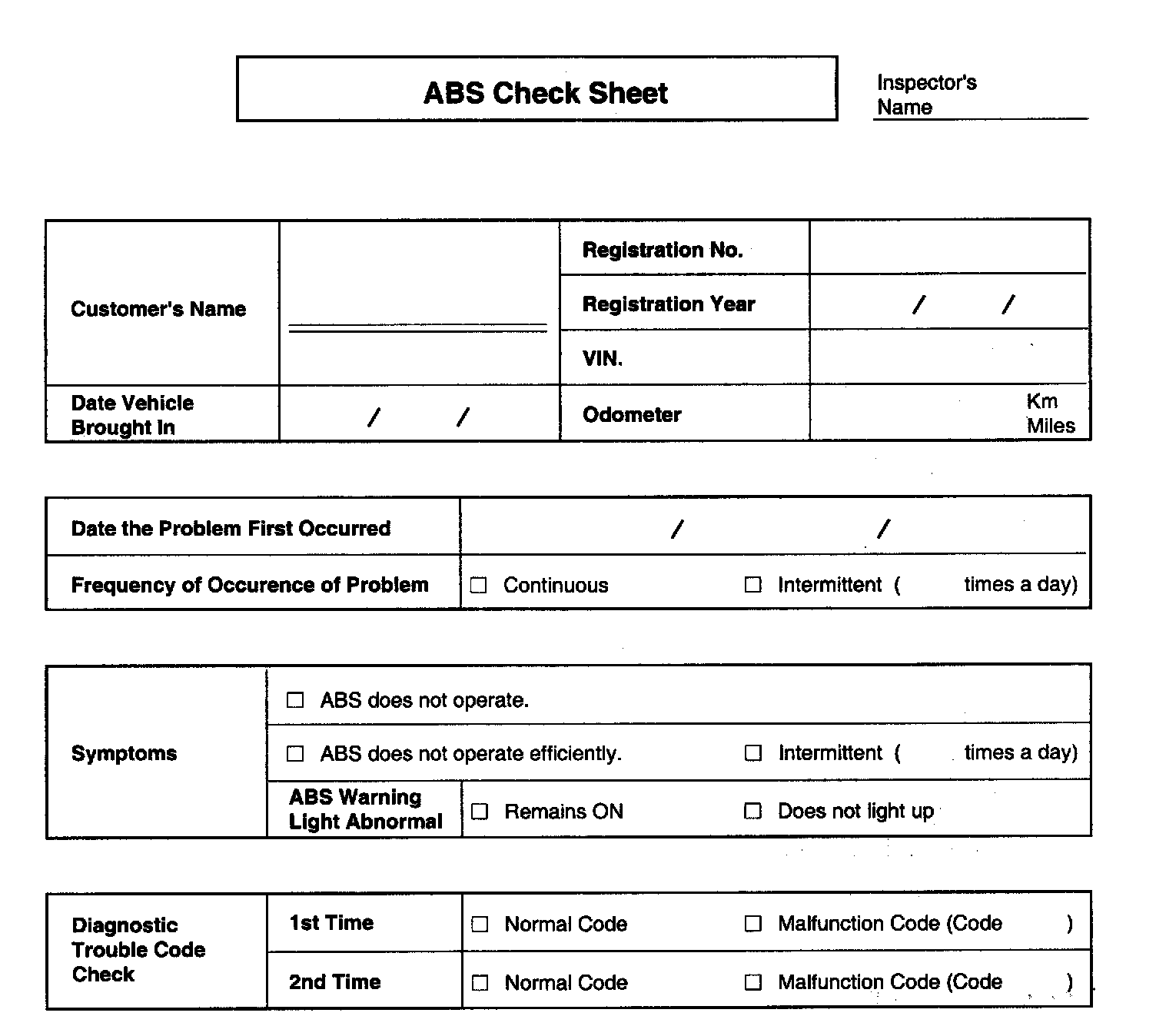

ABS CHECK SHEET
