Wheel Speed Sensor: Locations

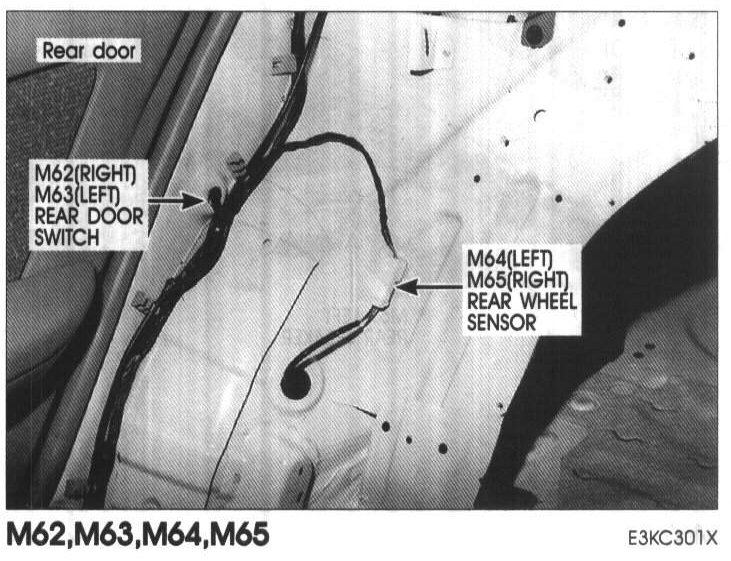

M62 (Right), M63 (Left) Rear Door Switch, M64 (Left), M65 (Right) Rear Wheel Sensor:

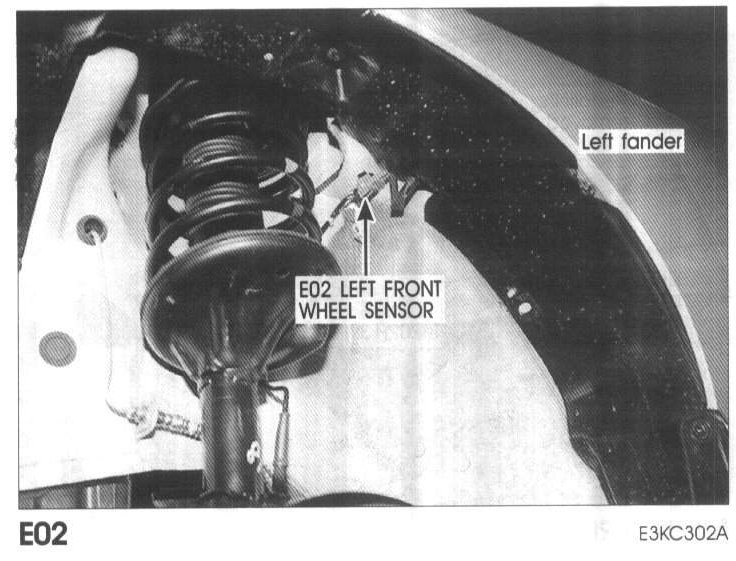

E02 Left Front Wheel Sensor:

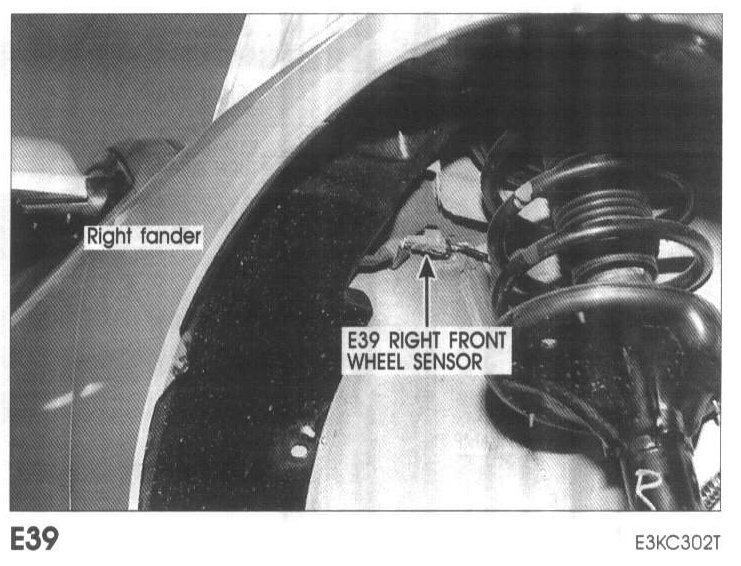

E39 Right Front Wheel Sensor:
