Brake Shoe: Service and Repair

REMOVAL
1. Remove the wheel.

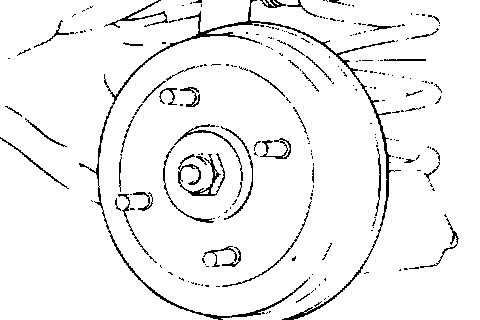

2. After removing the rear wheel bearing nut, remove the rear hub with the brake drum.
3. Remove the shoe return lower spring and shoe hold down spring.

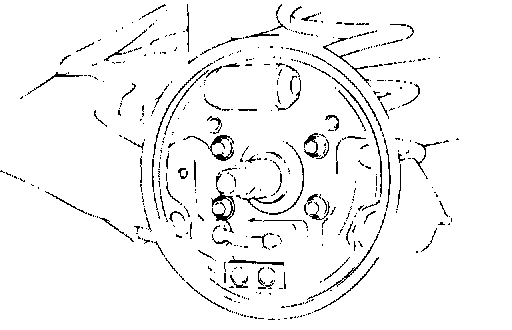

4. Remove the shoes and adjuster as an assembly.

INSPECTION

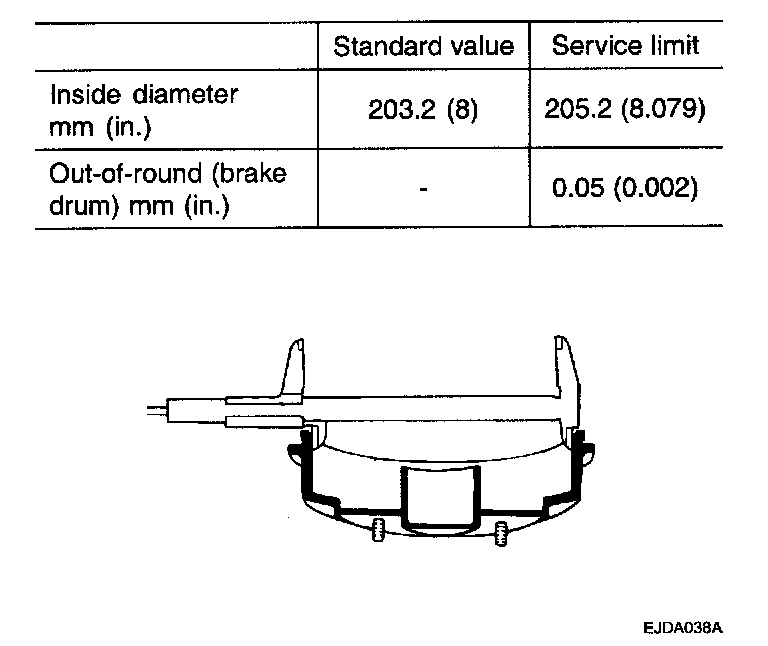

1. Measure the inside diameter of the brake drum. Check the runout of the brake drum by using a dial indicator.

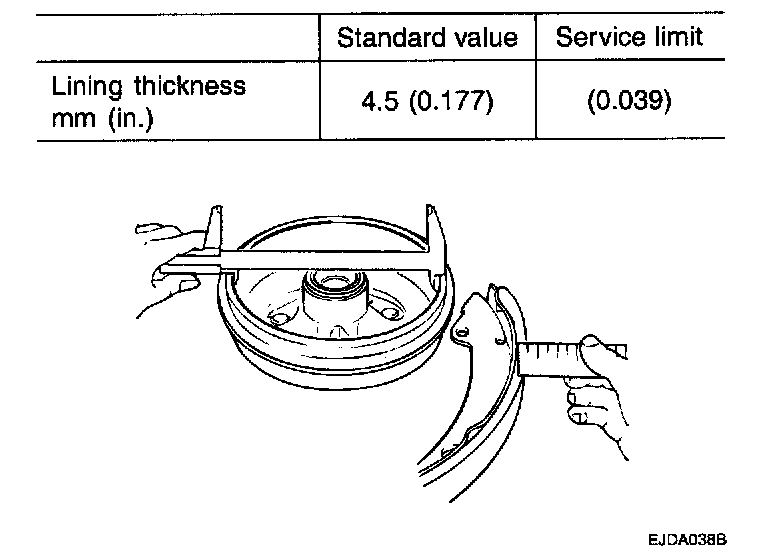

2. Measure the brake shoe lining thickness.

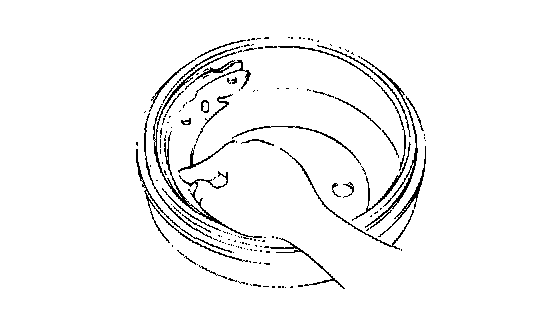

3. Inspect the brake lining and drum for proper contact.

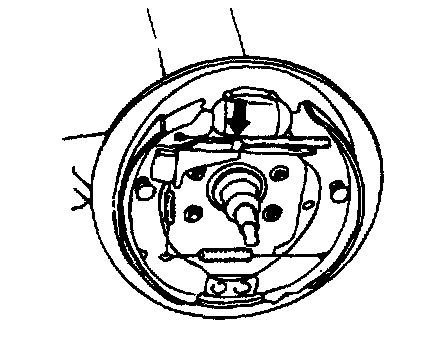

4. Inspect the wheel cylinder outside for excessive wear and damage.





5. Inspect the backing plate for wear or damage.

INSTALLATION

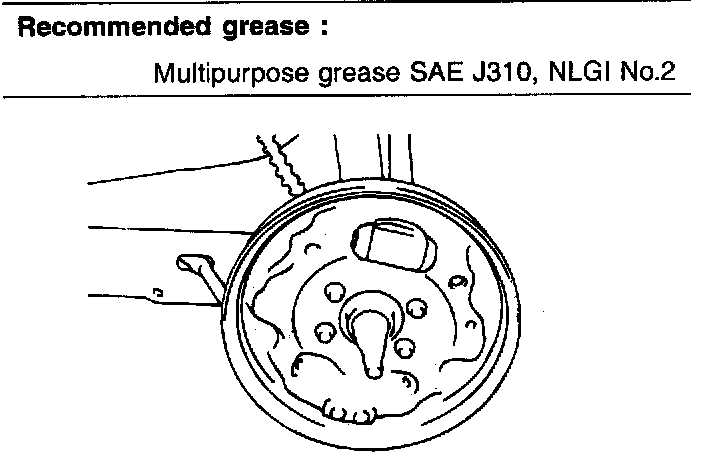

1. Apply the specified grease to the locations indicated in the illustration and to each component.
- Shoe and backing plate contact surfaces.
- Shoe and anchor plate contact surfaces.

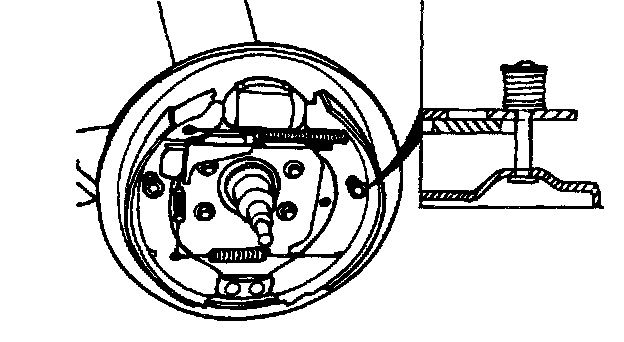

2. Install the shoe hold-own pin.





3. Assemble the return spring by pressing the push rod.
4. After assembling the drum components, pull the parking brake lever to end several times.
