Front

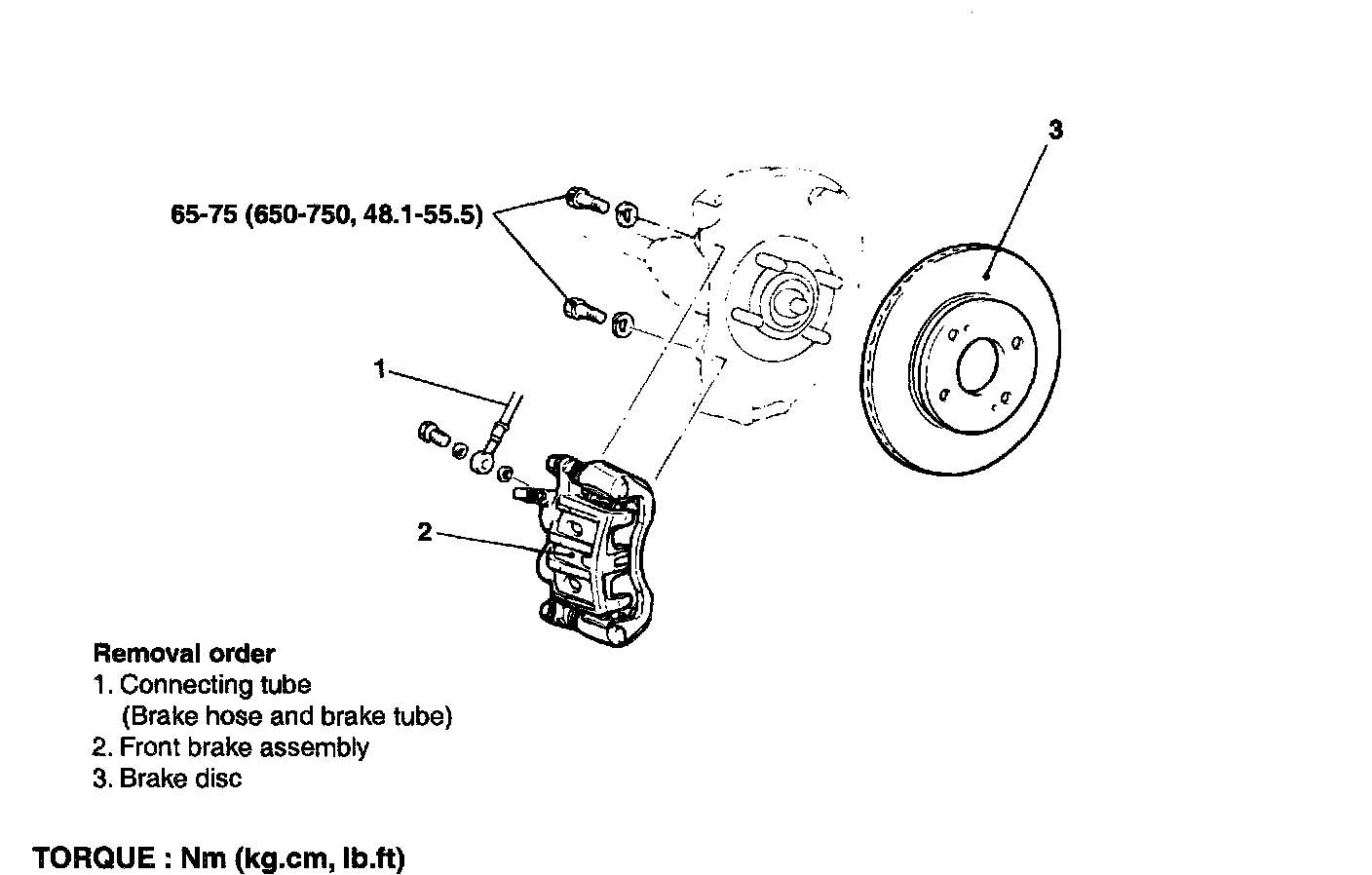

REMOVAL
1. Remove the wheel and tire.
2. Disconnect the brake hose.
3. Remove the cylinder mounting bolt.
4. Remove cylinder and pads.

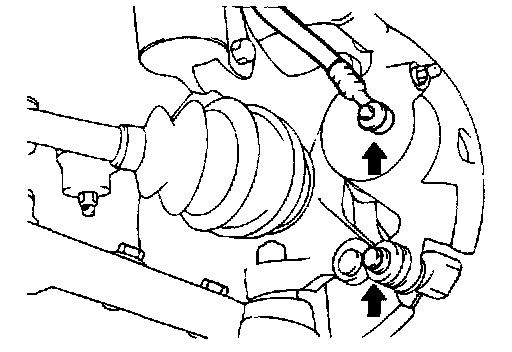

5. Remove the caliper mounting bolts (2 EA) from the knuckle.





6. Remove the caliper.

INSTALLATION




1. Install caliper.
