Brake Proportioning/Combination Valve: Service and Repair

INSTALLATION OF PROPORTIONING VALVE

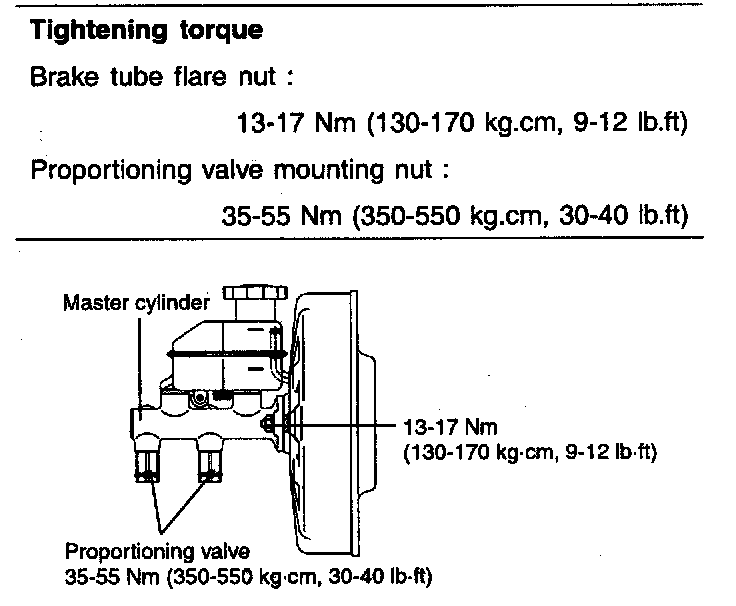

1. Install the master cylinder according to the illustration.
2. Tighten the flare nuts and bleed the system.
