Vacuum Brake Booster Check Valve: Testing and Inspection

CHECK VALVE OPERATION CHECK
When checking the check valve, keep the check valve fit in the vacuum hose.





1. Remove the vacuum hose.

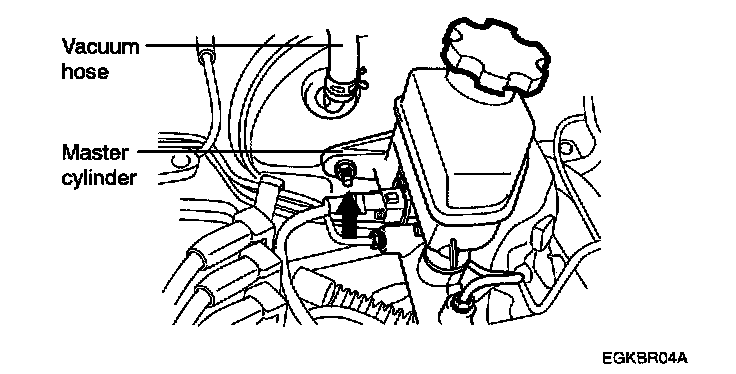

NOTE: The check valve is press-fitted inside the vacuum hose at the position of the marking.

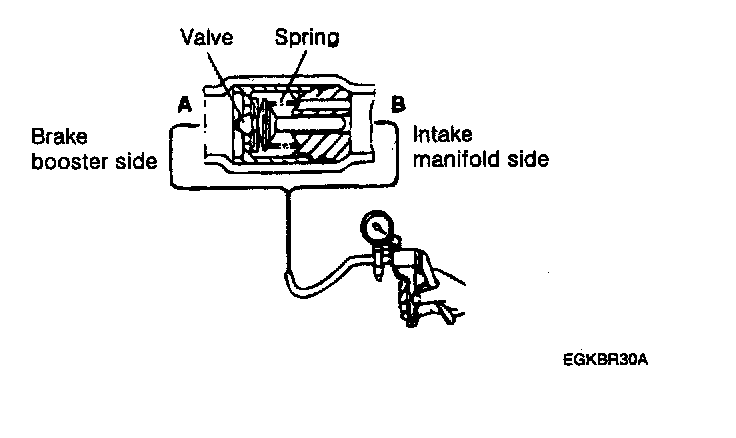

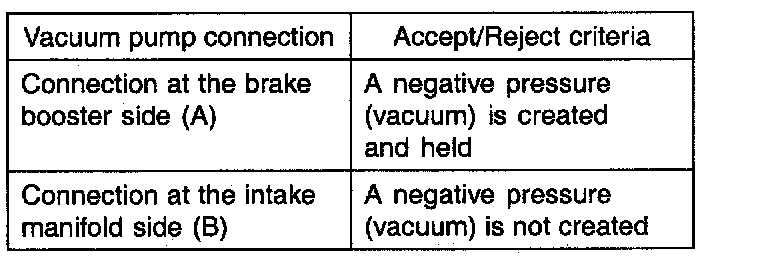

2. Check the operation of the check valve by using a vacuum pump.





CAUTION: If the check valve is defective, replace it if an assembly unit together with the vacuum hose.
