Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

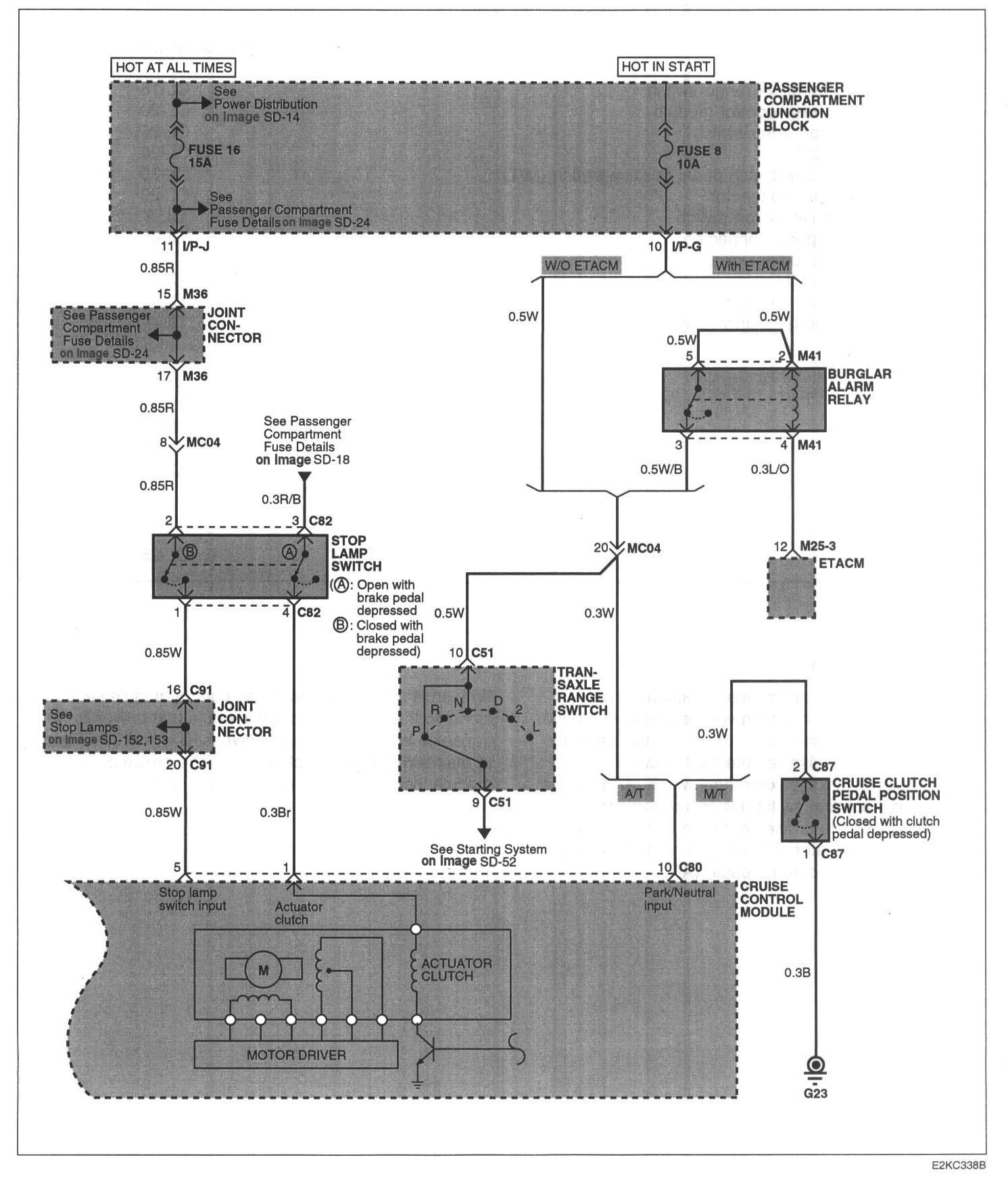

Image SD-170 Cruise Control System (1):
Image SD-171 Cruise Control System (2):

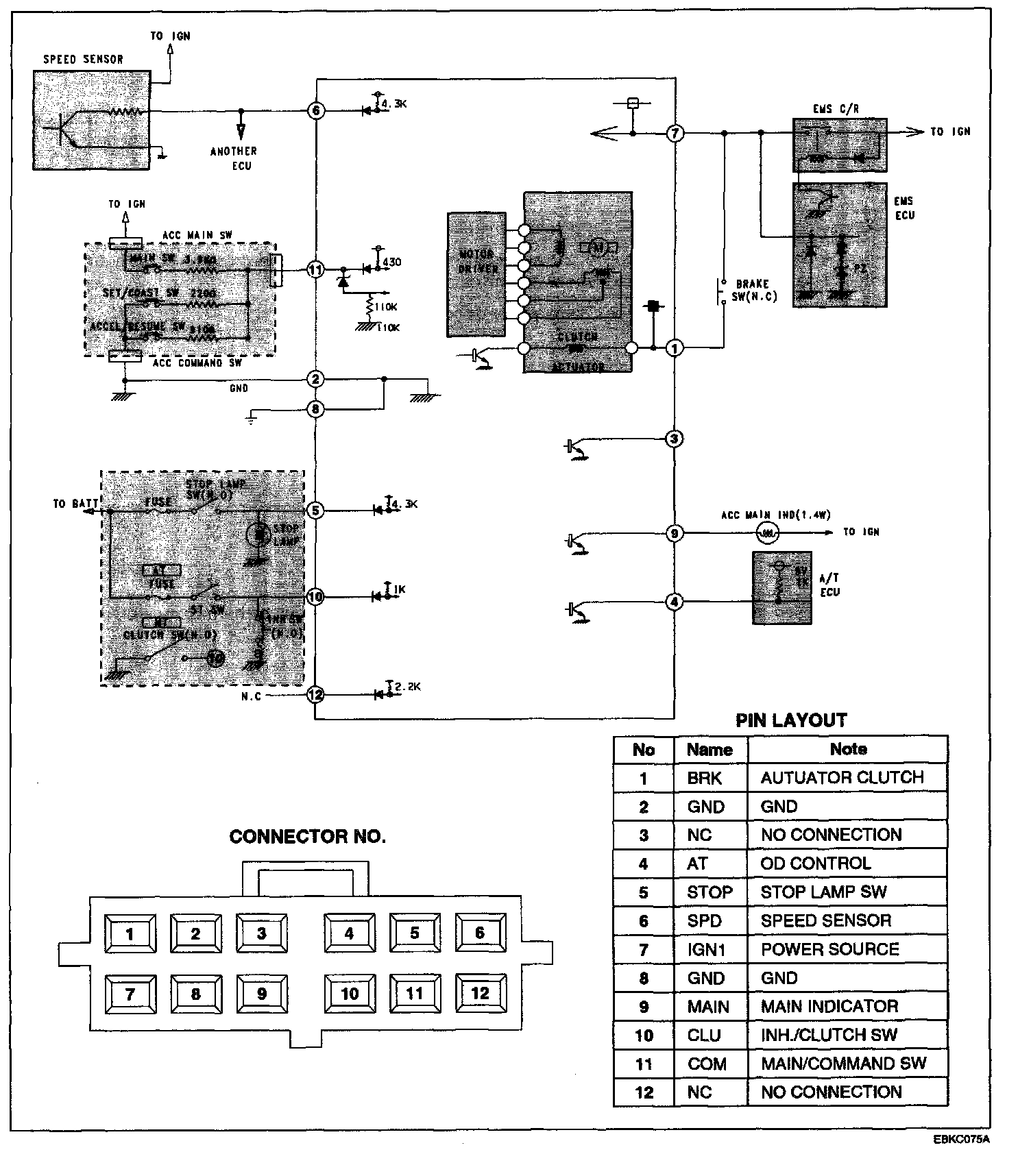

Circuit Diagram For Cruise Control System:
