Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
I Connectors (Air Bag and A/C Harness)
I Connectors (Air Bag and A/C Harness)

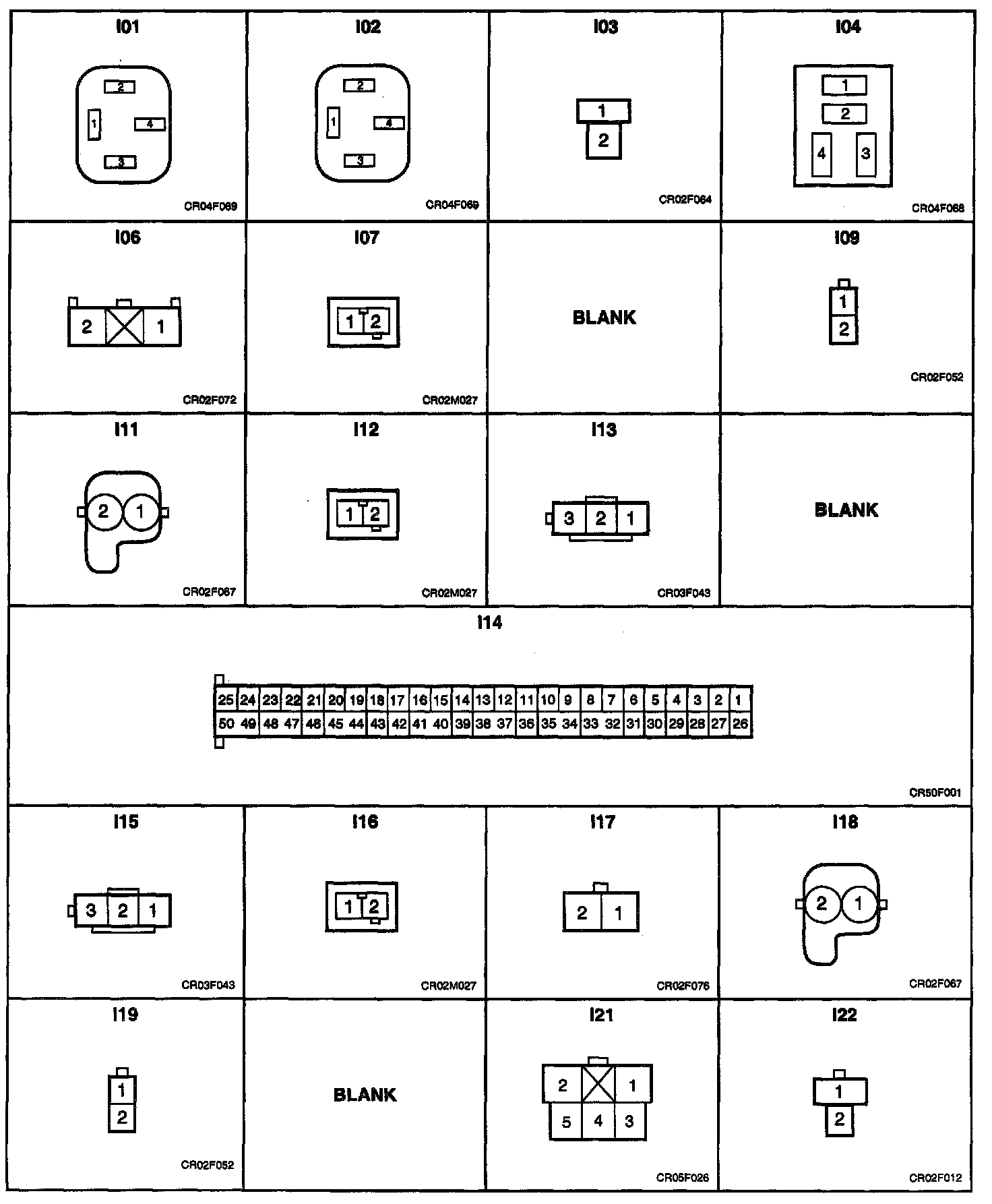

I01 - I22:

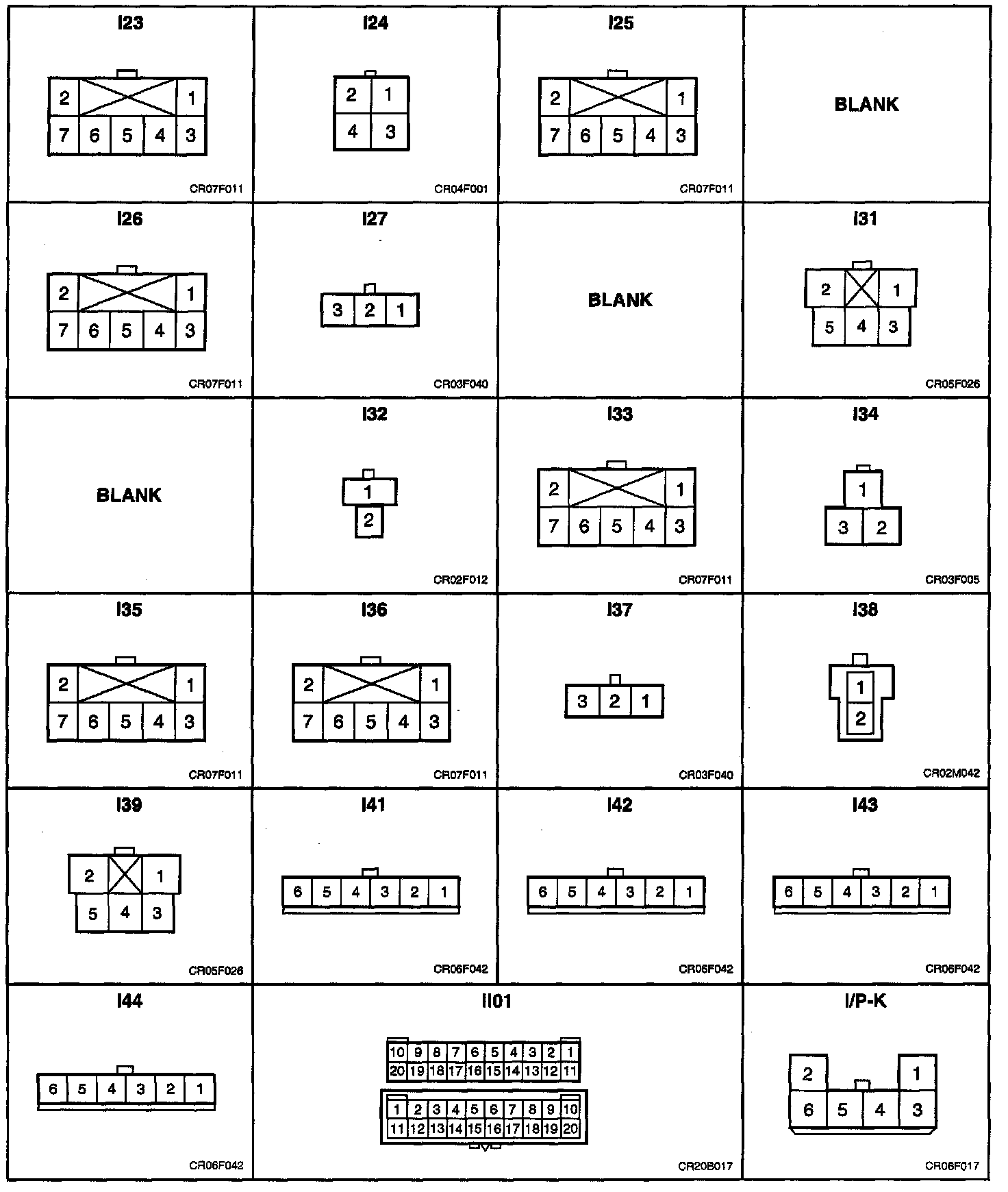

I23 - I44, II01, I/P-K:
