Air Bag Systems
Air Bag Systems

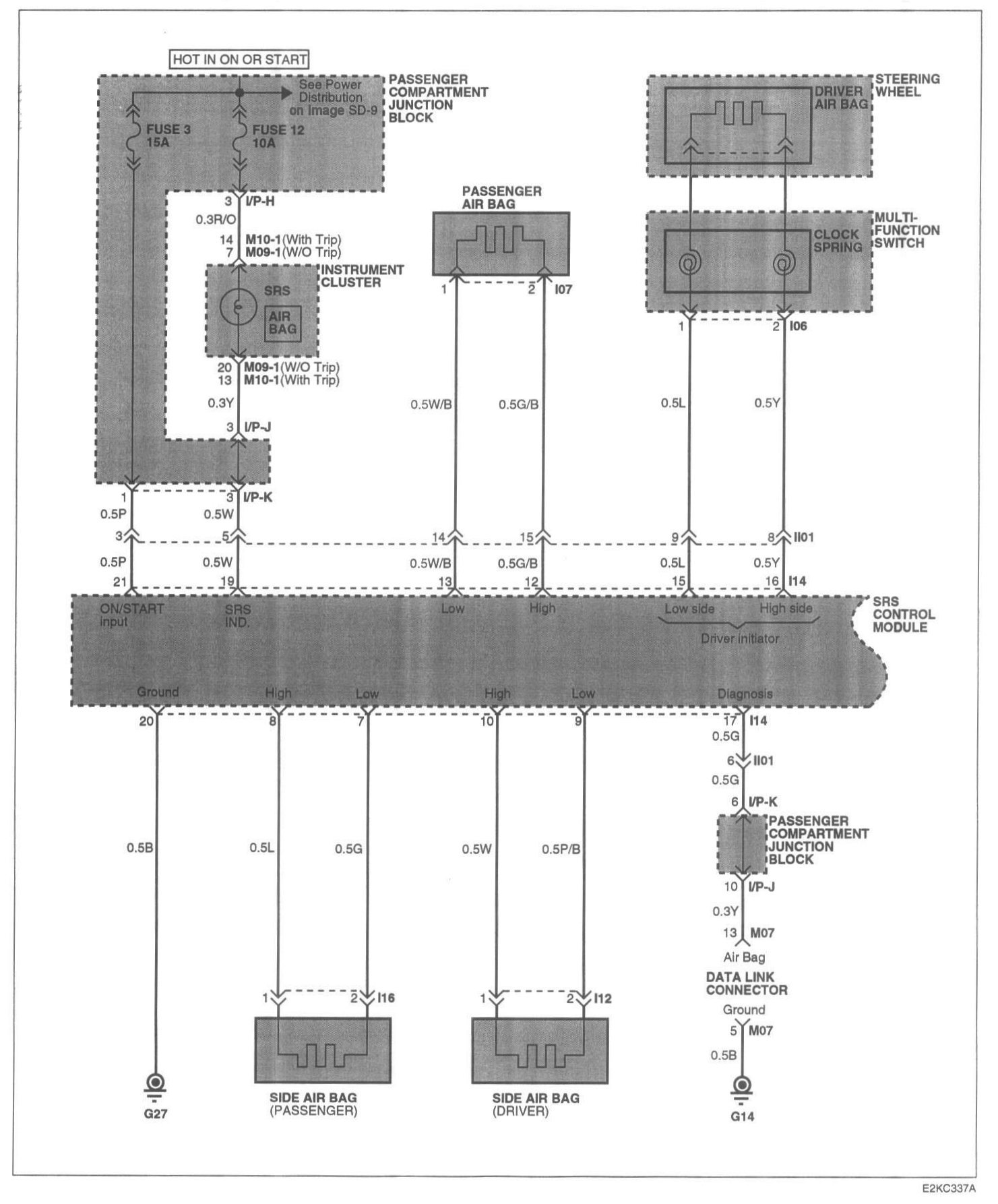

Airbag System (SRS) (1):

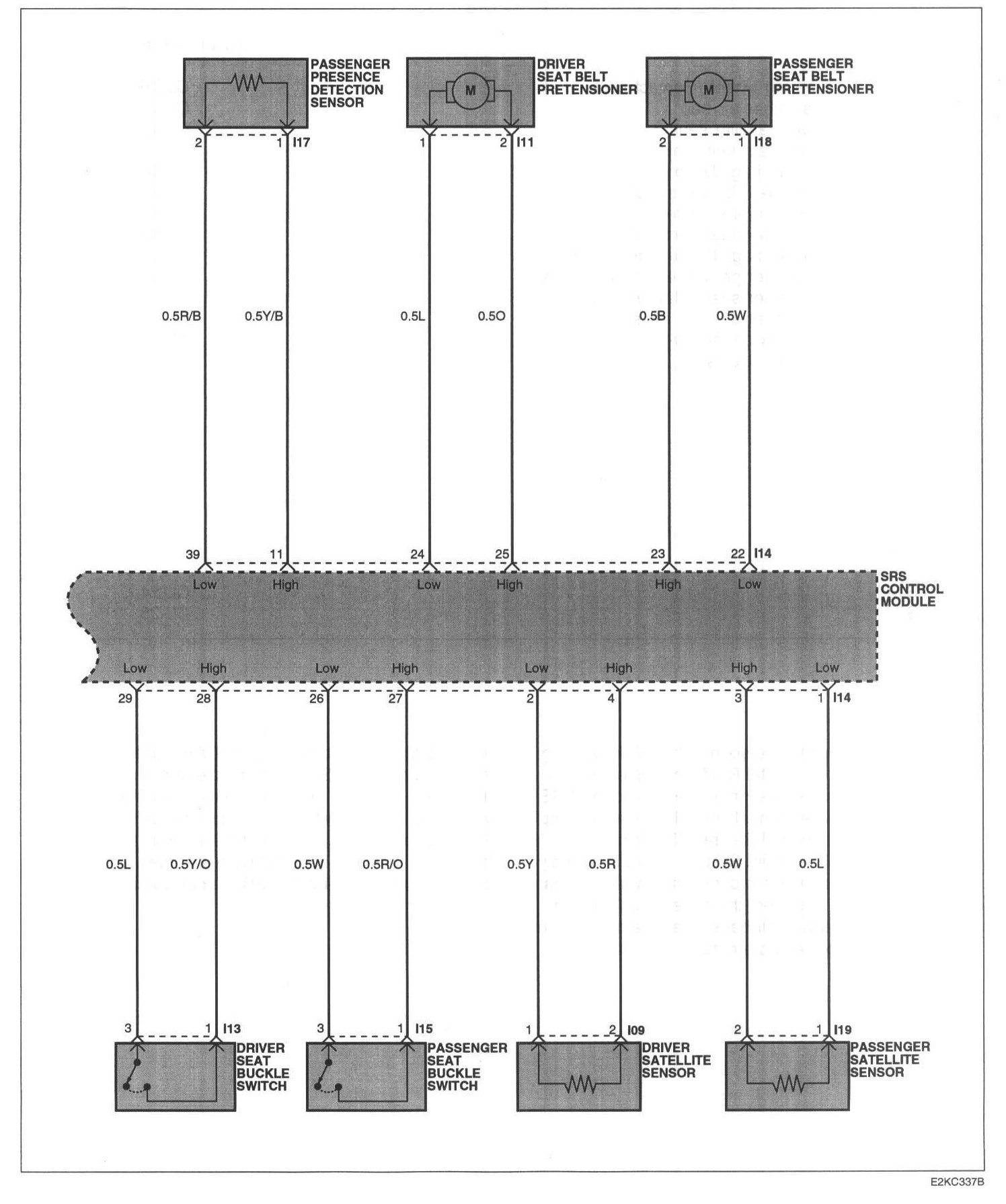

Airbag System (SRS) (2):
Image SD-166 Air Bag System (SRS) (1):

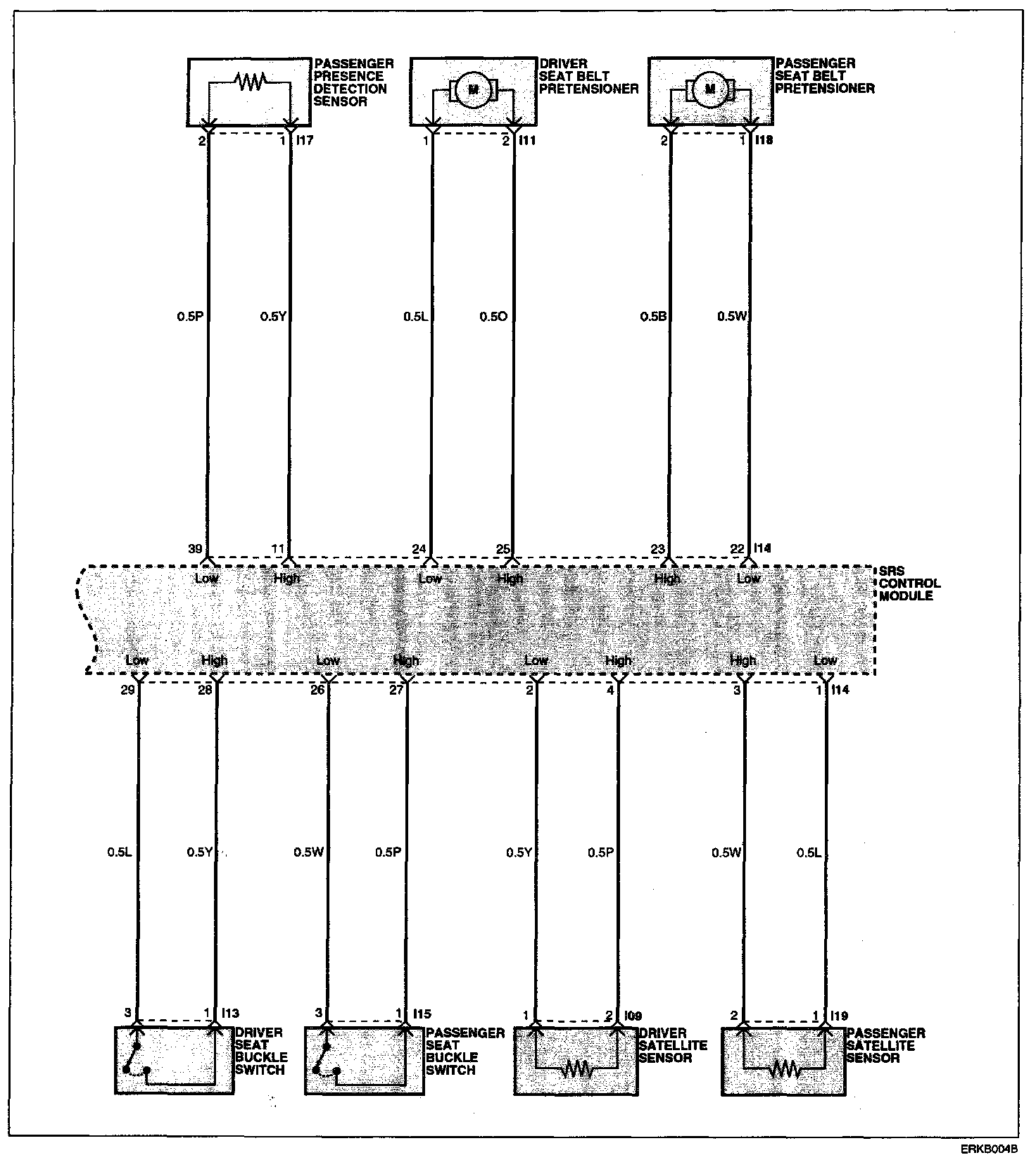

Image SD-167 Air Bag System (SRS) (2):
