Hazard Warning Lamps
Hazard Warning Lamps

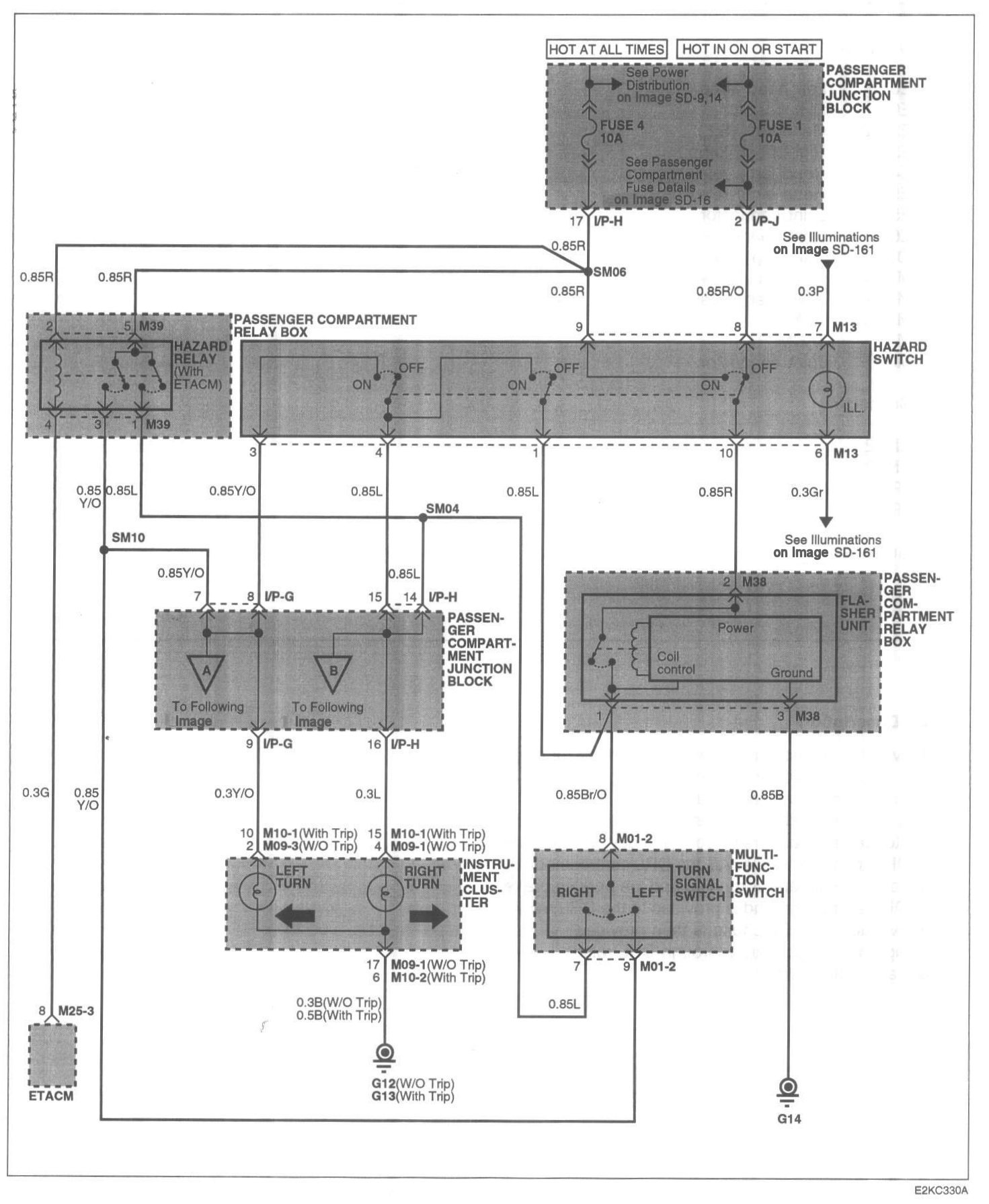

Image SD-138 Turn And Hazard Lamps (1):

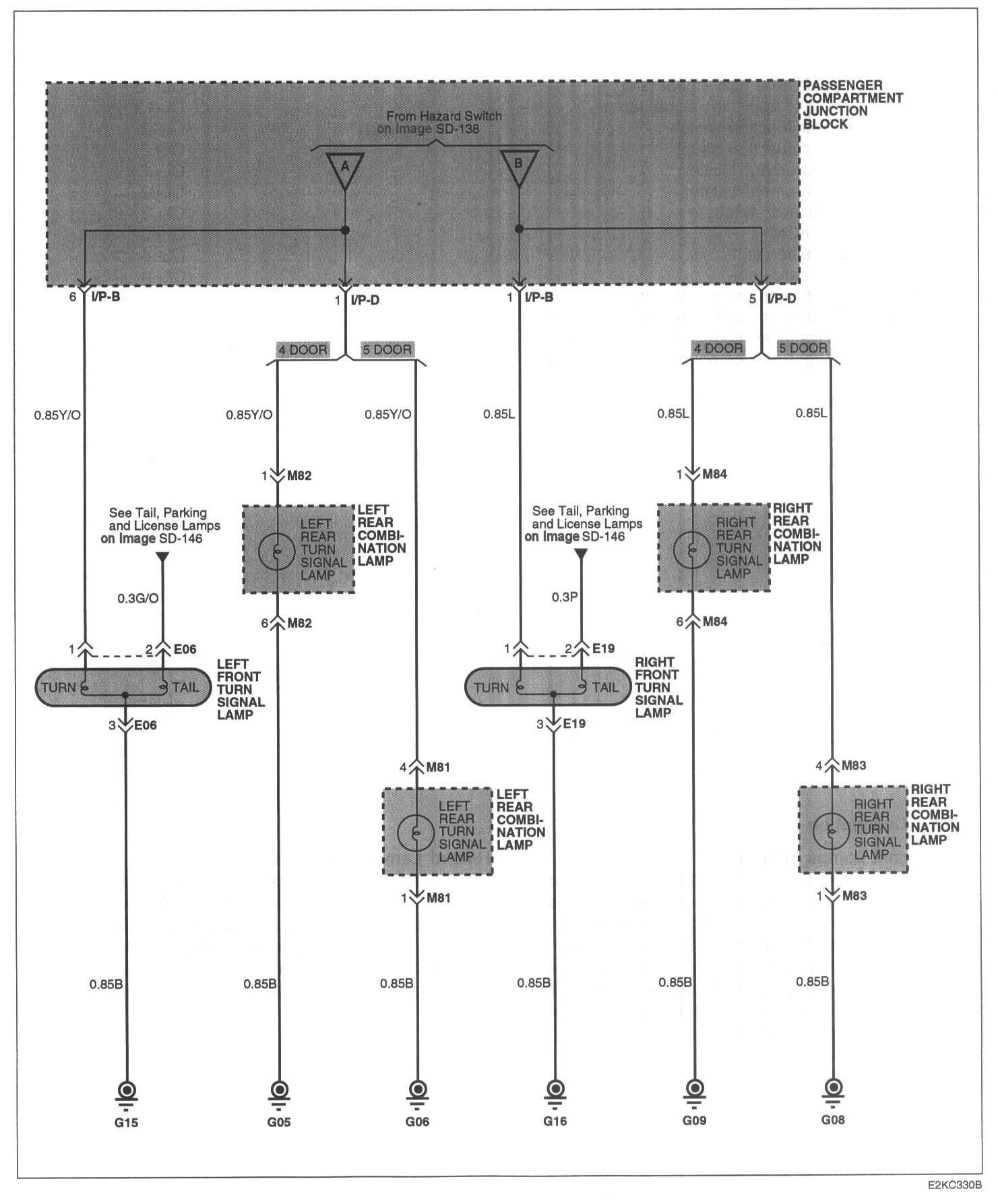

Image SD-139 Turn And Hazard Lamps (2):
