Manual

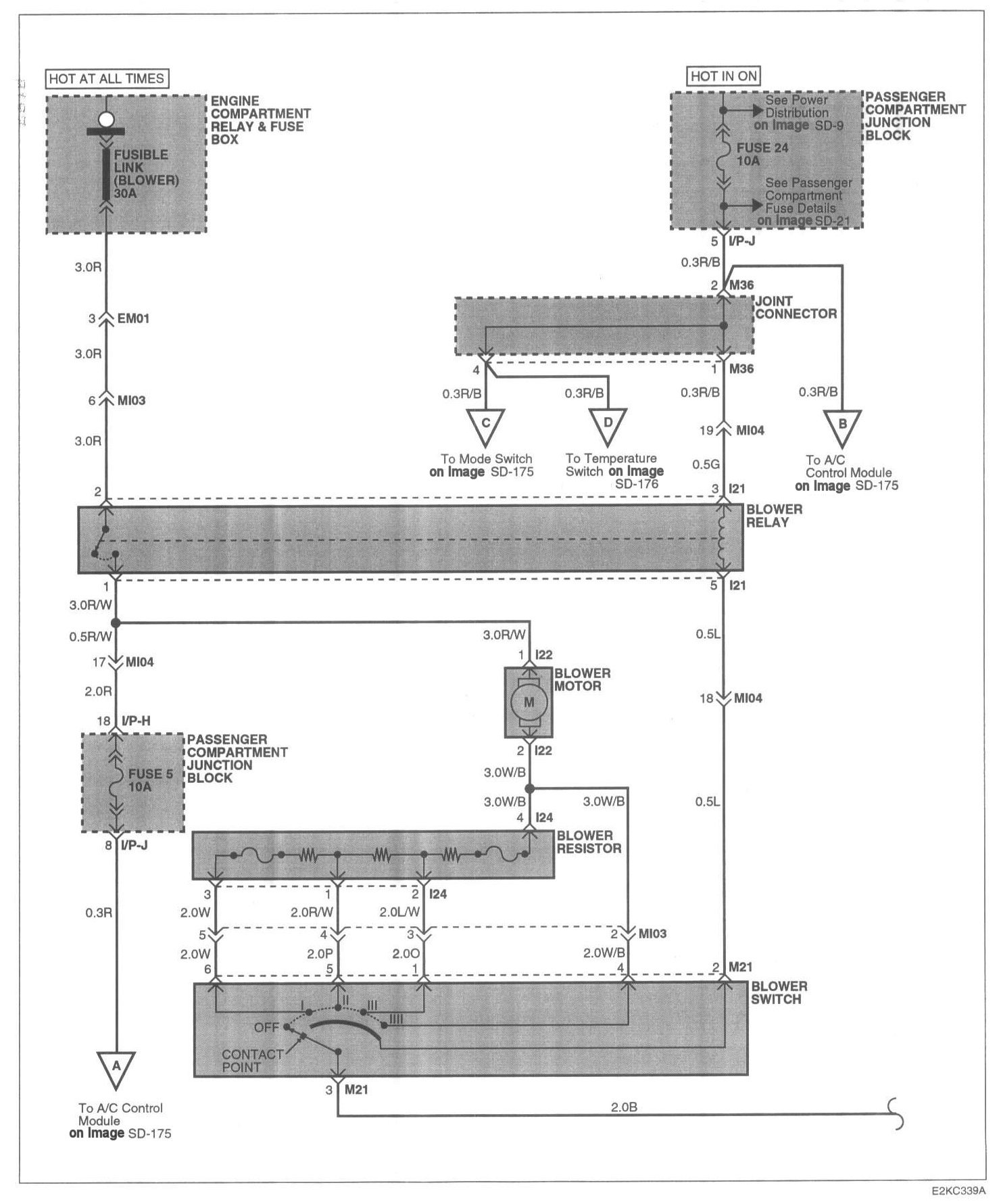

Image SD-174 Blower And A/C Controls (Manual) (1):

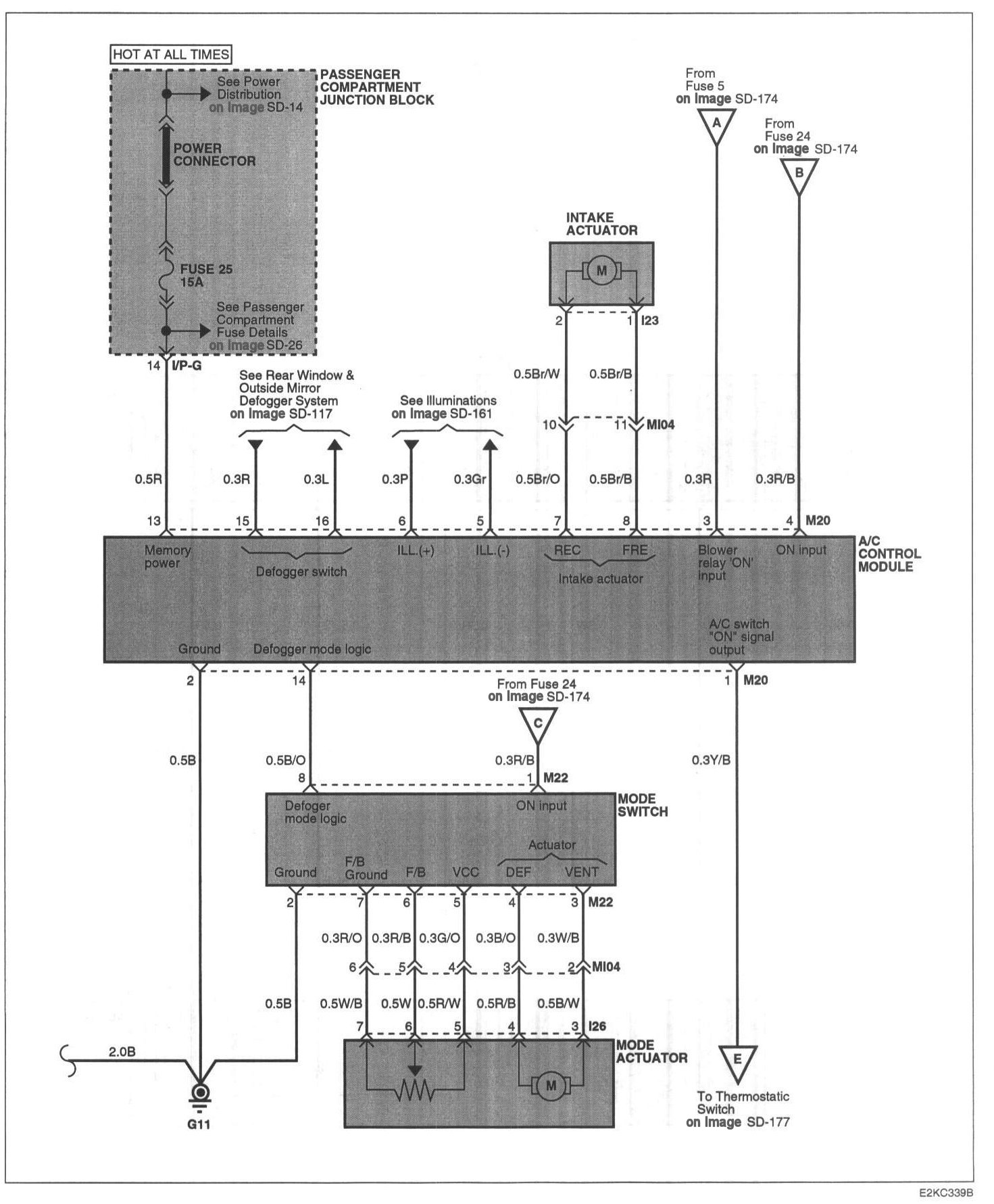

Image SD-175 Blower And A/C Controls (Manual) (2):

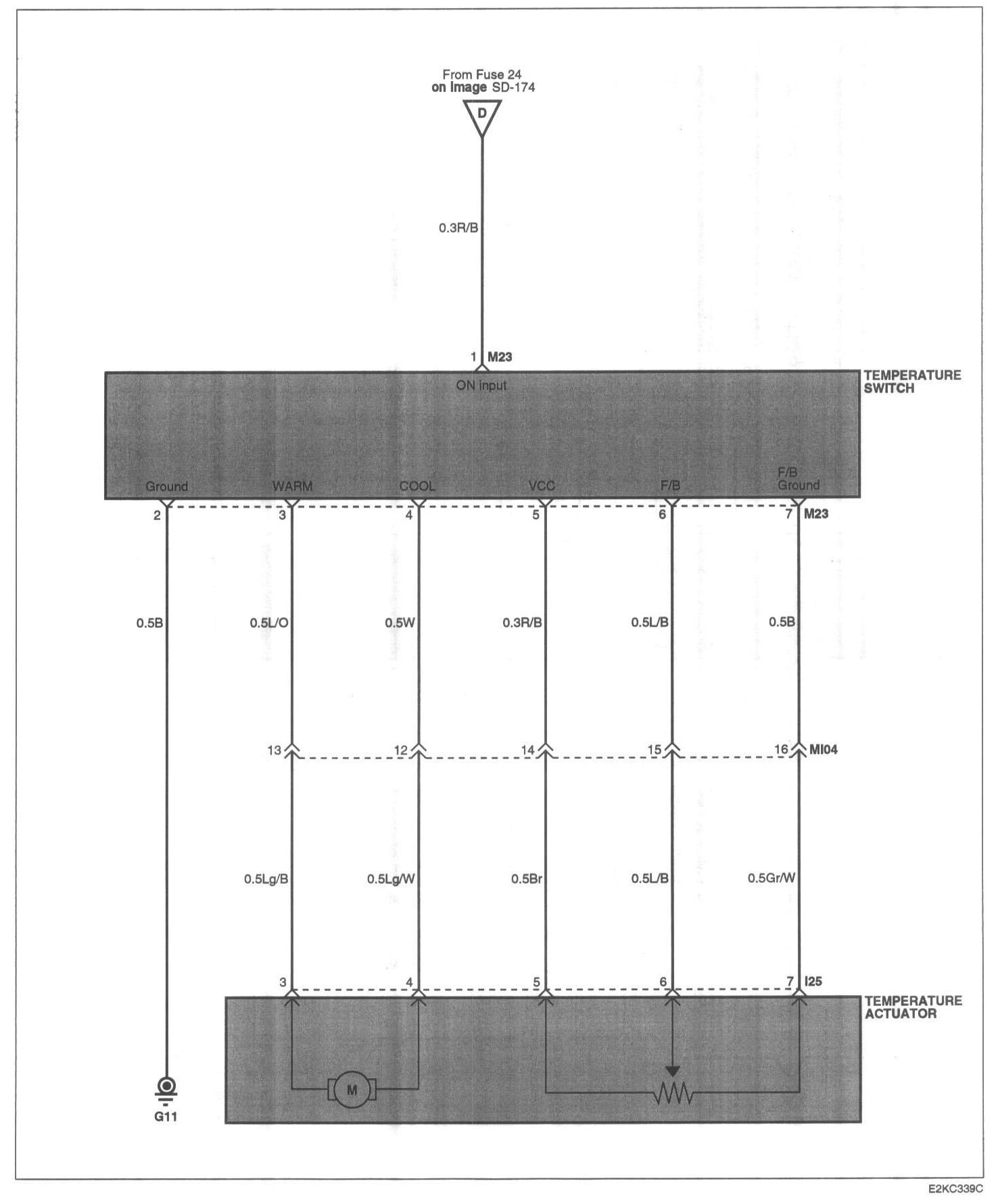

Image SD-176 Blower And A/C Controls (Manual) (3):

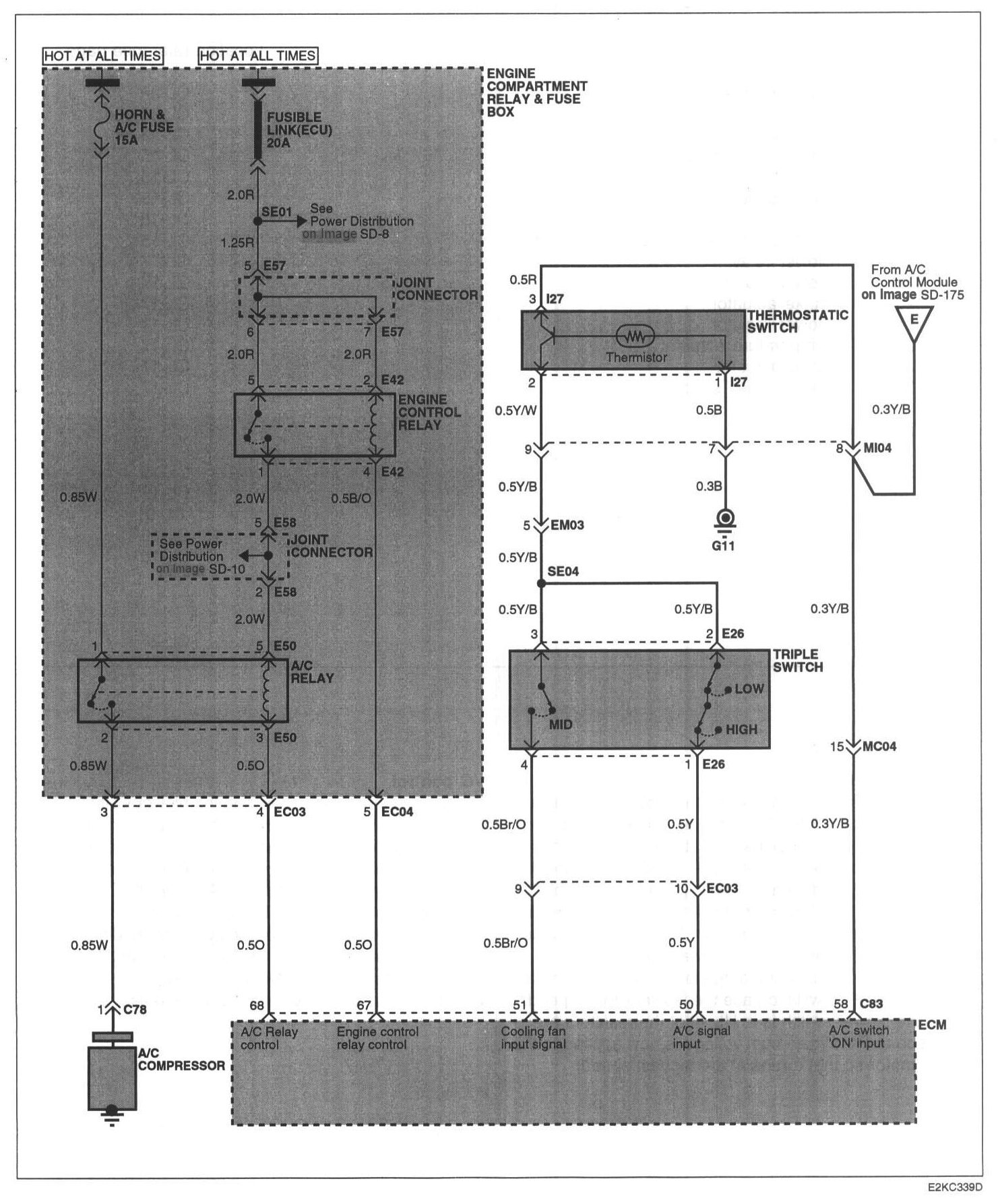

Image SD-177 Blower And A/C Controls (Manual) (4):
