License Plate Lamp
License Plate Lamp

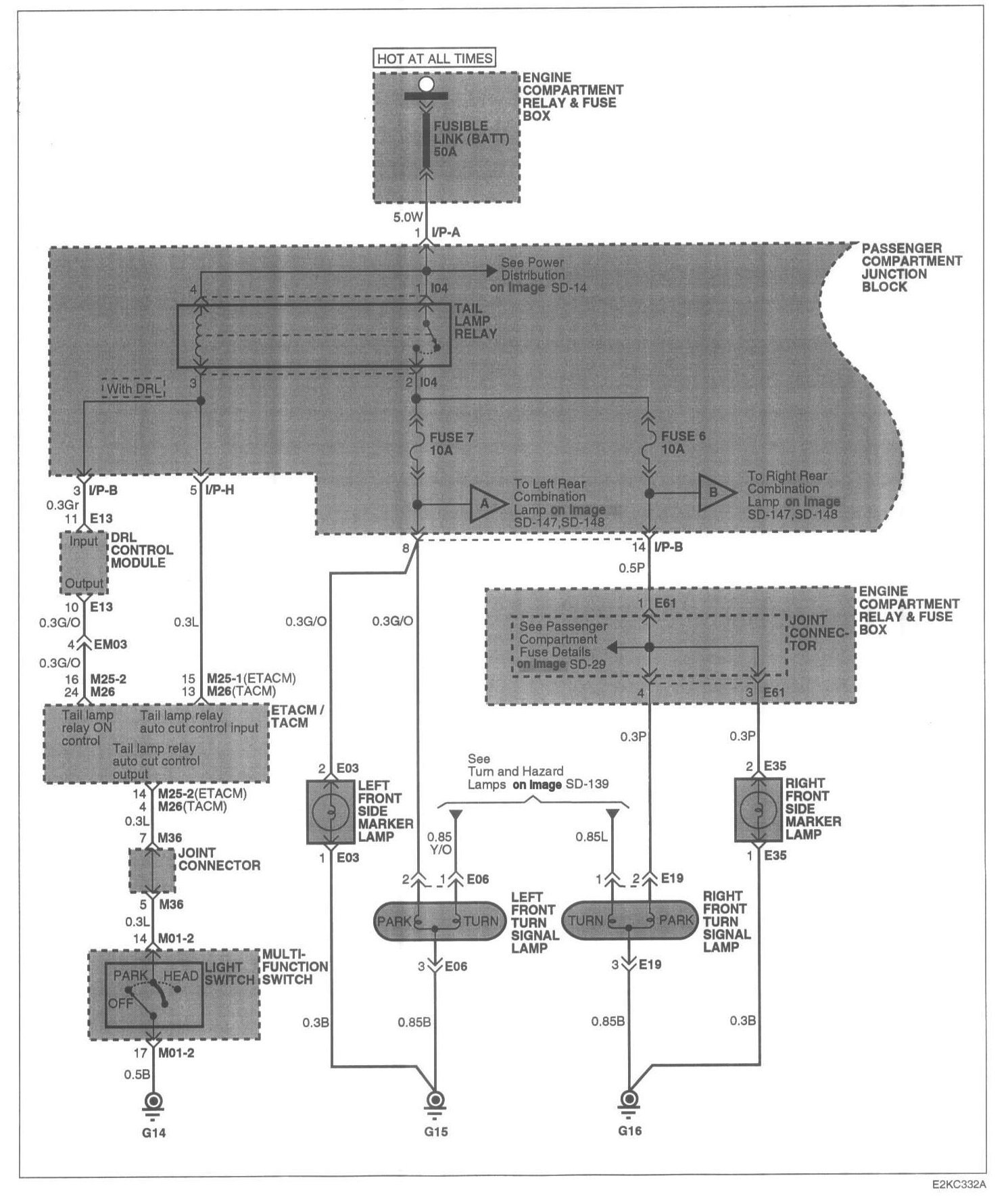

Image SD-146 Tail, Parking And License Lamps (1):

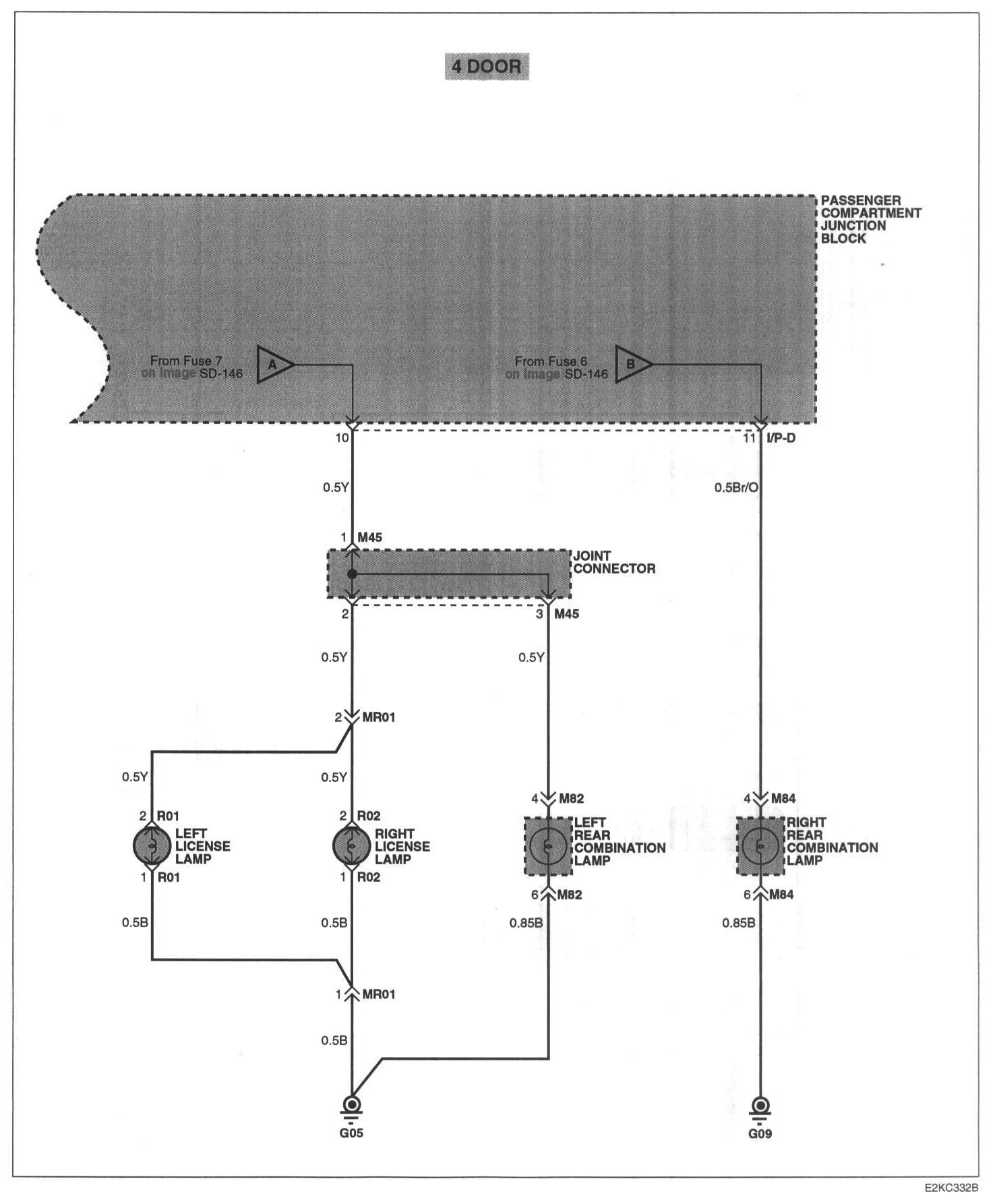

Image SD-147 Tail, Parking And License Lamps (2):
Image SD-148 Tail, Parking And License Lamps (3):
