Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Camshaft Position Sensor
Camshaft Position Sensor

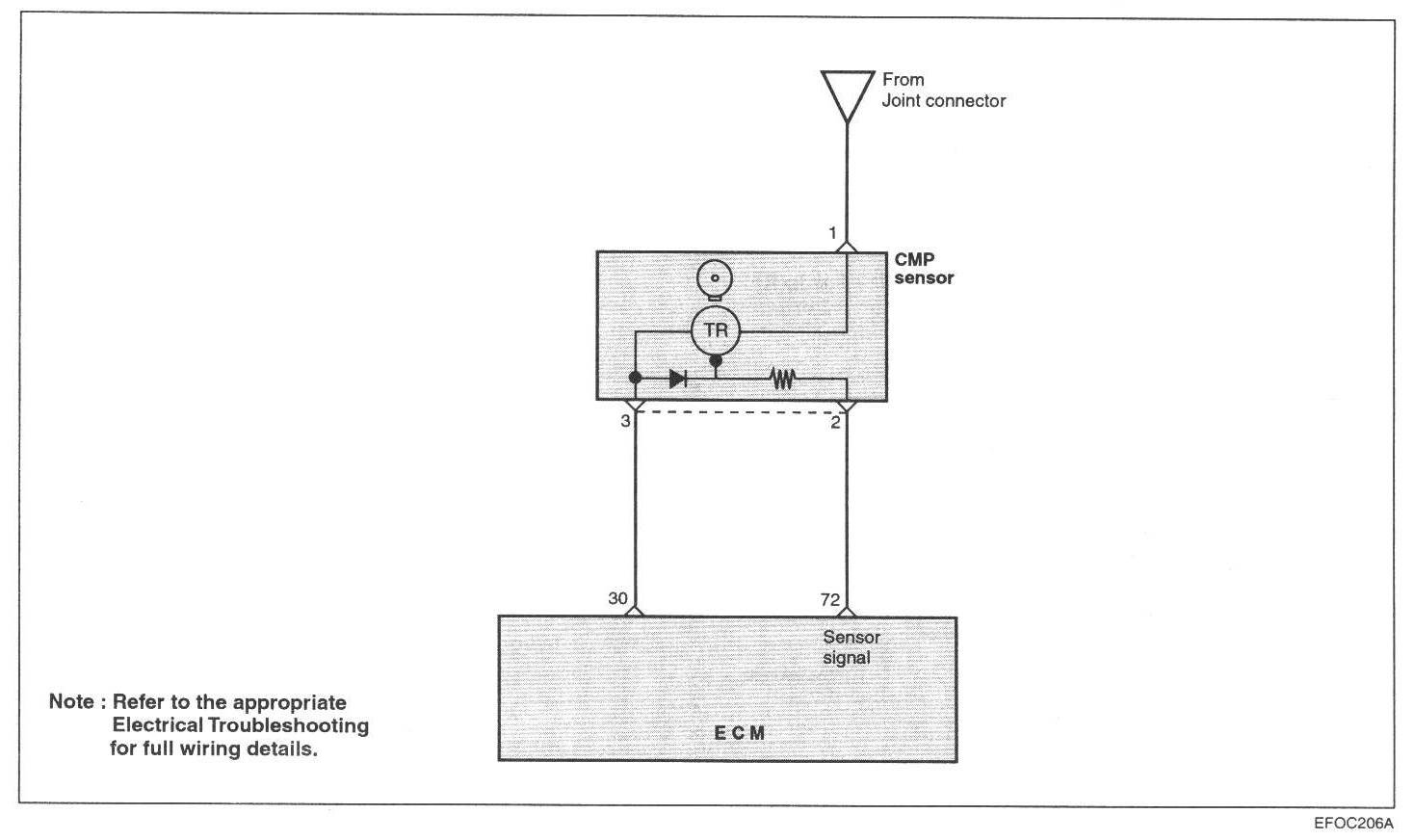

Circuit Diagram:
