Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Knock Sensor
Knock Sensor

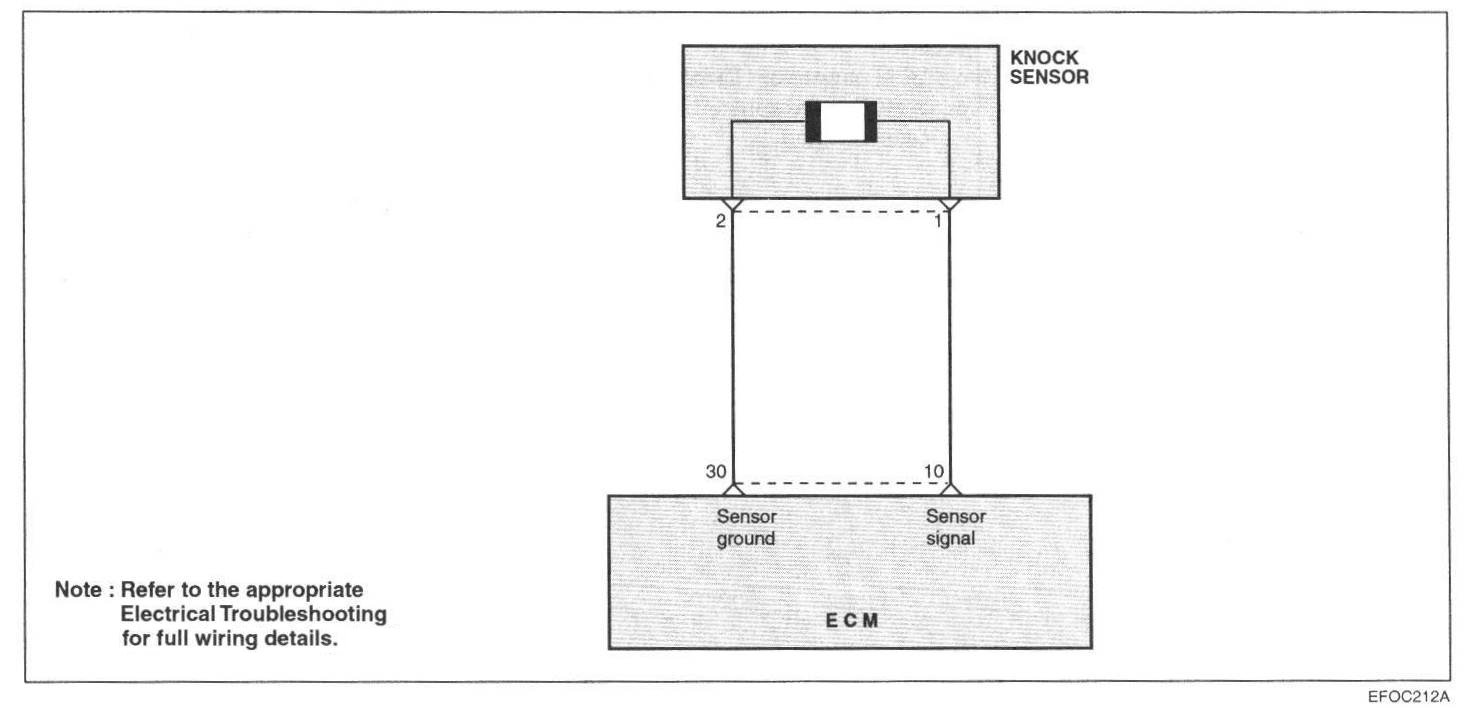

Circuit Diagram:
