Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Front Wiper and Washer

Front Wiper and Washer

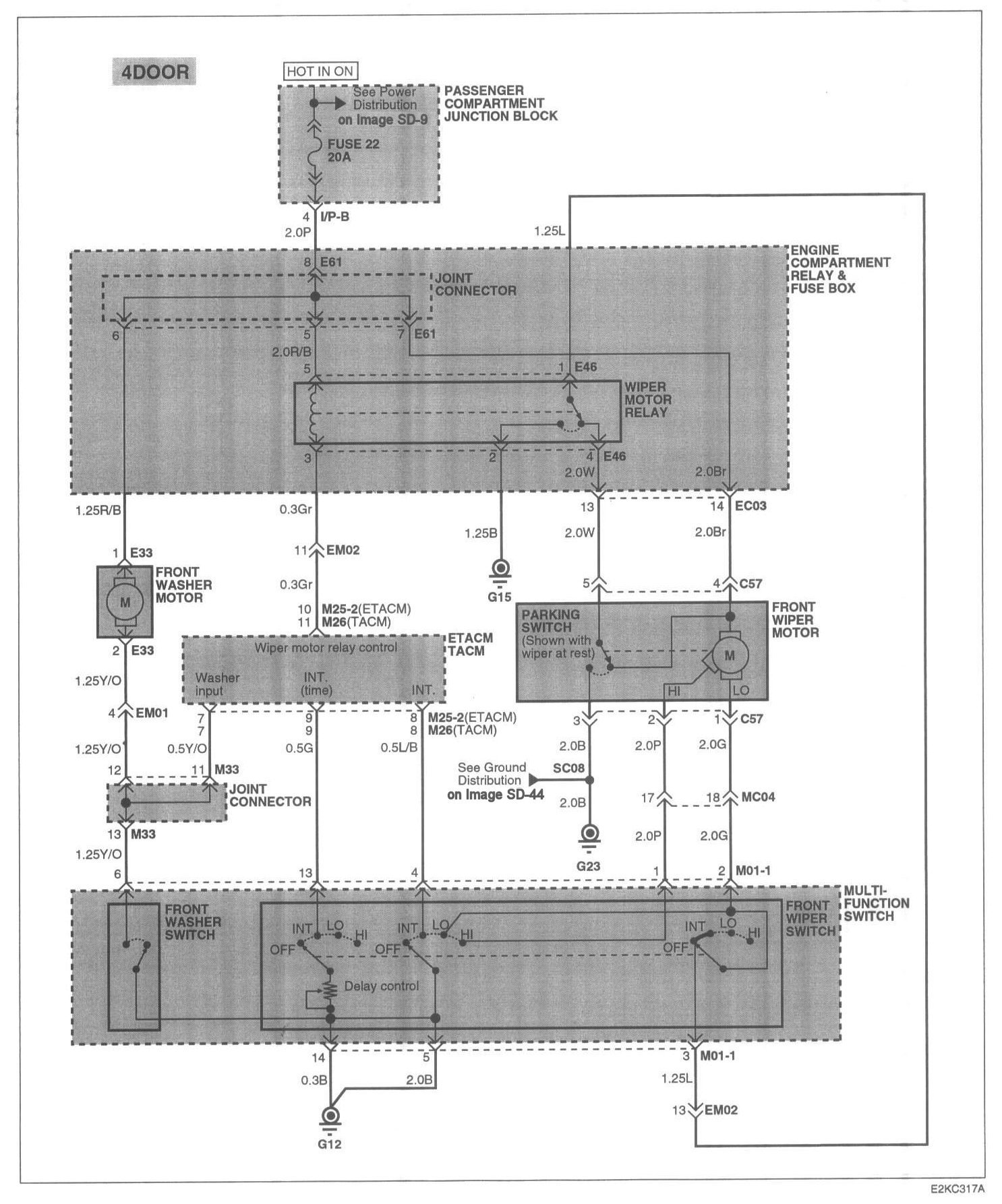

Image SD-90 Front Wiper & Washer (1):

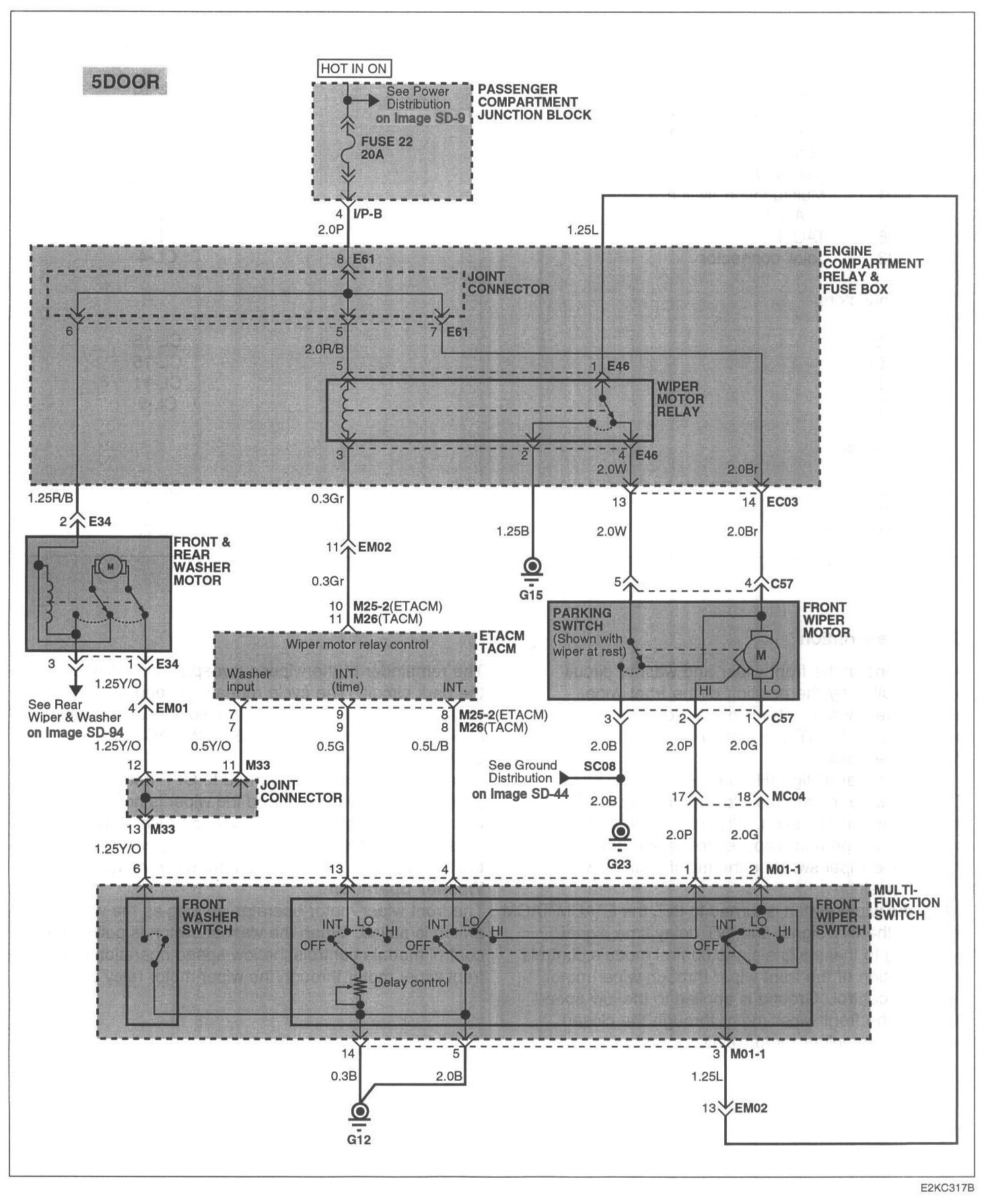

Image SD-91 Front Wiper & Washer (2):
