Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Rear Wiper and Washer

Rear Wiper and Washer

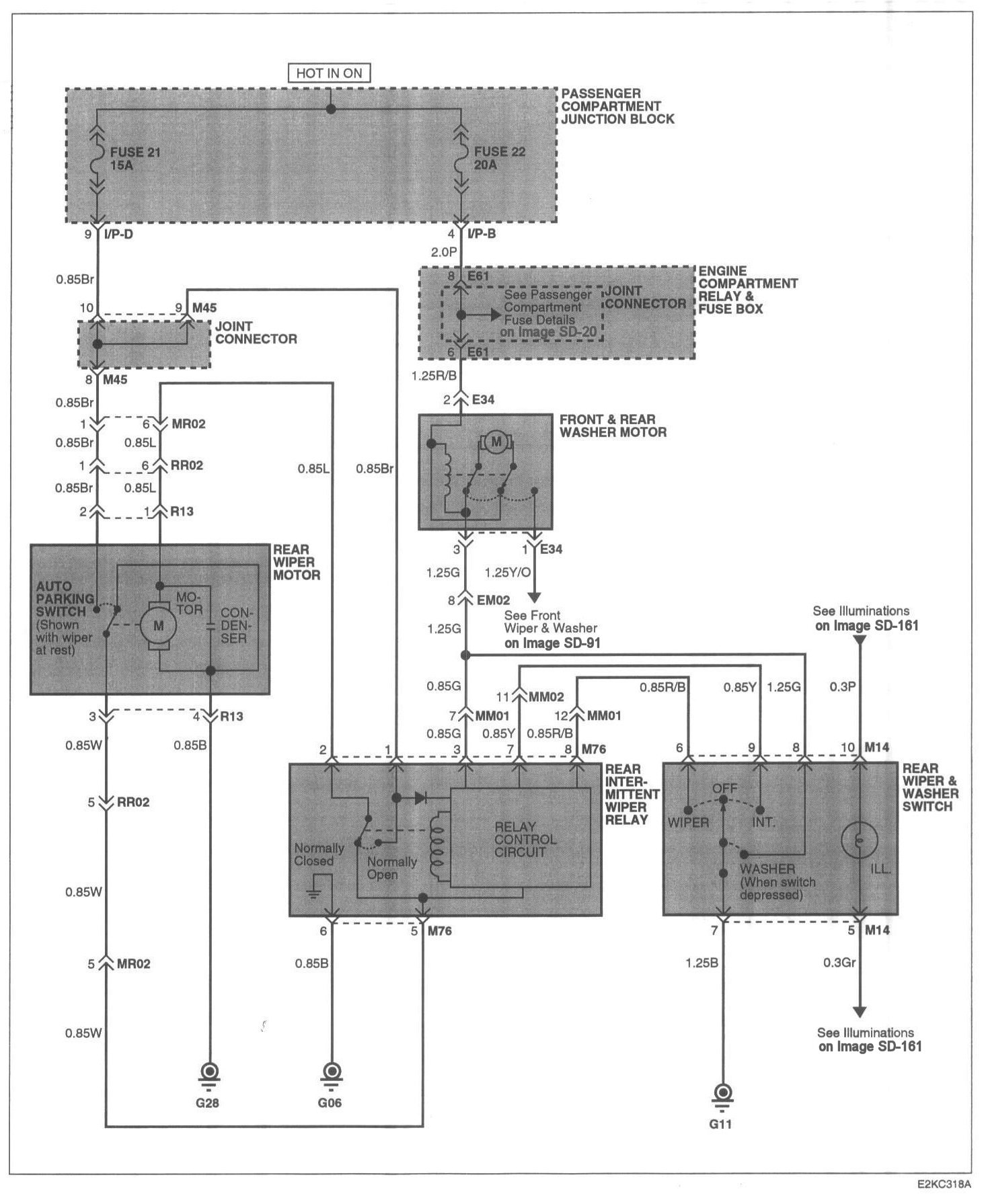

Image SD-94 Rear Wiper & Washer (1):
