Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Emission Control Systems
Emission Control Systems

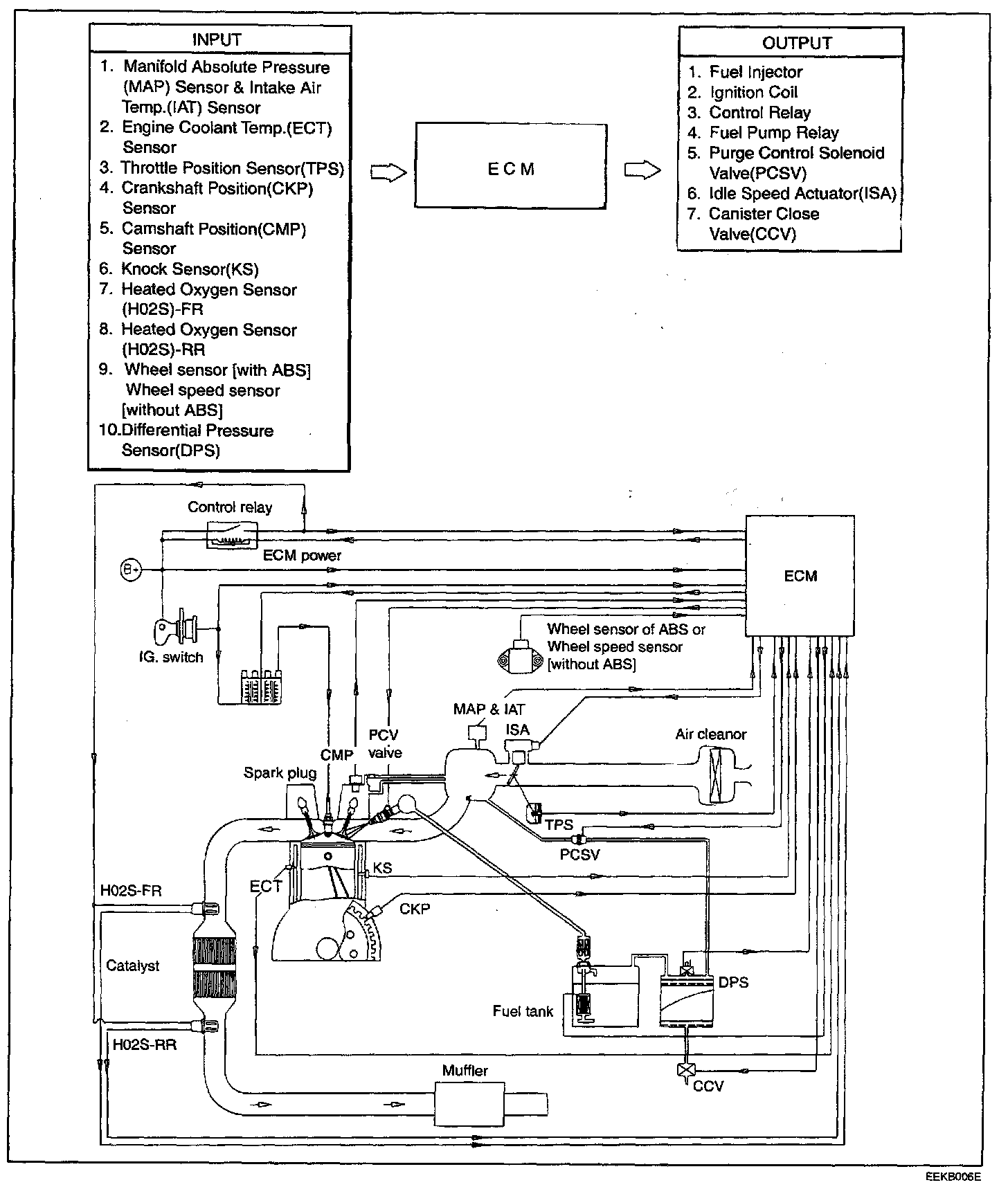

Schematic Drawing:
