Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

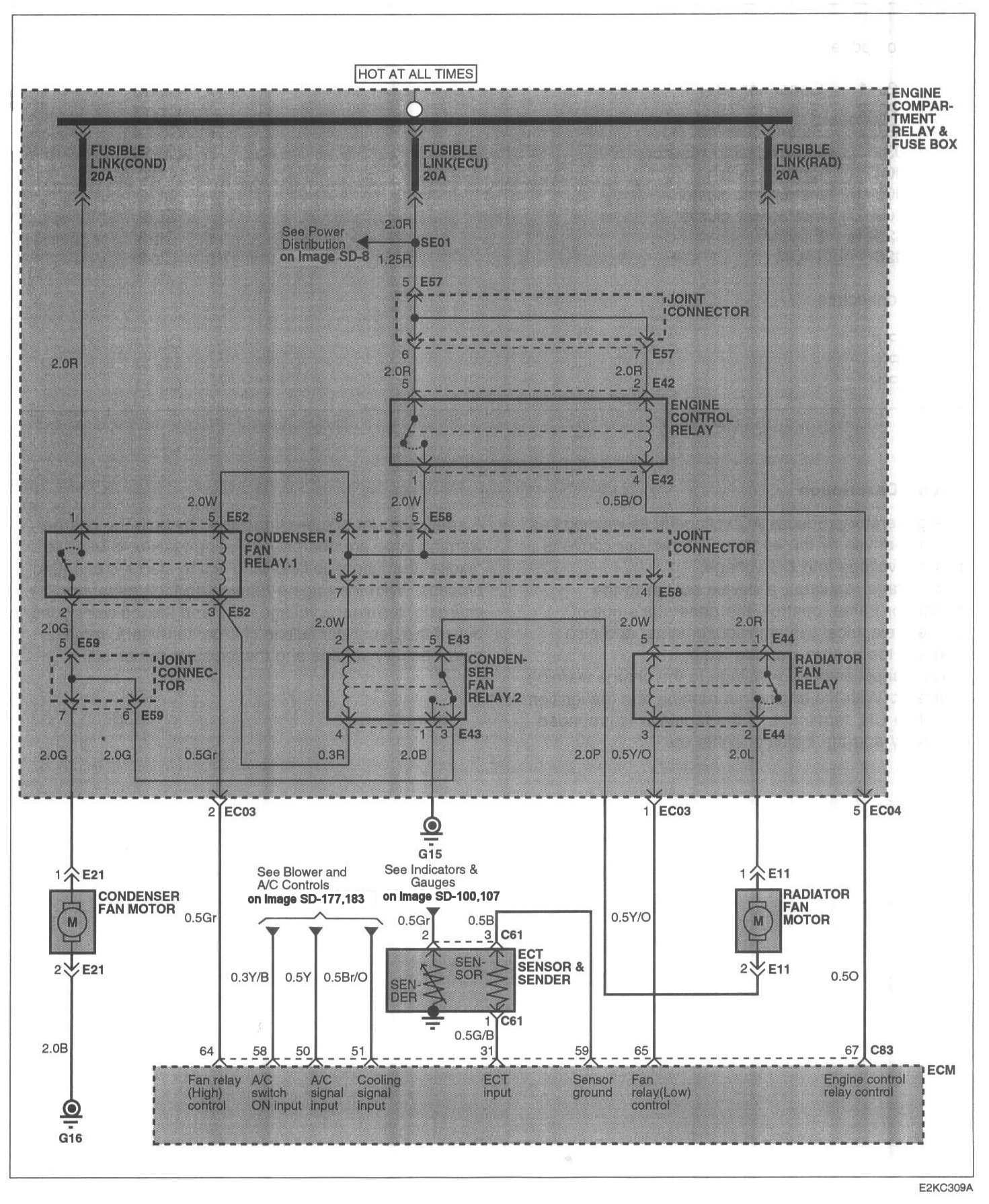

Image SD-58 Cooling System (1):
