Thermostat: Testing and Inspection

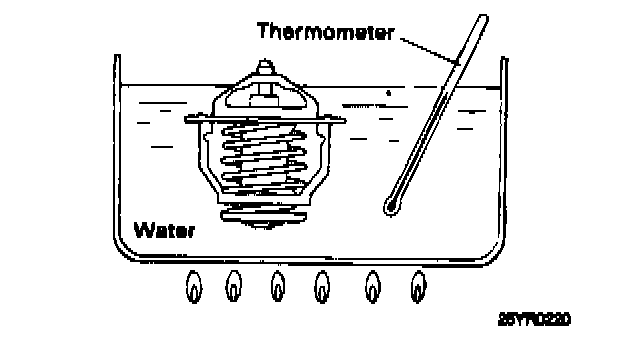

Immerse thermostat in hot coolant to check proper valve opening temperature Replace if necessary.
Valve opening temperature: 82° C (177° F)
Full opening temperature: 95° C (205° F)
Valve lift (at full open): 8.5 mm (0.33 inch) or more.
