Air Door Actuator / Motor: Locations

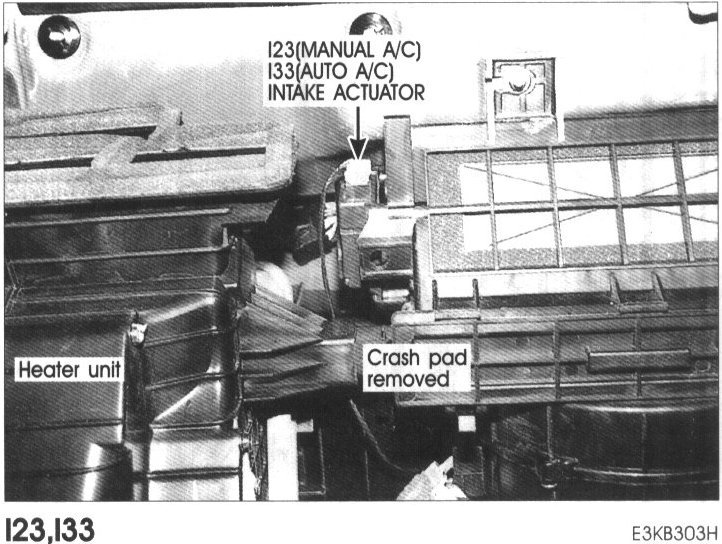

I23, I33 Intake Actuator:

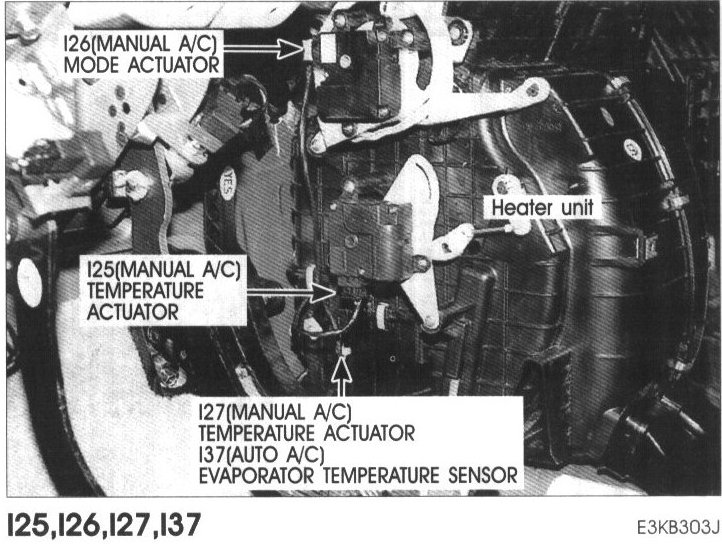

I25 Temperature Actuator, I26 Mode Actuator, I27 Thermostatic Switch, I37 Evaporator Temperature Sensor:



I35 Temperature Actuator, I36 Mode Actuator, I38 Water Temperature Sensor:
