Disassembly and Reassembly

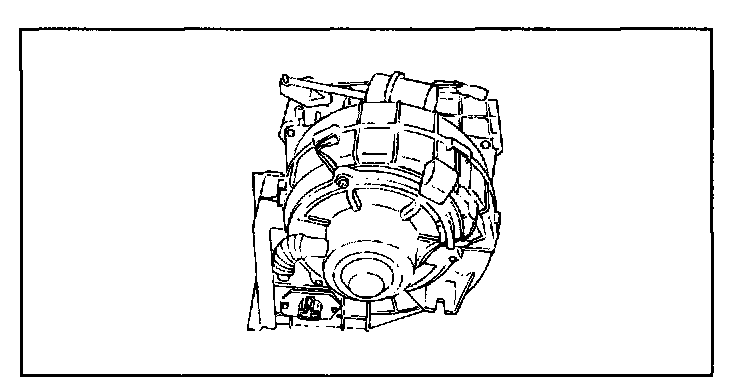

DISASSEMBLY
1. Disconnect the motor cooling tube.
2. Loosen the motor mounting screw.




3. Loosen the screw of the duct and the blower case.
4. Remove the duct.




5. Disconnect the case.
6. Remove the blower register.

REASSEMBLY
Reassembly is the reverse of removal.
