Removal and Installation

Blower Unit:

REMOVAL

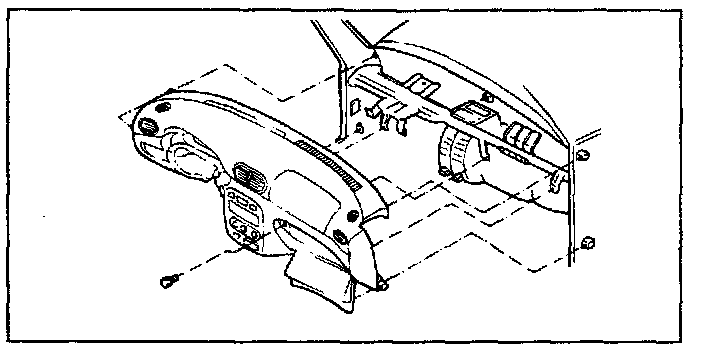

1. Remove the main crash pad.

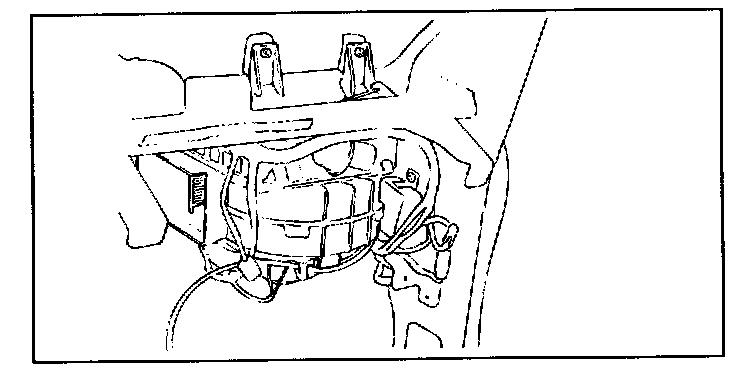

2. Disconnect the register and the blower motor connector.
3. Loosen the blower mounting nuts.




4. Remove the blower assembly.

INSTALLATION
Installation is the reverse of removal.
