Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Door Switch >> Testing and Inspection

Door Switch: Testing and Inspection

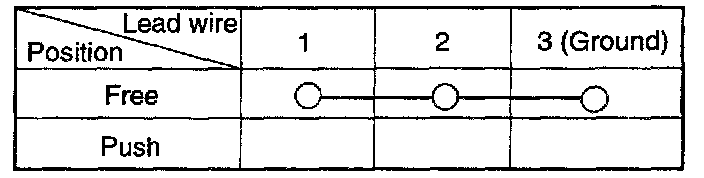

Front Door Switch:

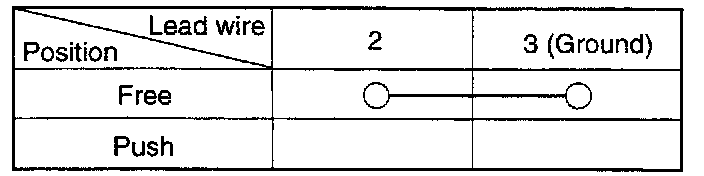

Rear Door Switch:

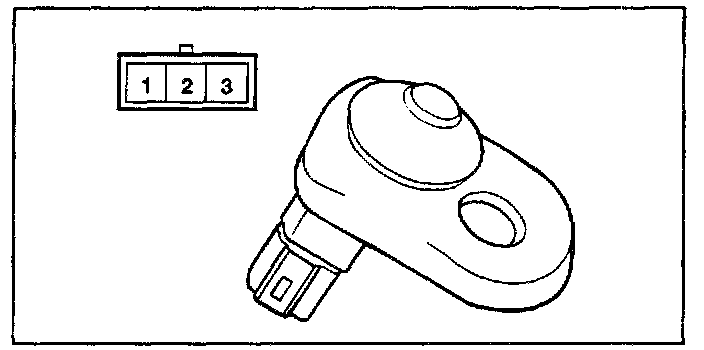

DOOR SWITCH
Remove the door switch and check for continuity between the terminals.
