Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

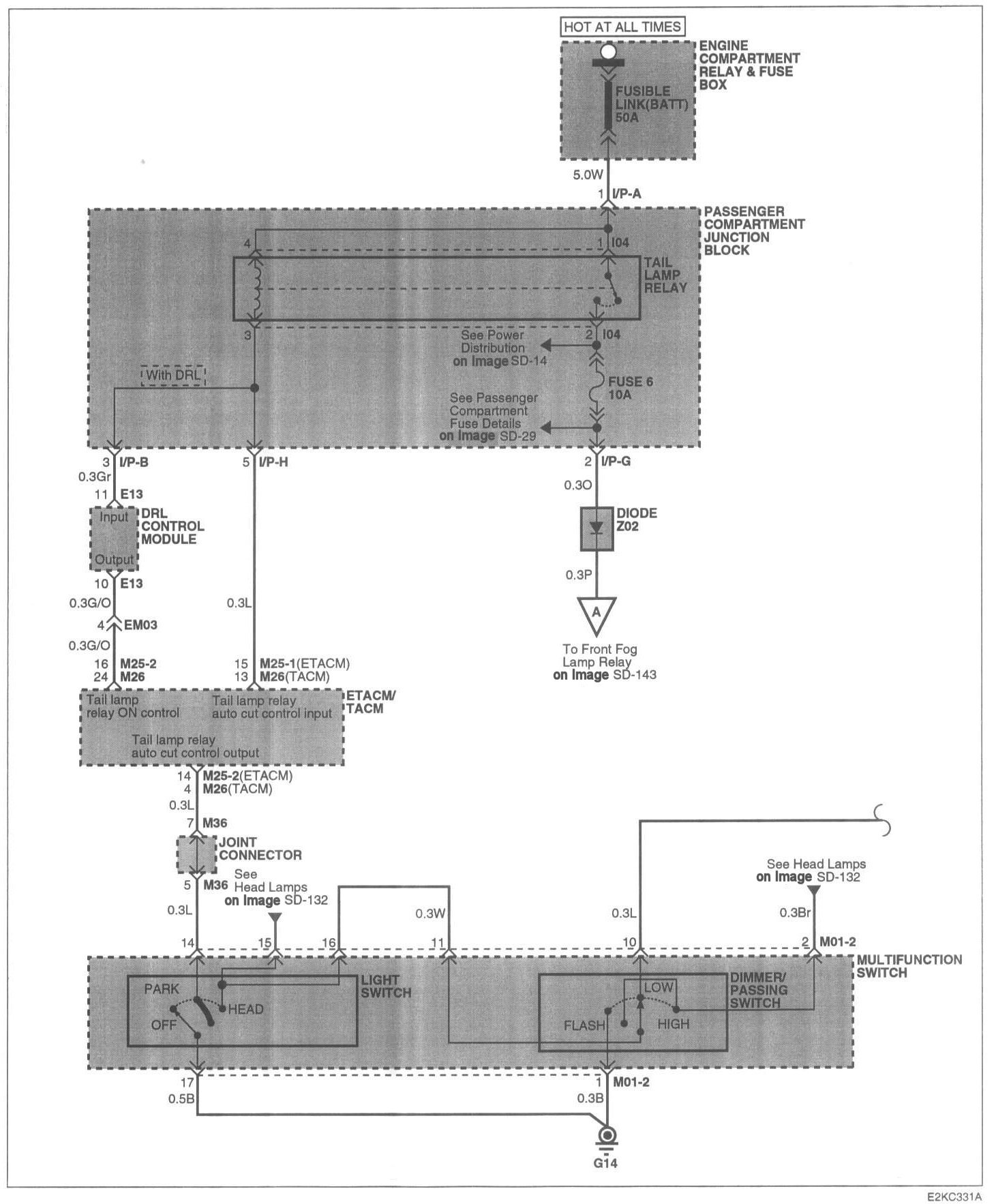

Image SD-142 Front Fog Lamps (1):

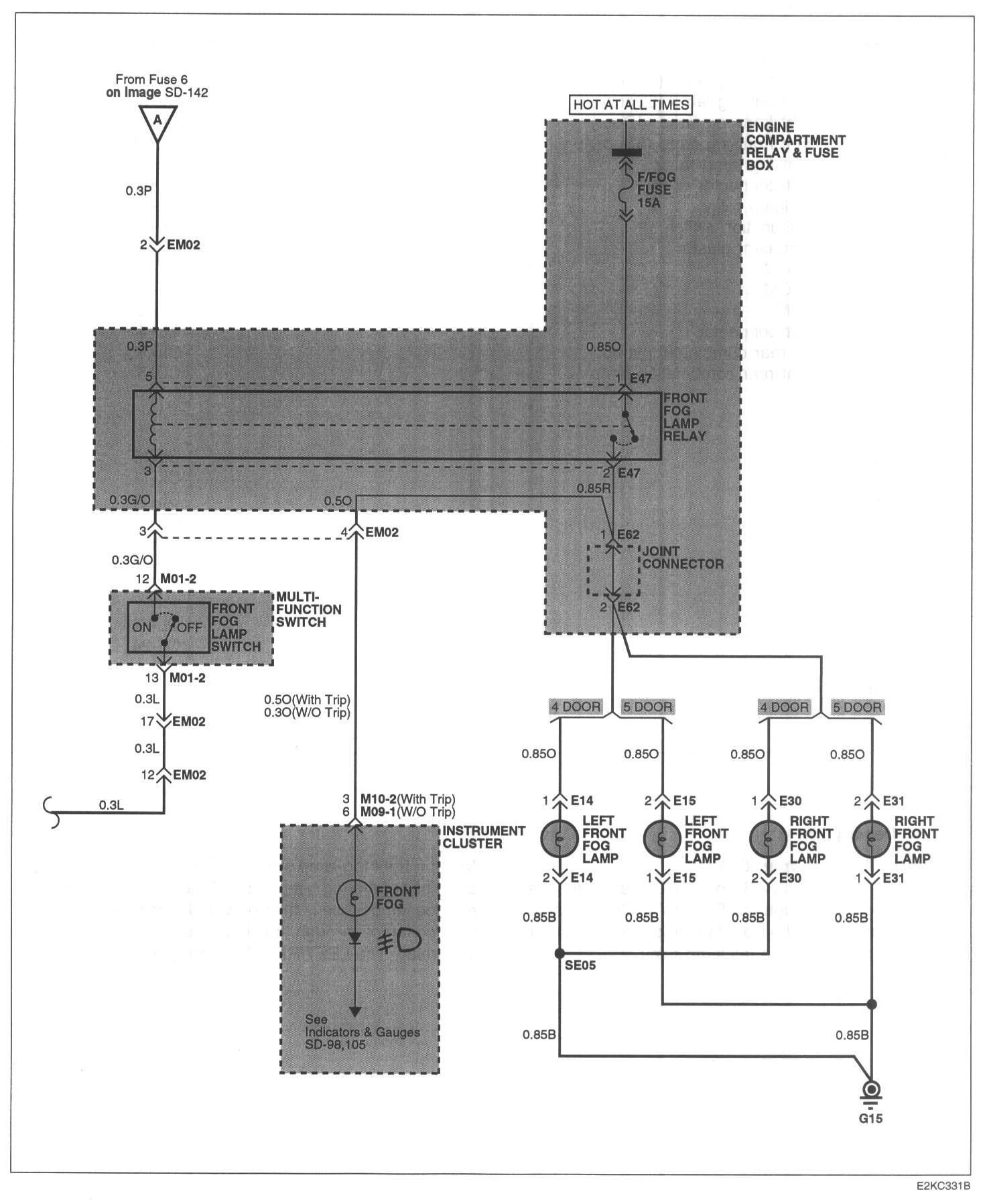

Image SD-143 Front Fog Lamps (2):
