Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

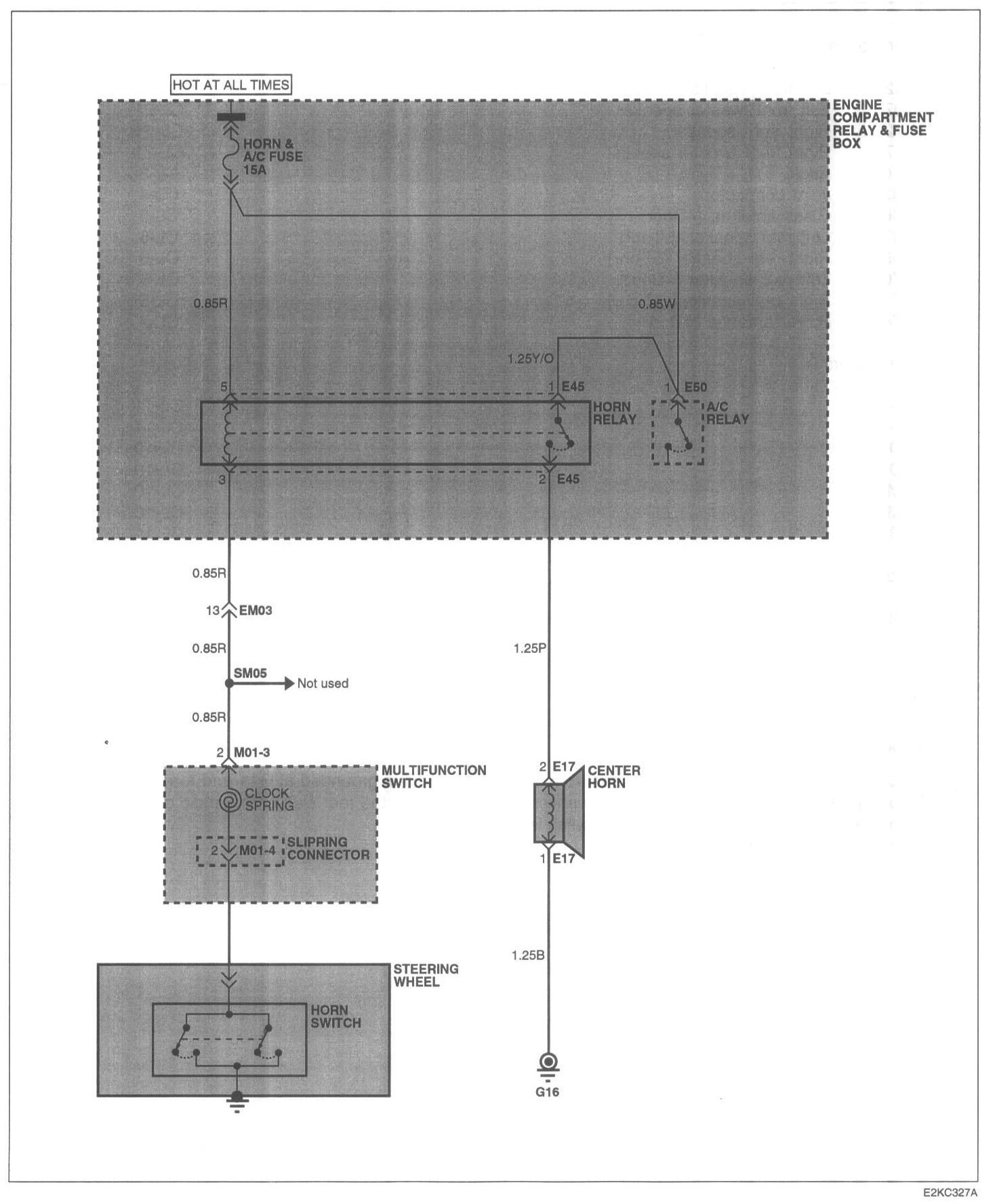

Image SD-130 Horn (1):
