Fuse and Fusible Link Locations

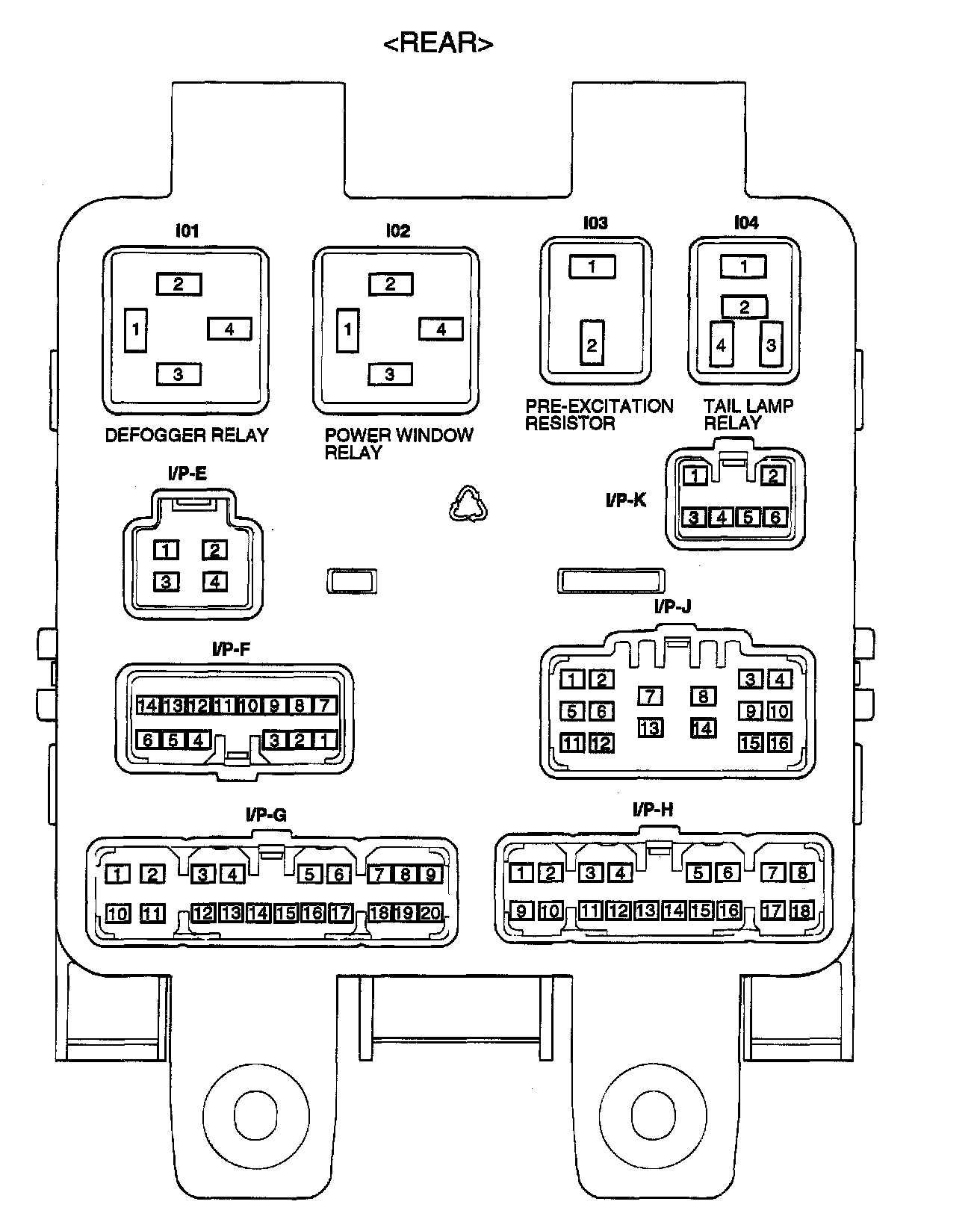

Passenger Compartment Relay Box: Layout:

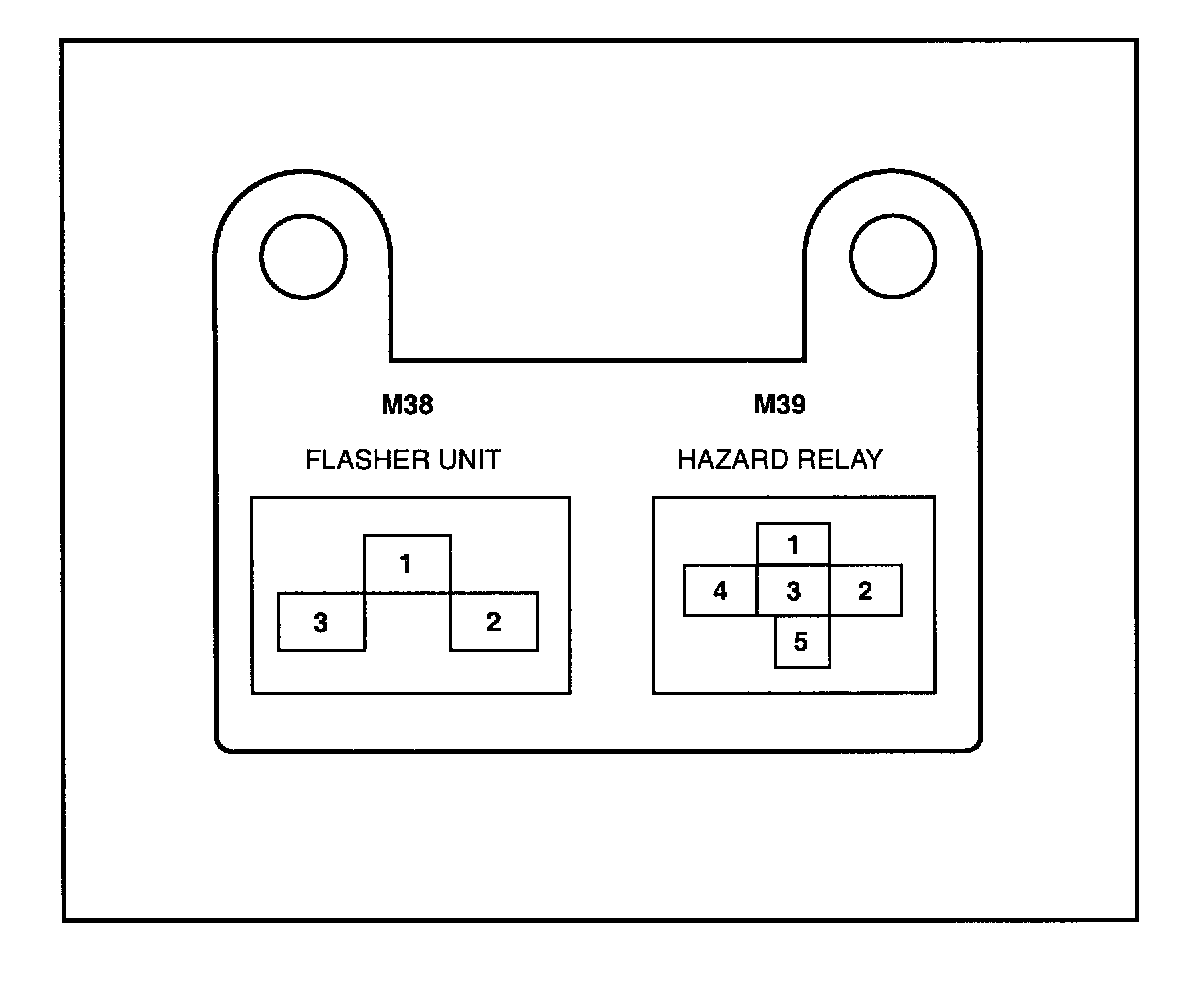

Passenger Compartment Junction Block Layout:



Circuit:



Layout:



Engine Compartment Relay And Fuse Box Layout:
