Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

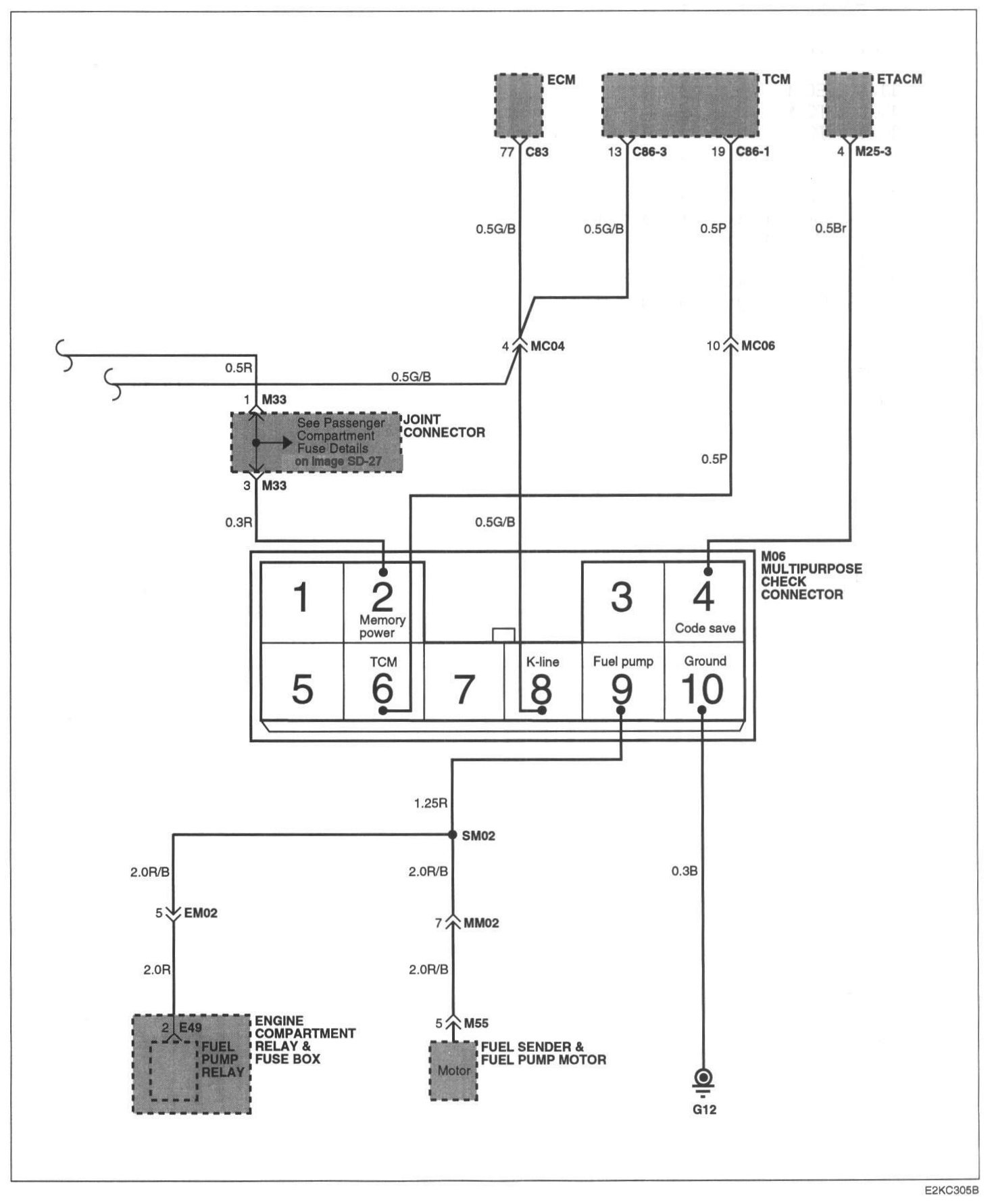

Image SD-46 Data Link Details (1):

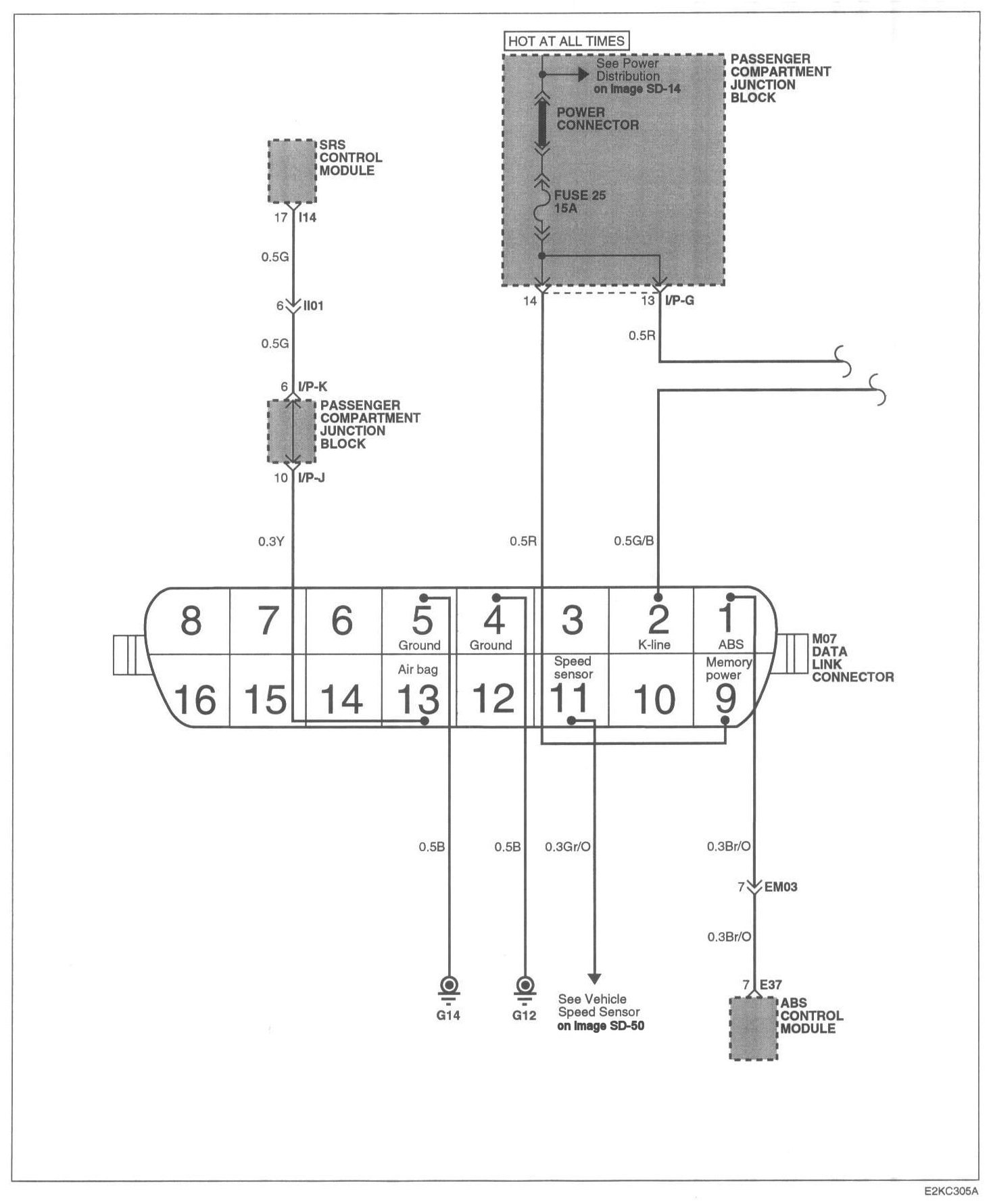

Image SD-47 Data Link Details (2):
