Engine Control Module: Testing and Inspection

ENGINE CONTROL MODULE (ECM)-POWER GROUND
Check the ground condition of the engine control module.

Circuit Diagram:

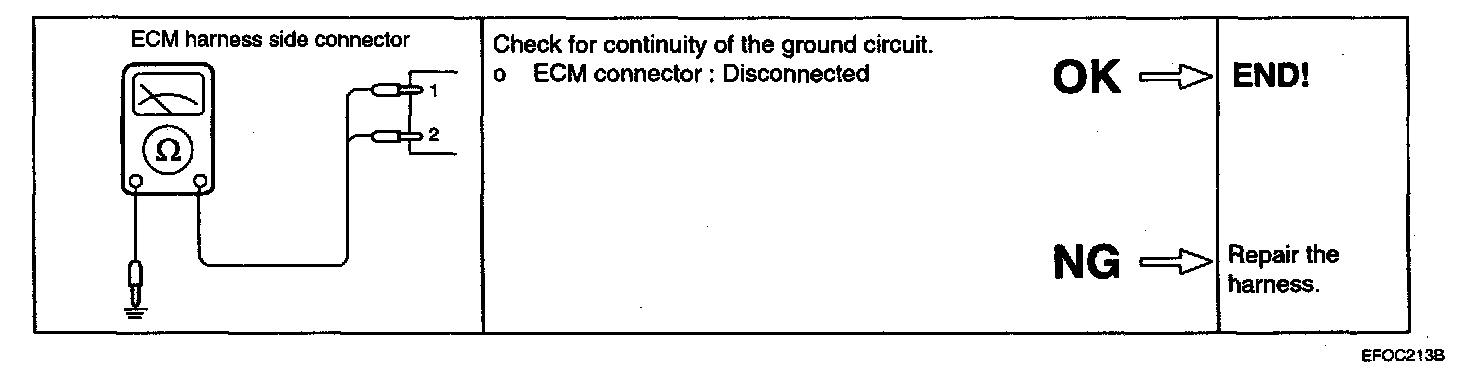

Harness Inspection Procedure:
