Circuit Test

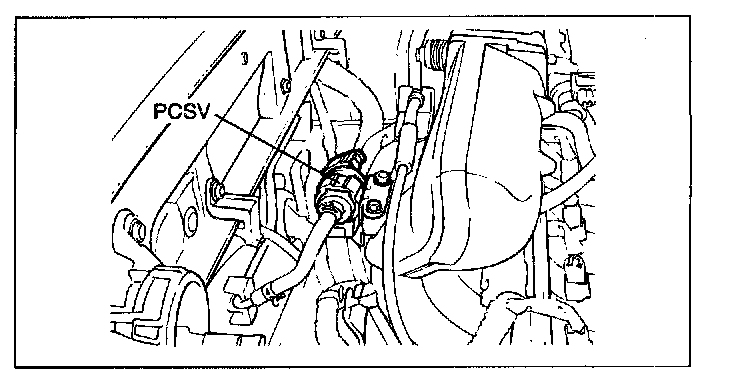

EVAPORATIVE EMISSION CANISTER PURGE SOLENOID VALVE
The evaporative emission canister purge solenoid valve is a duty control type, which controls the flow of purge air from the evaporative emission canister.

Circuit Diagram:

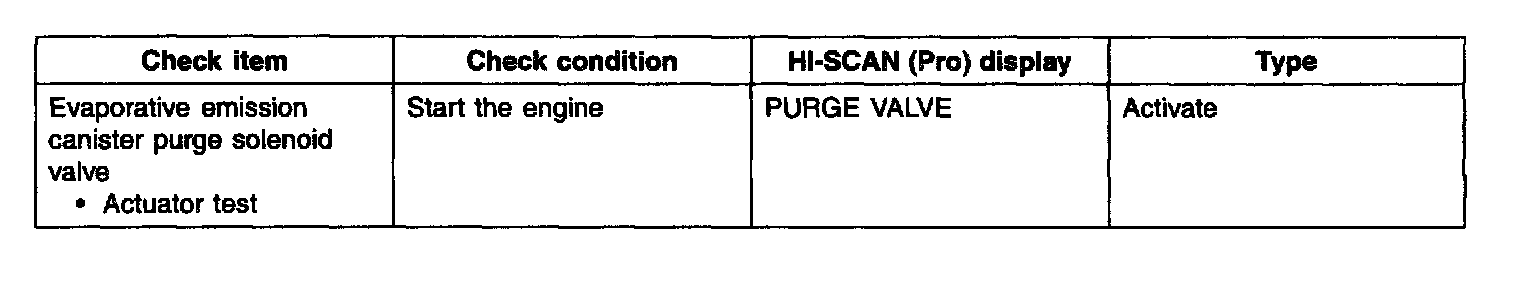

Using Hi-Scan (PRO):

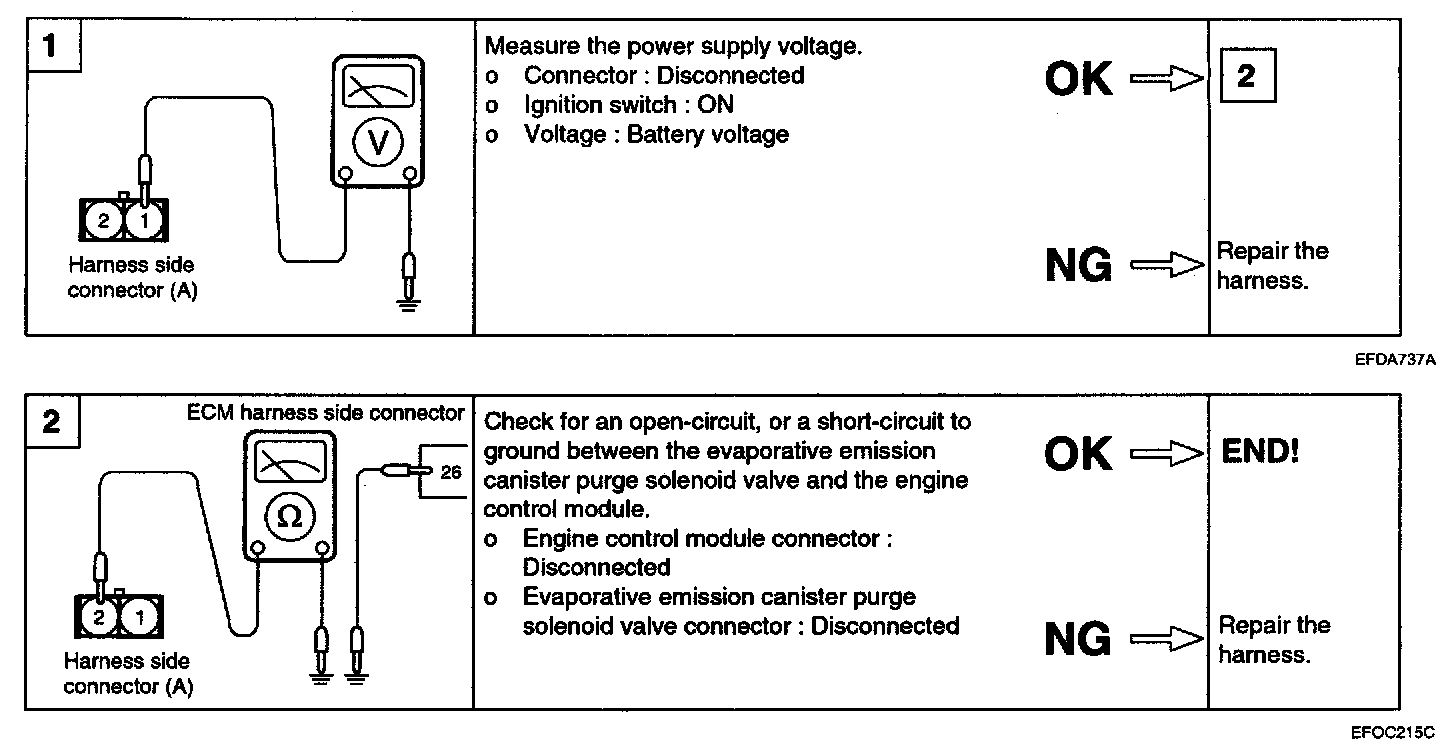

Harness Inspection Procedures:

ACTUATOR INSPECTION
Refer to Evaporative Emission System.
