Component Locations

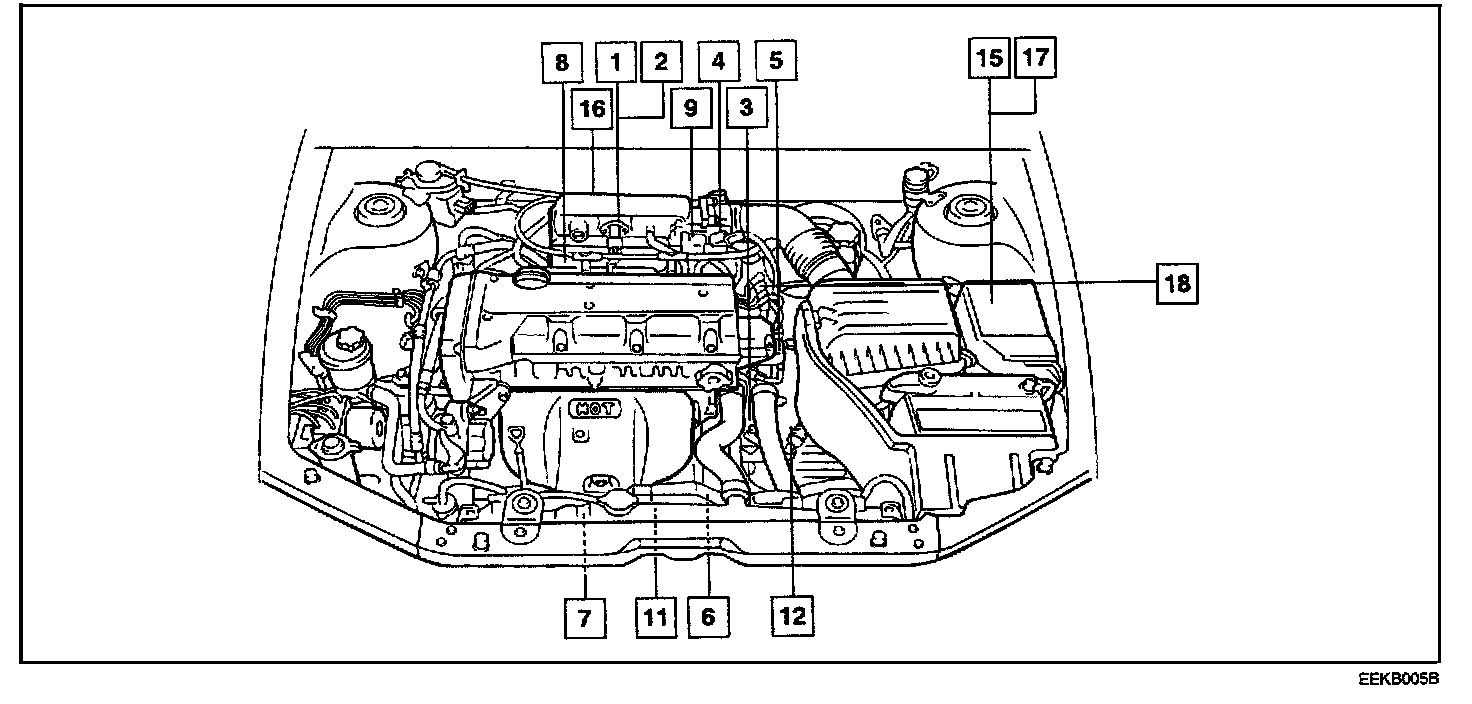

Emission Controls Location Part 1:

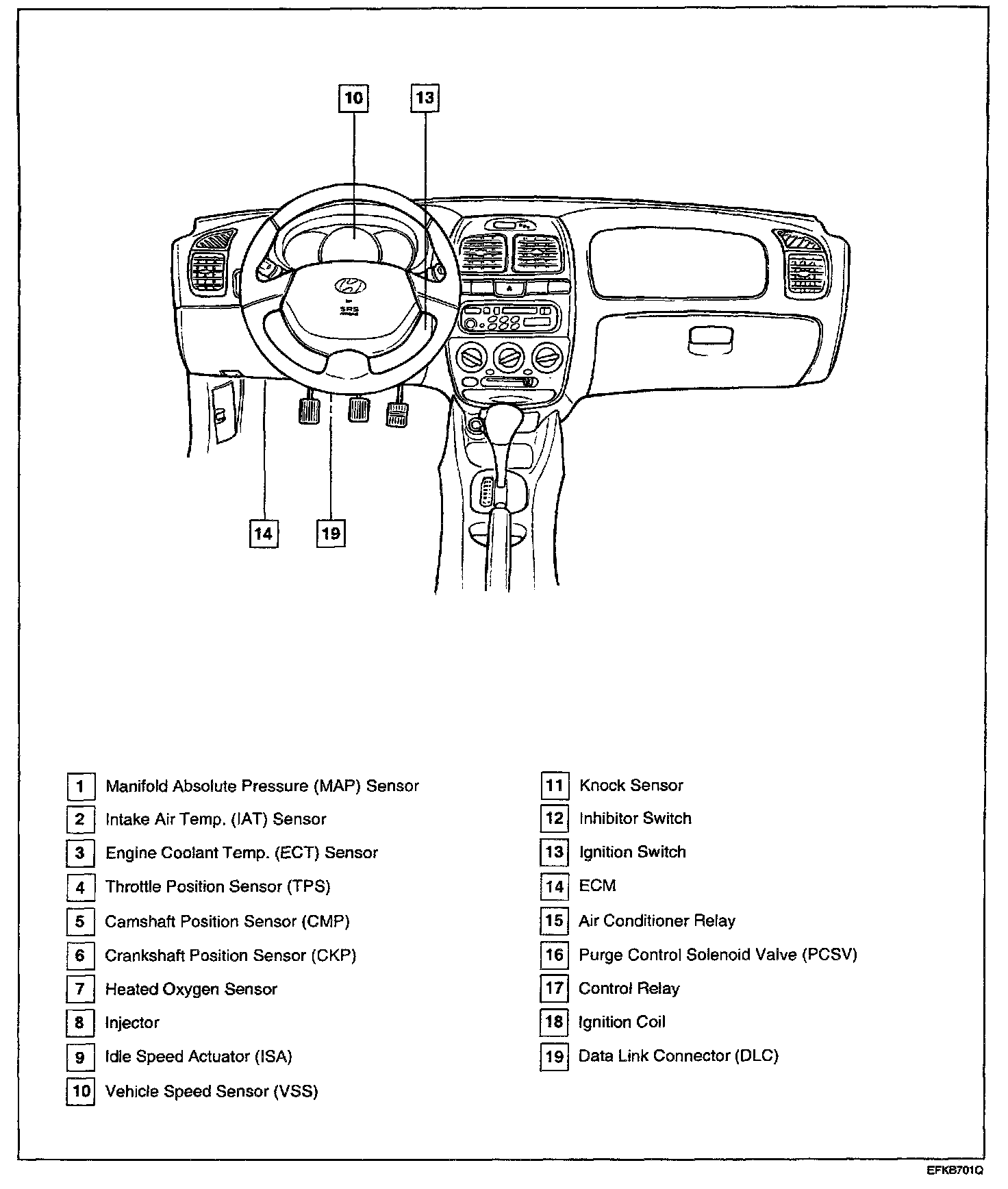

Emission Controls Location Part 2:

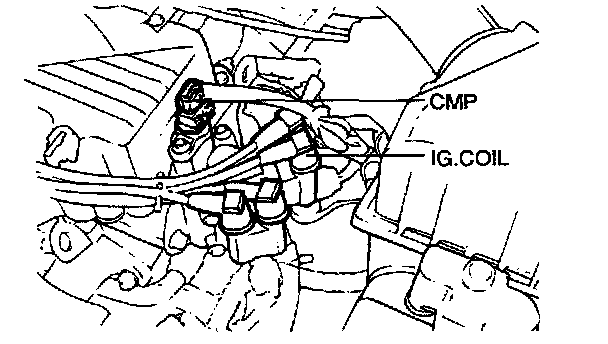

5. Camshaft Position Sensor (CMP), 18. Ignition Coil:



Location Of MFI Components:

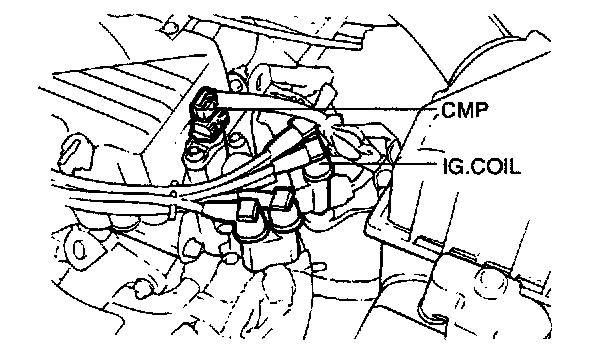

5. Camshaft Position Sensor (CMP), 18. Ignition Coil:
