Fuel Pressure Release: Service and Repair




1. Reduce the internal pressure of the fuel lines and hoses by completing the following operations.
- After removing the rear seat cushion, disconnect the fuel pump harness.
- Start the engine. Allow it to stop by itself, then turn the ignition switch OFF.

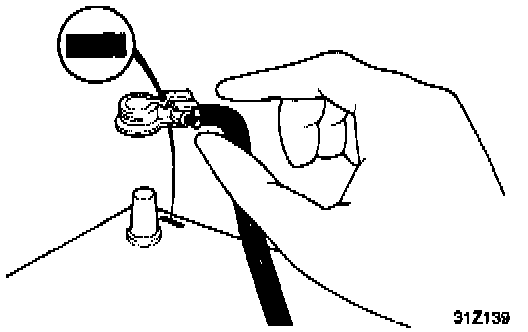

- Disconnect the battery negative (-) terminal.
- Connect the fuel pump harness connector.
