Fuel Gauge Sender: Service and Repair
FUEL SENDER REPLACEMENT
1.
Remove the fuel tank cap to lower the fuel tank's internal pressure.
2.

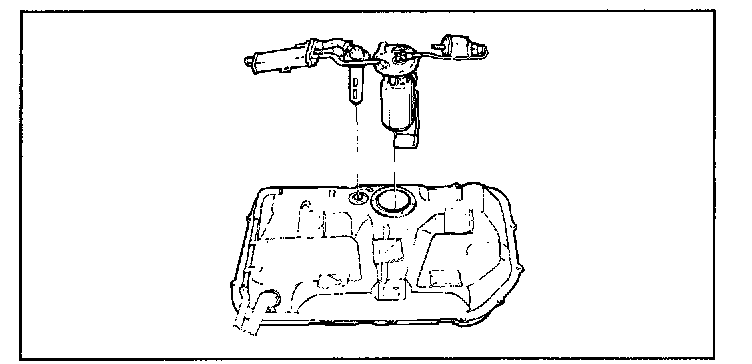

Remove the fuel sender installation screws, then remove the fuel sender from the fuel tank.
