Throttle Body: Service and Repair

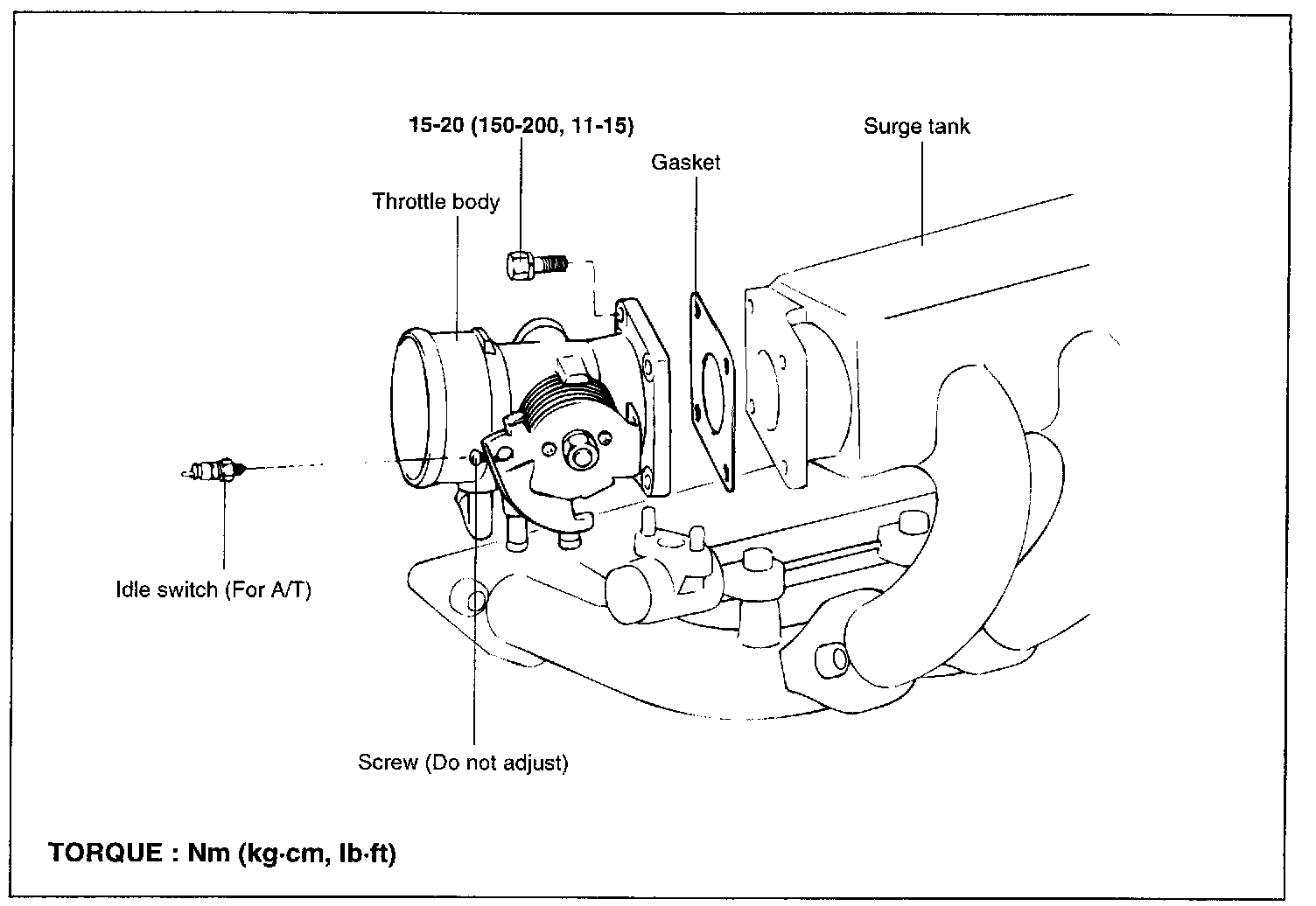

REMOVAL

CAUTION: The throttle valve must not be removed.

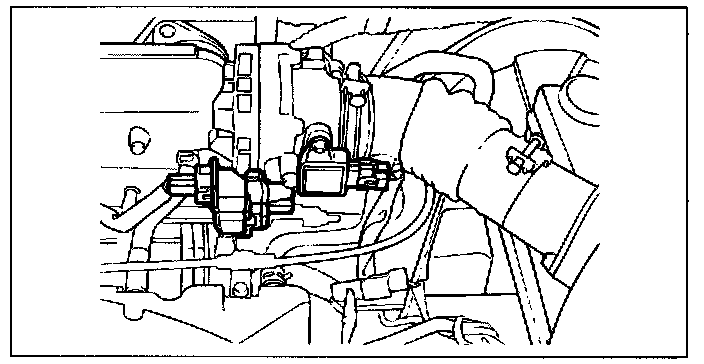

Remove the throttle position sensor.






NOTE: Except when necessary for replacement, the throttle position sensor must not be removed.






CAUTION

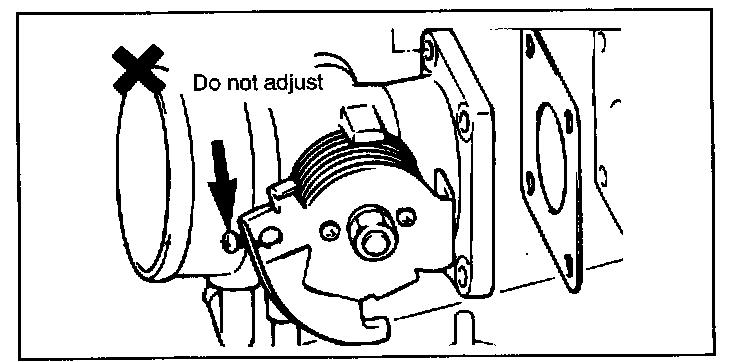

1. Throttle valve set screw was adjusted in the production line with the air volume (0.516 ± 5% g/sec) during idling. So please DO NOT ADJUST IT voluntarily.
2. When the idle rpm is out of specification, check the relevant sensors and their input or output value first.
3. The throttle body does not need to be cleaned because carbon in throttle body does not affect the system's operation at all.
