Brake Switch (Cruise Control): Testing and Inspection

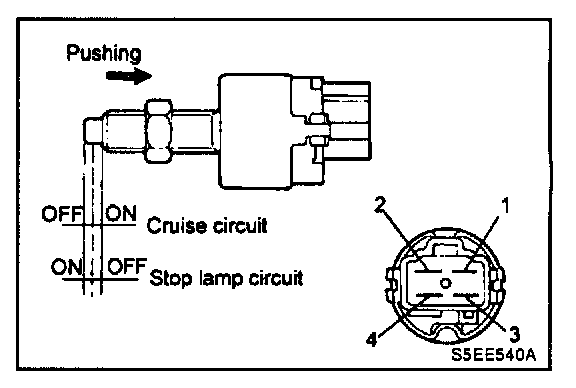

STOP LAMP SWITCH

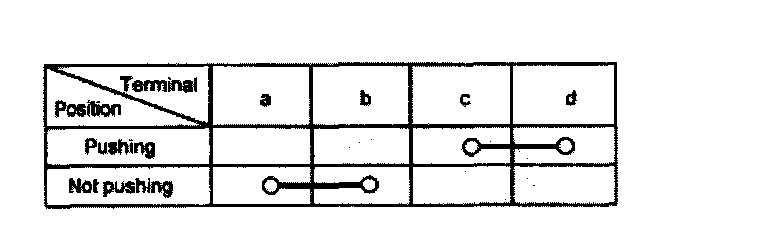

After operating the stop lamp switch, check for continuity between the terminals.
