A - For Elantra Vehicles With ABS

CAUTION:
Wear eye protection when performing this procedure.

1. Verify the vehicle is affected by identifying the vehicle production date range and VIN.





NOTE:
Apply this procedure to both left and right sides at the rear brake tube contact areas.

2. Raise the vehicle.





3. Locate the rear brake tube contact areas with the steering gear box mounting brackets.

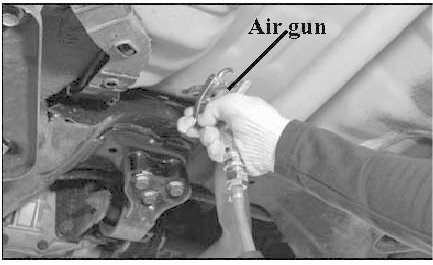

4. Clean the rear brake tube contact areas using shop air and a rag.

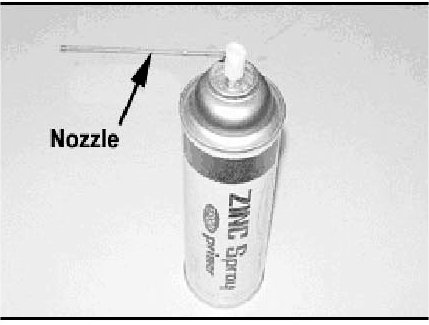

5. Before applying the surface treatment (zinc primer), insert the nozzle into the spray tip.

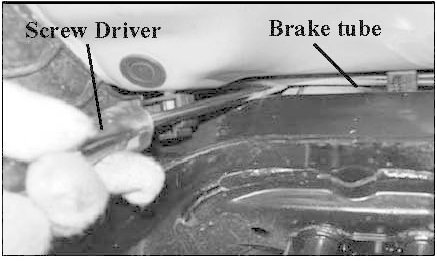

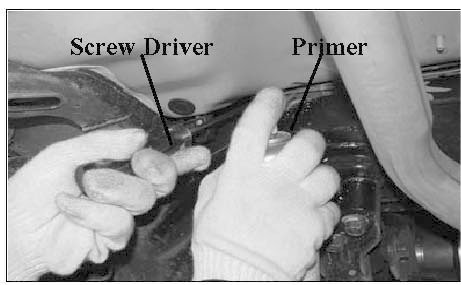

6. Make a gap between the rear brake tubes and the steering gear box mounting bracket at the contact areas by gently prying with a screwdriver as shown.

NOTE:
If there is not a sufficient gap between the rear brake tubes and the steering gear box mounting bracket, the primer may not cover all of the contact area.





7. Apply the surface treatment on the steering gear box mounting bracket and the rear brake tube contact area evenly as shown (apply 3 light squirts).





NOTE:
Keep the gap open for at least 3-4 minutes or until the surface treatment is dry.

Repeat application of the surface treatment on the other side of the vehicle at the rear brake tube contact area with the steering gear box mounting bracket.





8. Before applying the anti-corrosion wax (CT-21), insert the nozzle into the spray tip.

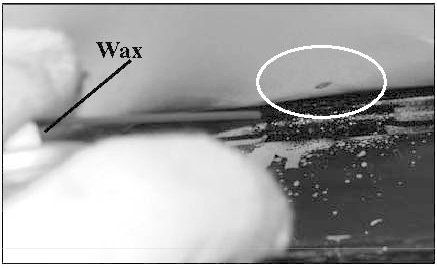

9. Evenly apply anti-corrosion wax on the steering gear box mounting bracket and the rear brake tube contact area (apply 5 to 6 light squirts).

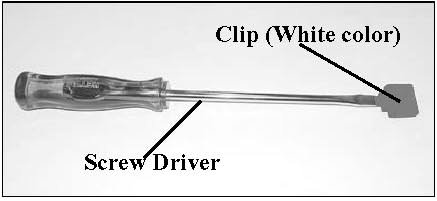

10. Prepare the brake tube clip as shown.

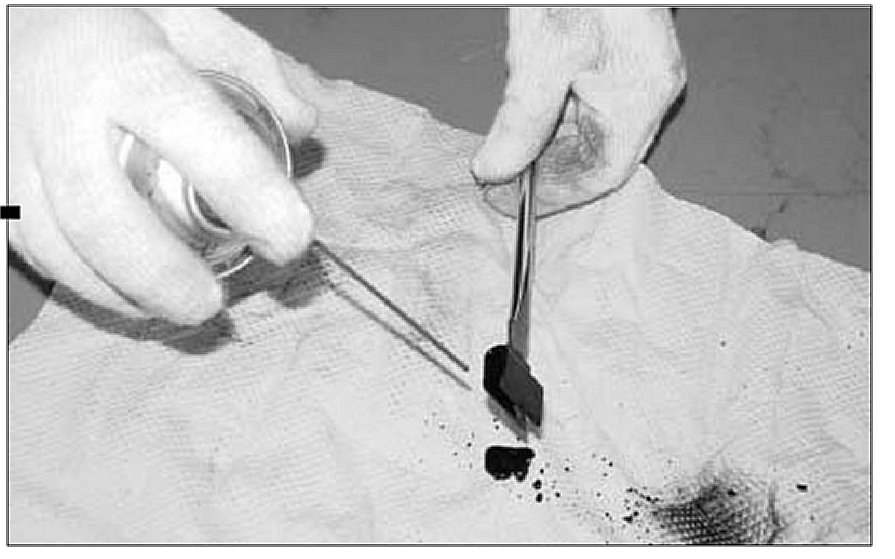

11. Before installing the brake tube clip, apply anti-corrosion wax inside the clip as shown.

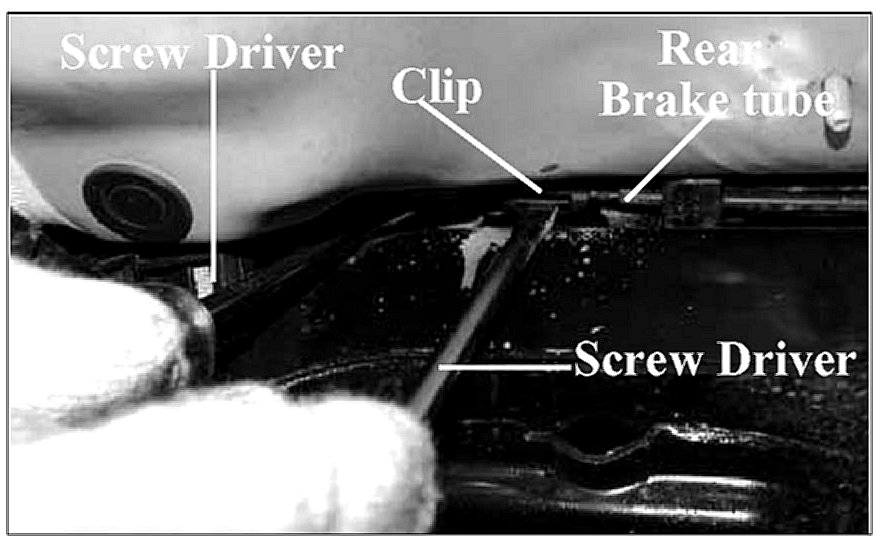

12. Make a gap between the rear brake tubes and the steering gear box mounting bracket using a flathead screwdriver.

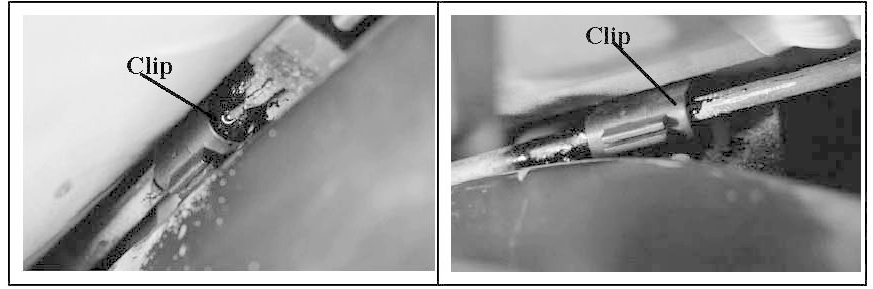

13. Install the brake tube clip on the rear brake tubes where the surface treatment and anti-corrosion wax were applied.





NOTE:

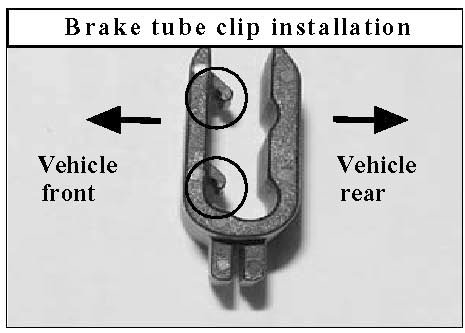

The brake tube clip is directional. The locking tabs inside the clip should face toward the vehicle front.





Repeat installation of the brake tube clip on the other side of the vehicle.

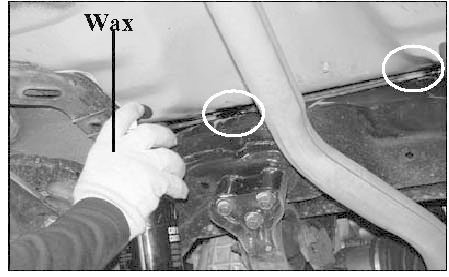

14. Apply the anti-corrosion wax on the rear brake tubes and brake tube clips on both sides.

15. Lower the vehicle.
