Positive Crankcase Ventilation Valve
Positive Crankcase Ventilation Valve

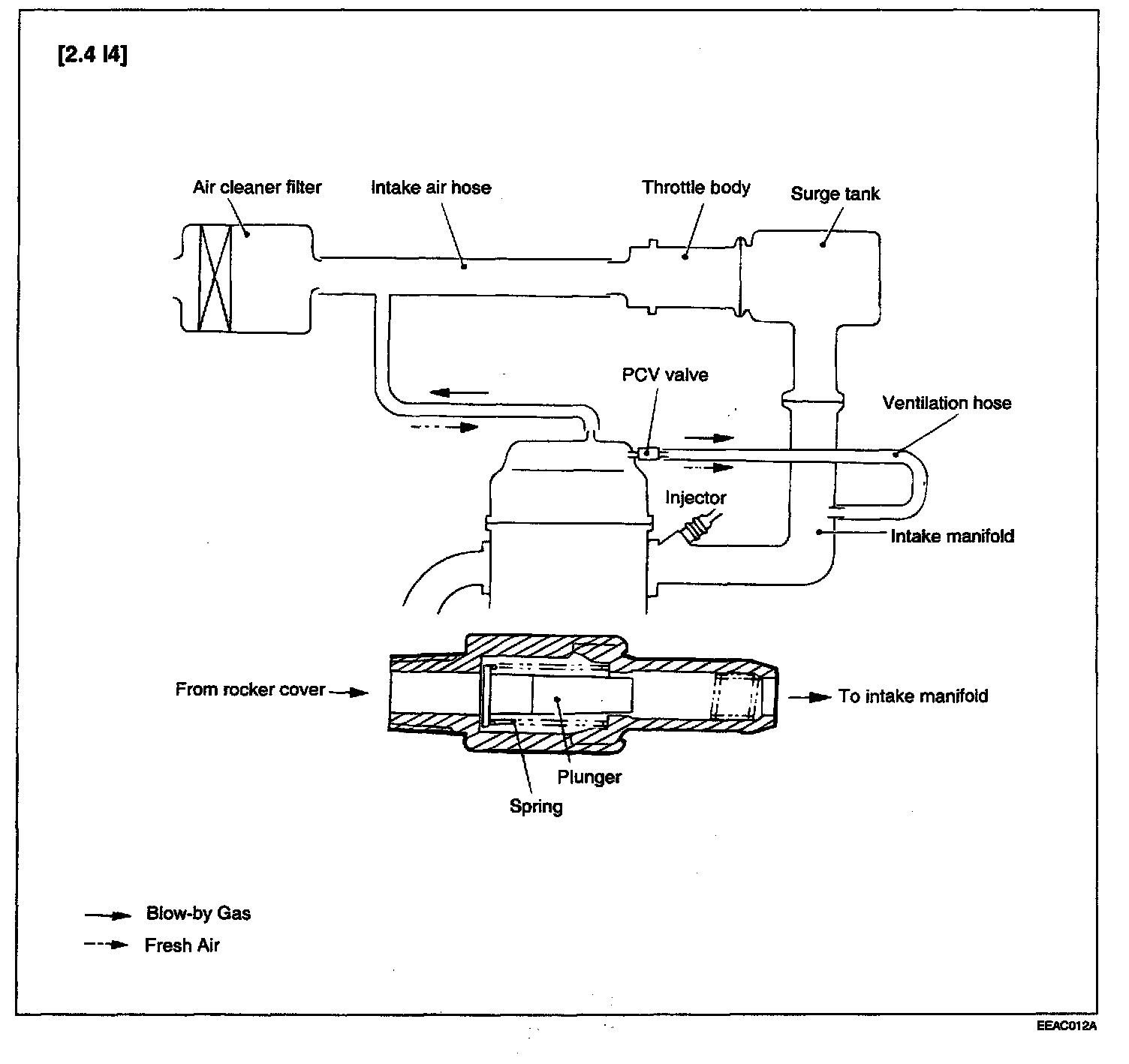

Positive Crankcase Ventilation (PCV) Valve [2.4 L4]:
