Rear Assist Arm Replacement

REAR ASSIST ARM REPLACEMENT

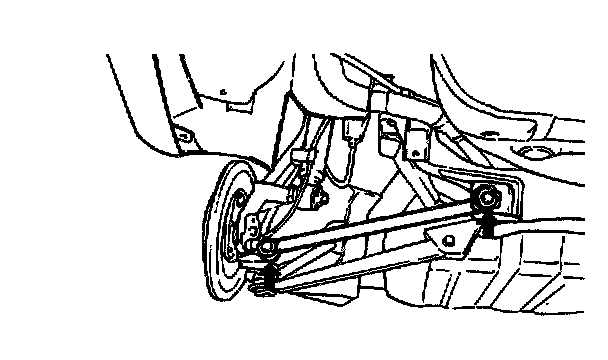

1. Remove the assist arm assembly.

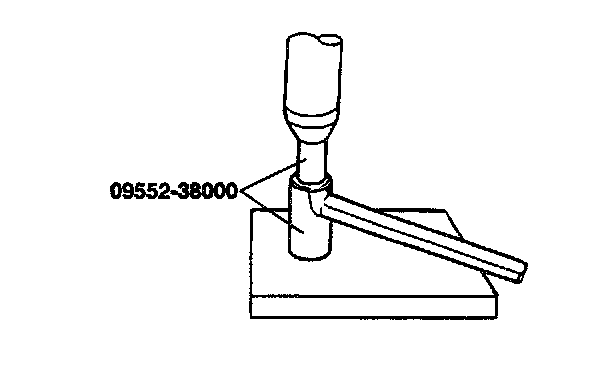

2. Using the special tool (09552-38000), replace the bushing.

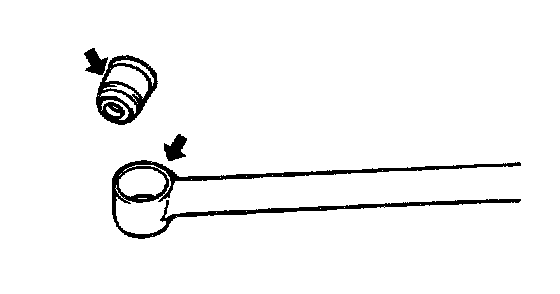

3. When press-fitting, apply soap solution to the bushing and inside the assist arm.
4. Install the assist arm assembly
