Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0506
P0506
****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****
P0506

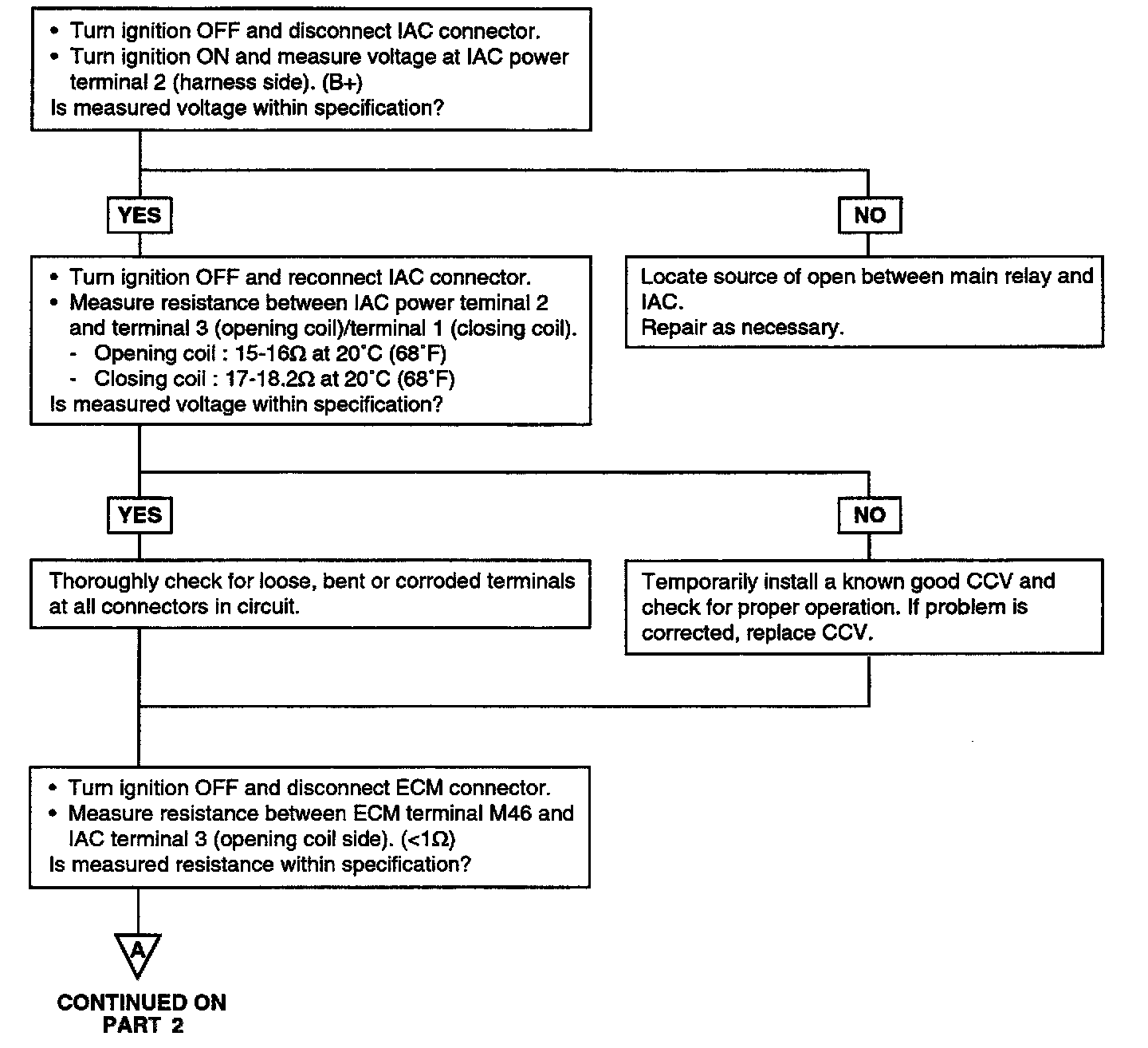

Test Procedure Part 1:

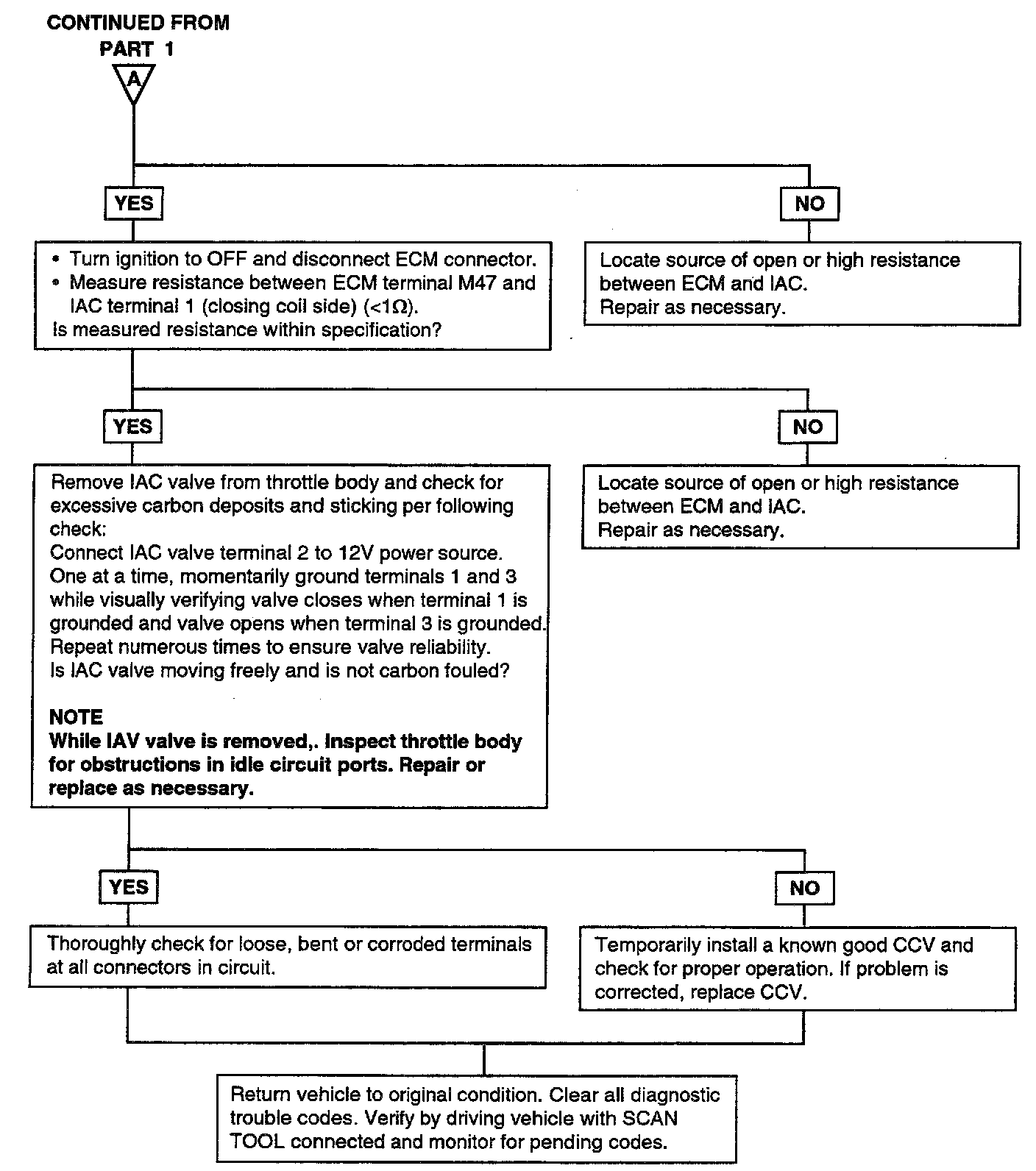

Test Procedure Part 2:
