Home >> Hyundai >> 2002 >> Sonata LX V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0507

P0507

****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****








P0507

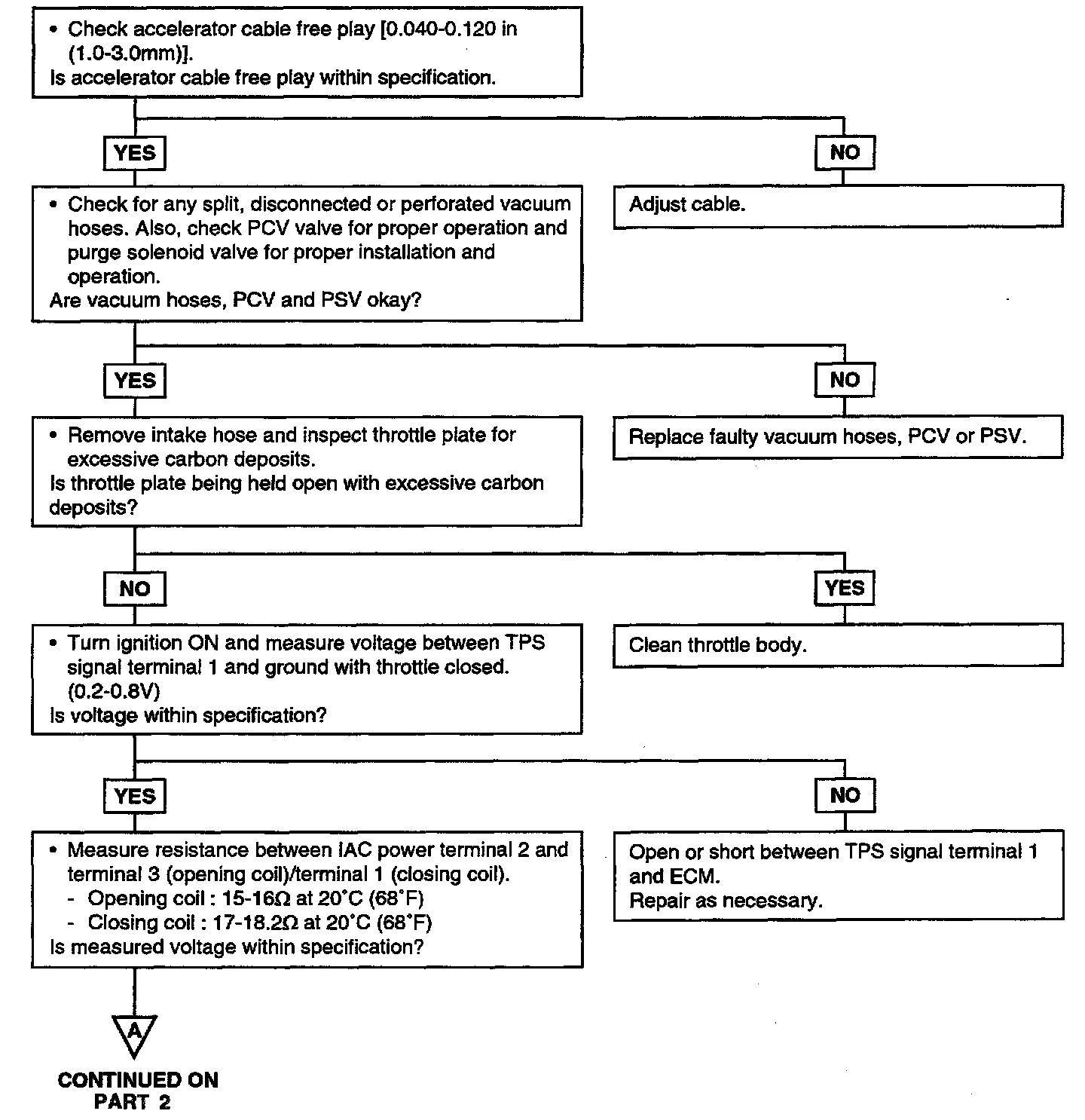

Test Procedure Part 1:

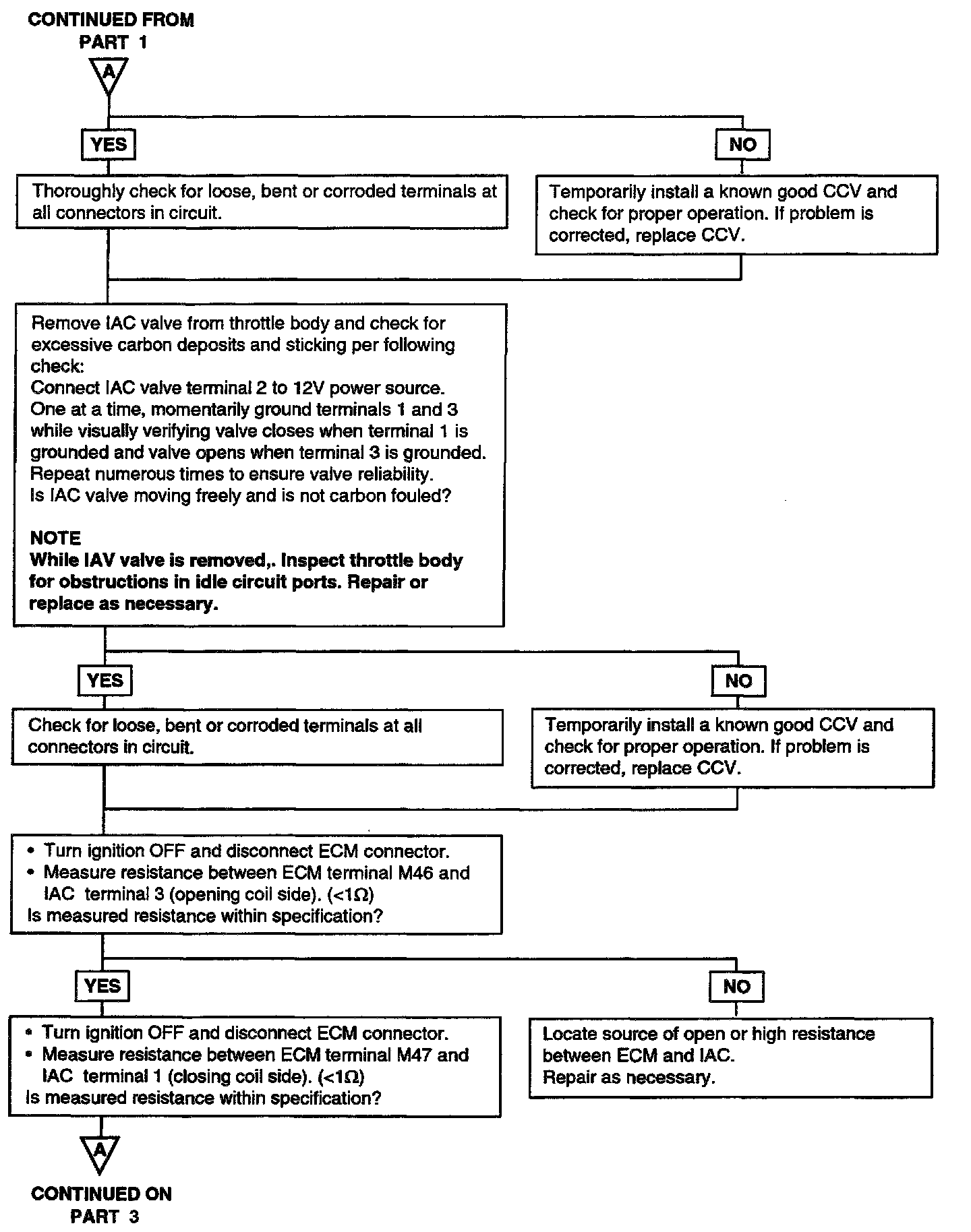

Test Procedure Part 2:

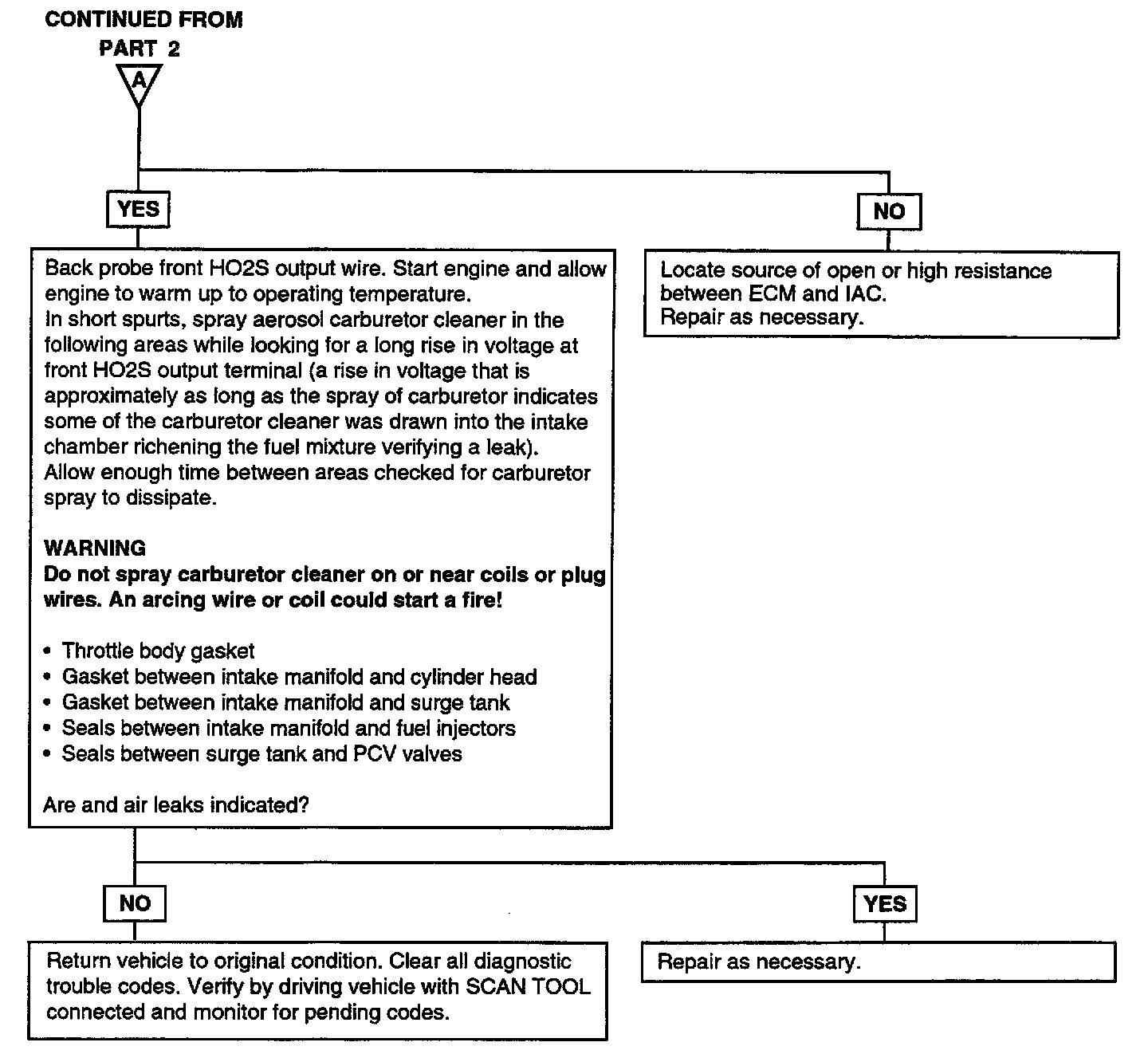

Test Procedure Part 3:
