A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1506
P1506

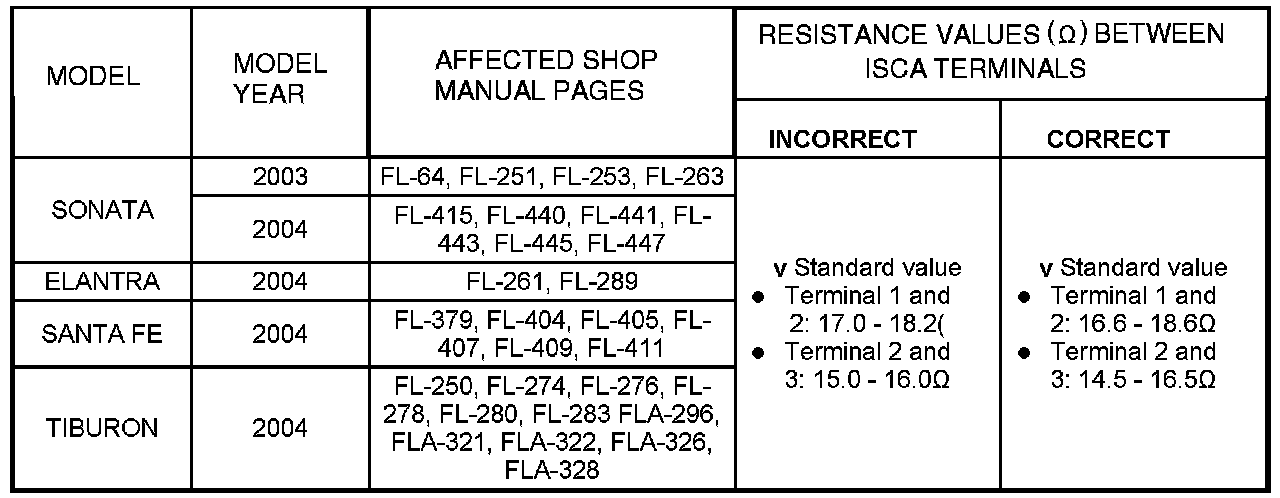

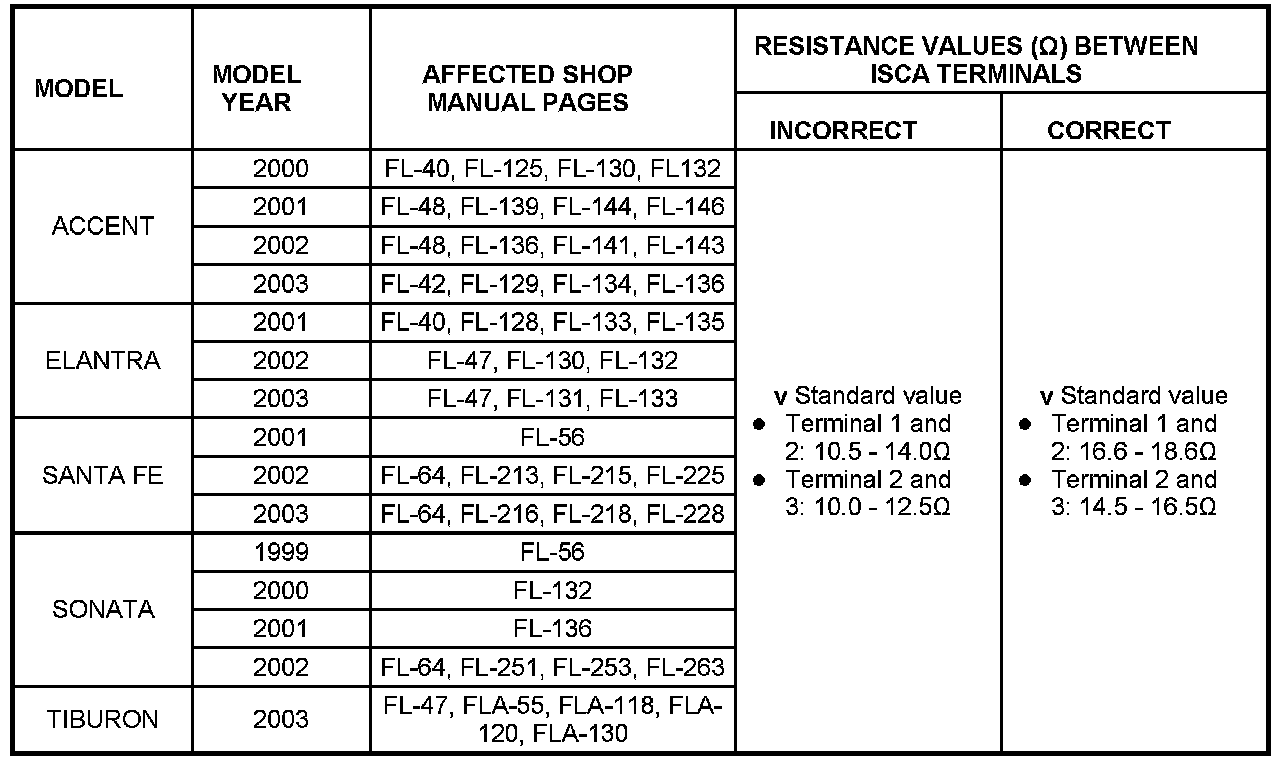

****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****
Test Procedure:
P1506
